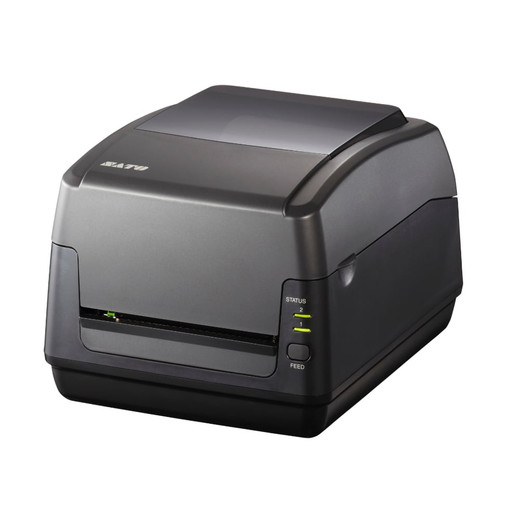

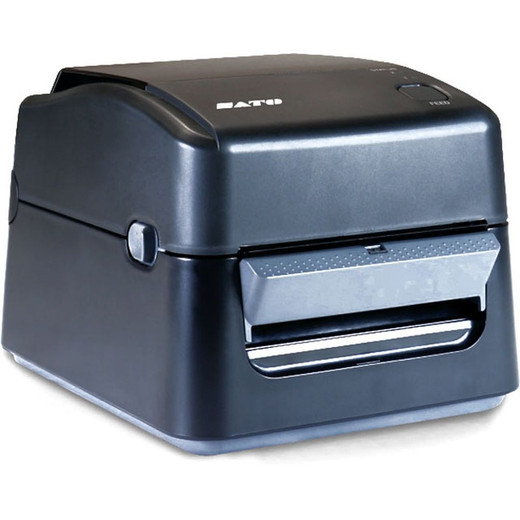

SATO WT312-403DN-EX1-2 203dpi Desktop Thermal Printer

SATO WT312-403DN-EX1-2 203dpi Desktop Thermal Printer

The SATO WT312-403DN-EX1-2 is a compact desktop thermal printer built for high-volume enterprise labeling operations. Part of the WS4 series, this versatile printer delivers consistent 203 dpi output at 6 inches per second, making it ideal for organizations requiring reliable, production-grade barcode and label printing in shipping, manufacturing, and warehouse environments. Its dual thermal printing modes and robust connectivity options provide the flexibility needed for demanding B2B applications.

Key Features

• 203 dpi print resolution at 6 ips for crisp barcodes, text, and graphics
• Direct thermal and thermal transfer printing modes for maximum media compatibility
• 4.09" maximum print width accommodates standard shipping and product labels
• 16 MB Flash and 32 MB SDRAM with 16 MB user-accessible storage for fonts and forms
• Multi-interface connectivity: Ethernet, Wi-Fi, Bluetooth, and USB
• LCD display for intuitive operation and status monitoring
• Tool-free printhead and platen roller replacement reduces maintenance downtime
• Supports media rolls up to 5" outer diameter with 984 ft ribbon capacity
• Compact footprint: 8.69" × 10.96" × 7.38" (5.46 lbs)

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 203 dpi
• Print Speed: 6 ips
• Maximum Print Width: 4.09"
• Media Width Range: 1" to 4.65"
• Memory: 16 MB Flash, 32 MB SDRAM
• User Storage: 16 MB
• Connectivity: Ethernet, Wi-Fi, Bluetooth, USB
• Ribbon Capacity: 984 ft
• Dimensions: 8.69" × 10.96" × 7.38"
• Weight: 5.46 lbs
• Power Supply: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F

Applications

• High-volume shipping and logistics label printing
• Manufacturing product identification and asset tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling requirements
• Retail and point-of-sale labeling systems

Karl Wilson

Perspective based on aggregated and affiliated engineering team experience.

The WT312-403DN-EX1-2 strikes an excellent balance between performance and practicality for mid-to-high-volume labeling environments. The dual thermal printing modes eliminate the need for separate printers—direct thermal suits direct mail and shipping labels, while thermal transfer accommodates synthetic media and applications requiring label longevity. At 6 ips with 203 dpi, throughput is respectable for enterprise workflows without compromising print quality.

Connectivity flexibility distinguishes this model. Ethernet and Wi-Fi enable network integration for centralized print job management, while Bluetooth and USB provide local device flexibility. The 16 MB user-accessible storage is modest but sufficient for standard label templates and fonts in typical operations.

The tool-free printhead and platen replacement design is a significant operational advantage—reducing maintenance skill requirements and minimizing production downtime. The 5-inch roll capacity and 984-foot ribbon support extended run times between media changes, beneficial for unattended or high-throughput scenarios.

The compact desktop form factor fits easily into space-constrained shipping, receiving, or production areas. Global power input (100-240V) and wide operating temperature range (41°F–104°F) ensure reliable performance across diverse facilities. For organizations balancing cost-effectiveness with production reliability, the WT312-403DN-EX1-2 is a solid choice.
