SATO TG3 203dpi Desktop Thermal Printer WWTG40131

SATO TG3 203dpi Desktop Thermal Printer WWTG40131

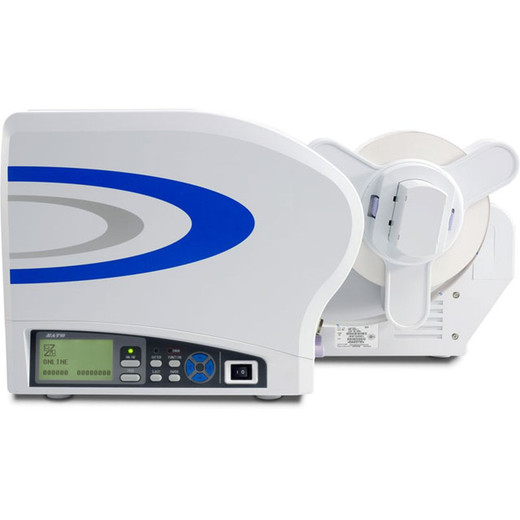

The SATO TG3 (Model WWTG40131) is a compact, high-performance desktop thermal printer engineered for enterprise-grade label production. With 203 dpi resolution and 5 ips print speed, this versatile system delivers sharp barcode and text output while maintaining a footprint small enough for any workspace. Supporting both direct thermal and thermal transfer printing modes, the TG3 adapts to diverse labeling requirements across shipping, manufacturing, and warehouse operations.

Key Features

• 203 dpi resolution at 5 ips for crisp barcode and text output
• Dual print mode: direct thermal and thermal transfer for maximum media flexibility
• 2.4" color LCD display for intuitive operation and real-time feedback
• 256 MB Flash and 128 MB SDRAM with 128 MB user storage for fonts and forms
• Tool-free printhead and platen roller replacement to minimize downtime
• Compact desktop design: 7.0" × 7.5" × 6.5", weighing 3.7 lbs
• Media roll capacity up to 5" outer diameter with support for 0.5" to 3.5" widths
• Ribbon capacity up to 984 ft for extended unattended operation

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 203 dpi
• Print Speed: 5 ips
• Maximum Print Width: 0.9"
• Media Width Range: 0.5" to 3.5"
• Maximum Media Roll Diameter: 5"
• Maximum Ribbon Length: 984 ft
• Memory: 256 MB Flash, 128 MB SDRAM, 128 MB User Storage
• Display: 2.4" Color LCD
• Connectivity: USB 2.0
• Dimensions: 7.0" × 7.5" × 6.5"
• Weight: 3.7 lbs
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F

Typical Applications

• High-volume shipping and logistics labeling
• Manufacturing identification and asset tracking
• Warehouse inventory management and routing
• Compliance and regulatory labeling
• Retail and point-of-sale label production

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO TG3 strikes an excellent balance between portability and capability for mid-volume label operations. Its 203 dpi resolution provides sufficient clarity for standard barcodes and variable data, while the 5 ips speed keeps throughput reasonable for non-high-speed environments. The dual thermal mode support is particularly valuable for organizations transitioning between direct thermal consumables and ribbon-based media, eliminating the need for multiple devices.

The 2.4" color LCD reduces setup friction compared to older monochrome displays, and tool-free maintenance access—standard on modern SATO units—reduces total cost of ownership. USB-only connectivity may limit integration in larger networked environments, though this makes the TG3 ideal for standalone or point-of-use deployment scenarios. The 128 MB user storage is adequate for typical label templates and fonts in small-to-medium operations.
