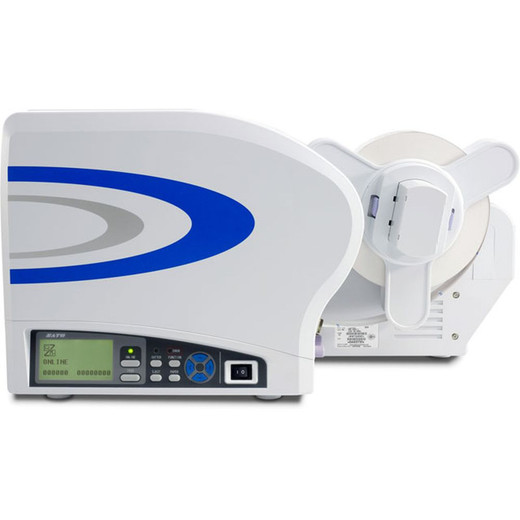

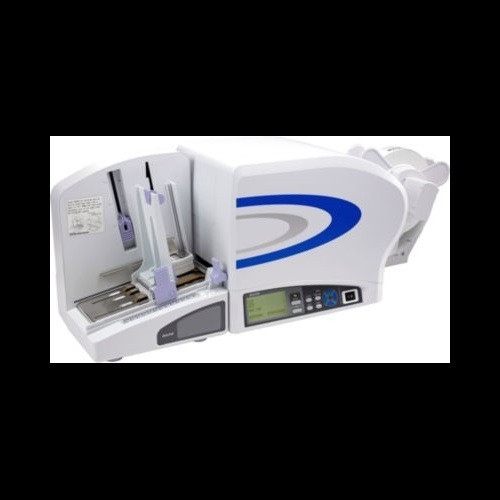

SATO TG3 203dpi Desktop Thermal Printer WWTG30141

SATO TG3 203dpi Desktop Thermal Printer WWTG30141

The SATO WWTG30141 is a compact, high-performance desktop thermal printer engineered for enterprise-grade label production in demanding warehouse, logistics, and manufacturing environments. Built on the proven TG3 platform, this 203dpi printer combines dual thermal printing modes, intelligent memory management, and tool-free maintenance to deliver reliable barcode and text output at 5 inches per second. Its space-efficient footprint and intuitive 2.4" color LCD display make it an ideal choice for organizations seeking professional labeling without sacrificing ease of operation.

Key Features

• 203 dpi resolution at 5 ips for sharp barcode, QR code, and text output
• Dual-mode printing: Direct Thermal and Thermal Transfer for maximum media flexibility
• 256 MB Flash and 128 MB SDRAM with 128 MB user-accessible storage for custom forms and fonts
• Tool-free printhead and platen roller replacement to minimize downtime
• 2.4" color LCD display for intuitive navigation and status monitoring
• USB 2.0 connectivity for fast, reliable integration
• Supports media rolls up to 5" outer diameter with 1" core
• Handles flexible media widths from 0.5" to 3.5"
• Thermal transfer ribbon capacity up to 984 feet

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 203 dpi
• Print Speed: 5 ips
• Maximum Print Width: 0.9"
• Memory: 256 MB Flash, 128 MB SDRAM, 128 MB user storage
• Display: 2.4" color LCD
• Media Width Range: 0.5" to 3.5"
• Media Core: 1"
• Maximum Roll Diameter: 5"
• Maximum Ribbon Length: 984 feet
• Connectivity: USB 2.0
• Dimensions: 7.0" x 7.5" x 6.5"
• Weight: 3.7 lbs
• Power Input: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F

Typical Applications

• High-volume shipping and logistics labeling
• Manufacturing asset identification and tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling
• Product serialization and traceability

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO WWTG30141 represents a best-in-class balance of performance, reliability, and operational simplicity for mid-volume label environments. The 203dpi resolution at 5 ips delivers enterprise-quality output suitable for compliance-critical applications while maintaining rapid throughput. Dual thermal modes eliminate the need for separate printer investments—organizations can deploy direct thermal for shipping labels and switch to thermal transfer for durable asset labels without hardware changes.

The tool-free printhead replacement design is particularly valuable in high-utilization settings where printhead contact wear is inevitable. Combined with the 256 MB onboard storage, this printer supports complex label templates and barcode symbologies without requiring constant host system intervention. The 2.4" color display and straightforward USB interface lower training overhead compared to legacy systems. For organizations standardizing on SATO infrastructure, the TG3's compact desktop form factor integrates seamlessly into existing label production workflows while preserving valuable work surface real estate.
