SATO M84Pro 203dpi Industrial Thermal Transfer Printer – WM8460041

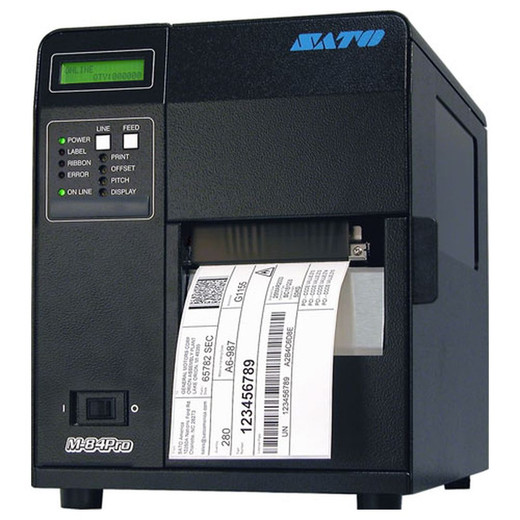

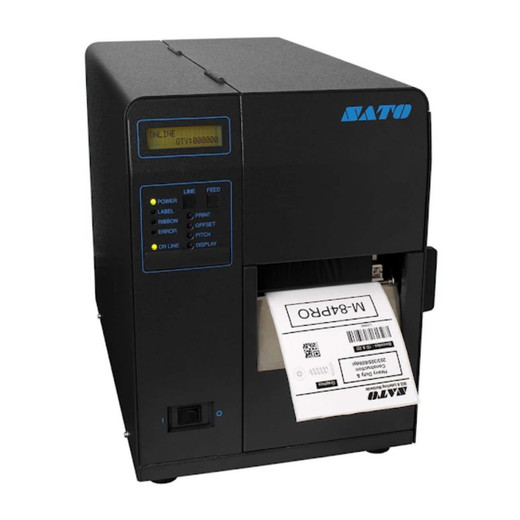

The SATO M84Pro WM8460041 is a robust industrial thermal transfer printer engineered for high-volume enterprise label production. With 203 dpi resolution and 10 ips print speed, this printer delivers sharp barcode and text output essential for logistics, manufacturing, and warehouse operations. The dual-mode direct thermal and thermal transfer capability provides maximum media flexibility, while the intuitive 3.5" color LCD display streamlines operator interaction and configuration.

Key Features

• 203 dpi resolution at 10 ips for crisp barcode and text printing
• 4.1" maximum print width with support for 1" to 4.5" media widths
• Dual-mode printing: Direct thermal and thermal transfer
• 2 MB Flash and 16 MB SDRAM with 2 MB user-accessible storage for forms and fonts
• 3.5" color LCD display with intuitive menu navigation
• Industrial metal housing for durability in demanding environments
• Tool-free printhead and platen roller replacement for reduced downtime
• Field-changeable print heads supporting 203, 305, and 609 dpi options
• Media roll capacity up to 8.6" outer diameter with 3" cores
• Ribbon capacity up to 1,968 ft for extended production runs
• Multiple connectivity options: USB 2.0, Ethernet, RS-232C, and Parallel

Technical Specifications

• Print Resolution: 203 dpi
• Print Speed: 10 ips
• Maximum Print Width: 4.1"
• Media Width Range: 1" to 4.5"
• Media Core: 3"
• Maximum Roll Diameter: 8.6"
• Maximum Ribbon Length: 1,968 ft (600 m)
• Memory: 2 MB Flash, 16 MB SDRAM, 2 MB user storage
• Interfaces: USB 2.0, Ethernet, RS-232C, Parallel
• Display: 3.5" Color LCD
• Dimensions: 15.0" x 10.6" x 11.6"
• Weight: 24.3 lbs
• Power Input: AC 100-240V, 50/60Hz
• Operating Temperature: 5°C to 40°C

Typical Applications

• High-volume shipping and logistics labeling
• Manufacturing identification and asset tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling requirements
• Healthcare and pharmaceutical product identification
• Retail and e-commerce fulfillment operations

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

The SATO M84Pro WM8460041 is purpose-built for enterprises requiring reliable, high-speed label production at industrial scale. The 203 dpi resolution strikes an optimal balance between output quality and print speed, making it ideal for mixed-content labels combining barcodes, text, and graphics. The tool-free maintenance design—particularly the quick-change printhead and platen roller—significantly reduces production downtime, a critical factor in logistics and manufacturing environments where label output directly impacts operational efficiency.

The combination of dual thermal modes (direct thermal and thermal transfer) and field-changeable print heads (203/305/609 dpi) offers exceptional operational flexibility. Organizations can switch between cost-effective direct thermal media and durable thermal transfer ribbons without hardware changes, and easily upgrade resolution capabilities as business needs evolve. With 2 MB user storage, the printer supports custom forms and fonts locally, reducing network dependencies and improving resilience in distributed warehouse and manufacturing deployments.

The generous ribbon capacity (1,968 ft) and large media roll support (8.6" diameter) minimize changeovers during high-volume production cycles. Wired connectivity via Ethernet and USB, combined with RS-232C and Parallel legacy support, ensures seamless integration into existing enterprise label systems and legacy infrastructure without requiring adapters or compatibility workarounds.
