SATO M84Pro 203dpi Industrial Thermal Transfer - WM8420011

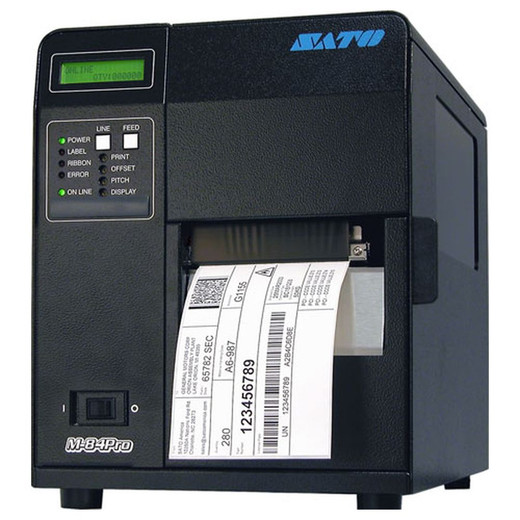

SATO M84Pro 203dpi Industrial Thermal Transfer Printer – WM8420011

The SATO M84Pro WM8420011 is a robust industrial thermal transfer printer engineered for high-volume enterprise label production. Delivering 203 dpi resolution at 10 inches per second, this dual-mode printer handles both direct thermal and thermal transfer printing with a maximum print width of 4.1 inches. Built with industrial-grade metal construction and backed by intuitive 3.5-inch color LCD controls, the M84Pro is purpose-built for demanding logistics, manufacturing, and warehouse environments requiring reliable, consistent output.

Key Features

• 203 dpi resolution at 10 ips print speed for sharp barcode and text output
• Dual print modes: direct thermal and thermal transfer for maximum media flexibility
• 4.1-inch maximum print width supports standard shipping and product labels
• 2 MB Flash and 16 MB SDRAM with 2 MB user storage for forms and fonts
• 3.5-inch color LCD display with intuitive navigation
• Tool-free printhead and platen roller replacement minimizes downtime
• Field-changeable printheads supporting 203, 305, and 609 dpi options
• Supports media rolls up to 8.6 inches outer diameter with 3-inch cores
• Ribbon capacity up to 1,968 feet for extended run times
• Media width range: 1 to 4.5 inches for label and tag versatility
• Wired connectivity via USB 2.0 and Ethernet (RS-232C and Parallel available)

Technical Specifications

• Resolution: 203 dpi
• Print Speed: 10 ips
• Max Print Width: 4.1 inches
• Memory: 2 MB Flash, 16 MB SDRAM, 2 MB user storage
• Connectivity: Ethernet, USB 2.0, RS-232C, Parallel
• Display: 3.5-inch color LCD
• Media Width Range: 1 to 4.5 inches
• Media Core Size: 3 inches
• Max Roll Diameter: 8.6 inches
• Max Ribbon Length: 1,968 feet
• Dimensions: 15.0 x 10.6 x 11.6 inches
• Weight: 39.7 lbs
• Power: AC 100–240V, 50/60 Hz
• Operating Temperature: 41°F to 104°F

Applications

• High-volume shipping and logistics label printing
• Manufacturing product identification and serialization
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling
• Supply chain and asset tracking

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

The M84Pro stands out in the mid-range industrial printer segment with its balanced performance and operational flexibility. The 203 dpi resolution delivers professional-quality barcodes and readable text suitable for retail and enterprise applications, while the 10 ips speed maintains productivity without sacrificing output quality. The dual thermal capability is particularly valuable for organizations transitioning between direct thermal and thermal transfer media or managing mixed labeling workflows.

The tool-free printhead replacement design significantly reduces maintenance overhead—a critical advantage in facilities operating 24/7 production schedules. Field-swappable printheads supporting multiple dpi settings provide upgrade flexibility without hardware replacement. Storage and memory specifications are adequate for standard forms, fonts, and graphics, though organizations with extensive custom graphics libraries may require external form management. Wired Ethernet and USB connectivity ensures stable integration into legacy and modern network infrastructures, while the color LCD interface simplifies operation and troubleshooting across varying user skill levels.
