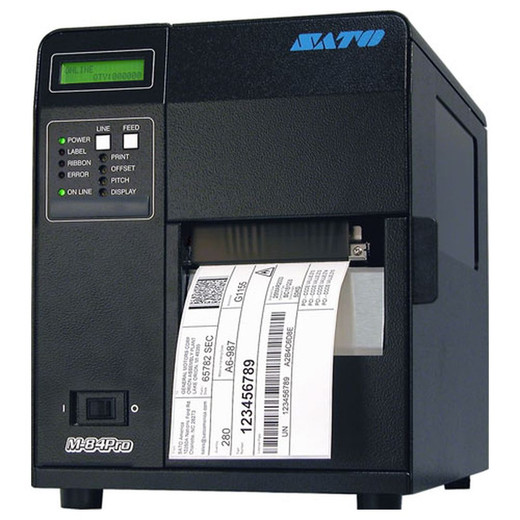

SATO M84Pro 203dpi Industrial Thermal Transfer Printer – WM8460031

The SATO M84Pro WM8460031 is a versatile industrial thermal transfer printer engineered for high-volume enterprise labeling environments. With 203 dpi resolution, 10 ips print speed, and 4.1" maximum print width, this printer delivers reliable barcode and text output for shipping, manufacturing, and warehouse applications. Dual-mode printing—supporting both direct thermal and thermal transfer—provides maximum media flexibility without requiring hardware changes.

Key Features

• 203 dpi resolution at 10 ips for sharp barcodes and clear text
• Dual-mode direct thermal and thermal transfer printing
• 4.1" maximum print width; supports 1" to 4.5" media widths
• Large 3.5" color LCD display for intuitive operation and monitoring
• Tool-free printhead and platen roller replacement to minimize downtime
• Supports media rolls up to 8.6" outer diameter with 3" cores
• Ribbon capacity up to 1,968 feet (600 meters) for extended runtime
• Industrial-grade metal housing for durability in demanding environments

Memory and Connectivity

The printer features 2 MB Flash, 16 MB SDRAM, and 2 MB user-accessible storage for custom forms and fonts. Standard connectivity includes USB 2.0 and Ethernet for seamless integration into networked label production workflows. RS-232C and Parallel interfaces provide legacy system support.

Technical Specifications

• Resolution: 203 dpi
• Print Speed: 10 inches per second
• Maximum Print Width: 4.1 inches
• Media Compatibility: 1" to 4.5" widths; 3" core diameter; up to 8.6" roll OD
• Memory: 2 MB Flash, 16 MB SDRAM, 2 MB user storage
• Display: 3.5" color LCD
• Connectivity: USB 2.0, Ethernet, RS-232C, Parallel
• Dimensions: 15.0" W x 10.6" D x 11.6" H
• Weight: 39.7 lbs (11.0 kg)
• Power Input: AC 100-240V, 50/60 Hz
• Operating Temperature: 41°F to 104°F (5°C to 40°C)

Ideal Applications

• High-volume shipping and logistics label production
• Manufacturing product identification and traceability tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling requirements
• Enterprise barcode and asset management systems

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

The M84Pro WM8460031 bridges the gap between entry-level and high-end industrial printers. Its 203 dpi resolution is the industry standard for barcode and text clarity, while 10 ips speed balances throughput with reliability. The dual-mode capability eliminates the need for separate direct thermal and transfer printers, reducing capital expenditure and maintenance complexity.

Tool-free printhead replacement is a significant advantage in high-utilization environments where printheads wear regularly. The 3.5" color display and Windows-compatible interfaces make operator training minimal. For organizations managing medium to high-volume label operations—particularly in 3PL, manufacturing, and retail distribution—this printer offers proven SATO quality at a practical price point.

The extensive ribbon capacity and large media roll diameter support extended unattended printing runs, ideal for batch-processing workflows.
