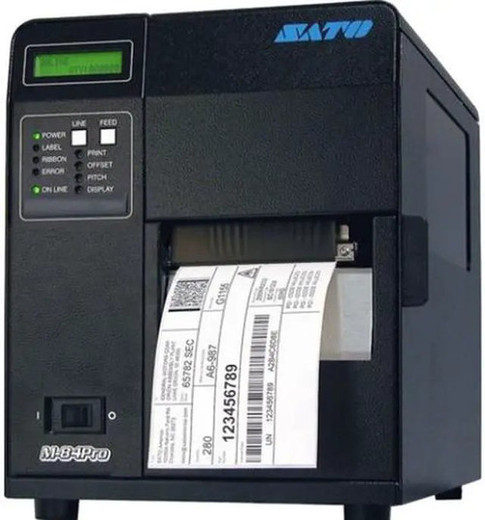

SATO M84Pro WM8430031 203dpi Industrial Thermal Transfer Printer
The SATO M84Pro WM8430031 is a rugged industrial thermal transfer printer engineered for high-volume enterprise labeling environments. Combining 203 dpi resolution with 10 ips print speed, this workhorse delivers crisp barcode and text output on media up to 4.1" wide. Its dual-mode capability—direct thermal and thermal transfer—eliminates the need for separate printers, maximizing operational flexibility across diverse labeling workflows.
Key Features
- 203 dpi resolution at 10 ips for sharp barcode and text rendering
- Dual-mode operation: direct thermal and thermal transfer printing
- 4.1" maximum print width supports most standard shipping and compliance labels
- 2 MB Flash and 16 MB SDRAM with 2 MB user storage for fonts and custom forms
- 3.5" color LCD display for intuitive menu navigation and job management
- Tool-free printhead and platen roller replacement minimizes maintenance downtime
- Industrial metal housing rated for demanding production environments
- Supports media rolls up to 8.6" outer diameter with 1" to 4.5" width range
- Ribbon capacity up to 1,968 ft (600 m) for extended print runs
- Multiple connectivity options: USB 2.0, Ethernet, RS-232C, and Parallel
Technical Specifications
Print Performance: 203 dpi resolution, 10 ips print speed, 4.1" maximum print width
Memory: 2 MB Flash, 16 MB SDRAM, 2 MB user-accessible storage
Display: 3.5" color LCD with intuitive interface
Media Handling: 1" to 4.5" media width, 3" core size, 8.6" maximum roll diameter
Ribbon: Up to 1,968 ft (600 m) capacity
Connectivity: Ethernet, USB 2.0, RS-232C, Parallel
Power: AC 100-240V, 50/60Hz input
Operating Environment: 41°F to 104°F (5°C to 40°C)
Dimensions: 15.0" × 10.6" × 11.6"
Weight: 24.3 lbs (11.0 kg)
Housing: Industrial-grade metal construction
Typical Applications
- High-volume shipping and logistics label production
- Manufacturing asset identification and tracking
- Warehouse inventory management and routing labels
- Compliance, regulatory, and pharmaceutical labeling
- Retail and distribution center operations
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SATO M84Pro WM8430031 represents a mature, field-proven platform for mid-range industrial label printing. Its dual thermal capability provides genuine operational flexibility—direct thermal for urgent, cost-sensitive runs and thermal transfer for durability-critical applications. The 10 ips speed is realistic for 4" label production; while not ultra-fast, it aligns with standard logistics workflows.
The 203 dpi spec is industry standard for barcode and text clarity without excessive file sizes or network overhead. Tool-free maintenance design is meaningful in 24/7 environments where every hour of downtime carries real cost. Memory allocation (16 MB RAM, 2 MB storage) is adequate for typical enterprise form management but not expansive—suitable for established, stable label sets rather than highly dynamic environments.
The industrial metal housing and wide operating temperature range signal durability. Network-connected (Ethernet + USB) operation and Windows OS integration fit standard enterprise IT environments. For organizations printing 1,000–10,000 labels daily across mixed media types and thermal modes, this printer delivers solid, dependable performance without over-specification.
