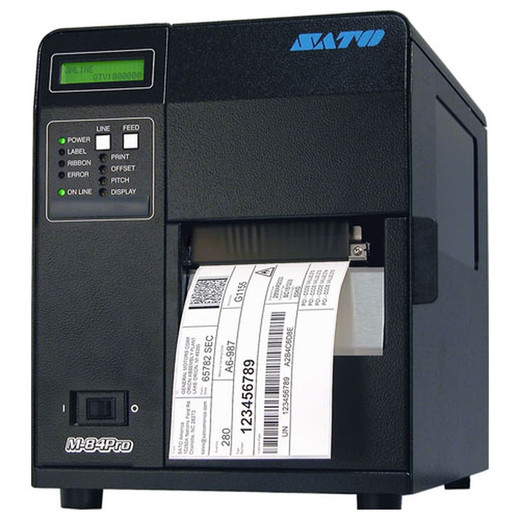

SATO M84Pro WM8430221 203dpi Industrial Thermal Printer

SATO M84Pro WM8430221 203dpi Industrial Thermal Transfer Printer

The SATO M84Pro WM8430221 is a robust industrial-grade thermal transfer printer engineered for high-volume enterprise labeling applications. With 203 dpi resolution, 10 ips print speed, and 4.1" maximum print width, this printer delivers sharp, consistent output for barcodes, compliance labels, and product identification across manufacturing, logistics, and warehouse environments. Dual-mode printing (direct thermal and thermal transfer) provides maximum media flexibility, while field-changeable printheads support multiple resolution options for diverse operational needs.

Key Features

• 203 dpi resolution at 10 ips for high-quality barcode and text output
• Dual-mode printing: direct thermal and thermal transfer for media flexibility
• 4.1" maximum print width with 1" to 4.5" media width compatibility
• 3.5" color LCD display for intuitive operation and job monitoring
• 2 MB Flash, 16 MB SDRAM with 2 MB user-accessible storage for forms and fonts
• Tool-free printhead and platen roller replacement for minimal maintenance downtime
• Field-changeable printheads supporting 203, 305, and 609 dpi configurations
• Industrial metal housing designed for demanding operational environments
• Supports media rolls up to 8.6" outer diameter and ribbons up to 1,968 ft (600 m)
• Standard 3" core media compatibility

Technical Specifications

• Resolution: 203 dpi
• Print Speed: 10 inches per second
• Maximum Print Width: 4.1"
• Memory: 2 MB Flash, 16 MB SDRAM, 2 MB user storage
• Connectivity: USB 2.0, Ethernet, RS-232C, Parallel
• Display: 3.5" Color LCD
• Media Width Range: 1" to 4.5"
• Maximum Ribbon Length: 1,968 ft (600 m)
• Maximum Media Roll Diameter: 8.6"
• Dimensions: 15.0" L x 10.6" W x 11.6" H
• Weight: 39.7 lbs (11.0 kg)
• Power Input: AC 100-240V, 50/60Hz
• Operating Temperature: 5°C to 40°C (41°F to 104°F)

Typical Applications

• High-volume shipping and logistics labeling
• Manufacturing identification and component tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling
• Product serialization and anti-counterfeiting

Karl Wilson

Perspective based on aggregated and affiliated engineering team experience.

The SATO M84Pro WM8430221 combines industrial durability with operational flexibility, making it ideal for enterprises requiring consistent, high-quality label output at scale. The 203 dpi resolution strikes an optimal balance between print quality and speed for most industrial applications, while the field-changeable printhead design enables resolution upgrades to 305 or 609 dpi without printer replacement—a significant advantage for organizations with evolving labeling requirements.

The dual-mode thermal printing capability is particularly valuable for mixed-media environments where organizations use both direct thermal and ribbon-based labels. The 3.5" color LCD provides real-time feedback and simplified troubleshooting, reducing operator training time and support costs. With connectivity options spanning USB, Ethernet, RS-232C, and Parallel interfaces, integration into legacy and modern enterprise systems is straightforward. The tool-free maintenance design—including printhead and platen roller replacement—minimizes scheduled downtime and reduces total cost of ownership, a critical consideration for continuous 24/7 operations in logistics and manufacturing facilities.
