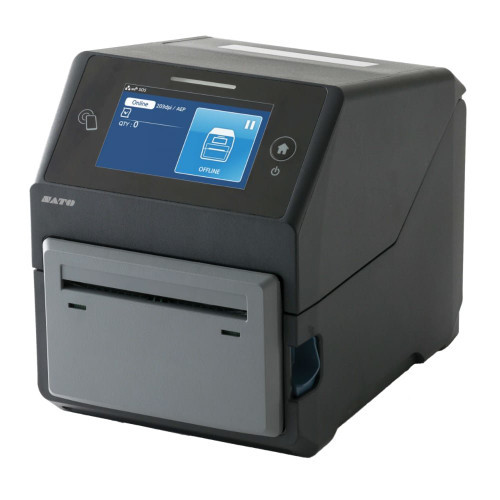

Sato WWCT04241-WDN CT4-LX 305dpi UHF RFID Desktop Thermal Printer
The Sato WWCT04241-WDN is a compact desktop thermal printer built for environments where printed labels must also carry encoded RFID tags. It combines 305 dpi print resolution with integrated UHF RFID encoding (860–960 MHz, EPC C1G2 compliant), making it a single-pass solution for asset tracking, supply chain labeling, and inventory workflows. Unlike printer-plus-encoder setups that occupy floor space and require separate integration, the WWCT04241-WDN handles both print and encode in one compact footprint, reducing equipment cost and maintenance touch points.
Key Features & Specifications
- 305 dpi print resolution at 8 inches per second: Delivers crisp barcodes, QR codes, and text on small-format labels—critical for pharmaceutical, automotive, and high-value asset labels where barcode density and readability directly impact scanning performance and regulatory compliance.
- UHF RFID encoding (860–960 MHz, EPC C1G2 standard): Encodes tag memory and performs per-label verification in the same cycle as printing. No separate encoder station means faster throughput and fewer touch points where encoding failures occur.
- SATO RF Analyze auto-optimization: Automatically adjusts antenna performance based on inlay type and label construction. Particularly valuable in high-mix label environments where substrate variation can otherwise cause inconsistent tag read rates post-production.
- Direct thermal and thermal transfer print modes: Supports both direct thermal (lower cost per label, no ribbon) for shorter-shelf-life items and thermal transfer (ribbon-based, longer durability) for outdoor or high-handling-stress applications. Flexibility without buying two printers.
- 4.3-inch full-color touchscreen interface: Reduces operator training time and supports fast workflow changes—especially valuable in shift-based production where downtime for configuration retraining is costly.
- 4 GB Flash + 1 GB DDR3 + 2 GB user storage: Onboard memory handles font libraries, label templates, and form data locally. No requirement for an external print server, simplifying network architecture in warehouse or manufacturing environments.
- Multi-protocol connectivity (Ethernet, Wi-Fi, Bluetooth, USB 2.0): Integrates into wired networks for large facilities or over Wi-Fi for mobile carts and portable labeling stations. Bluetooth pairs with hand-held devices for on-demand label printing without network infrastructure.
- Tool-free printhead and platen roller replacement: Field maintenance takes minutes instead of hours. In 24/7 operations, this directly reduces downtime and staffing overhead for printer maintenance.
- Compact desktop footprint (7.0" × 9.375" × 8.4375", 7.3 lbs): Fits on workstations, shelving, or mobile carts without consuming warehouse square footage. Small form factor also reduces setup time during facility relocations or production line reconfiguration.
- 4.09-inch maximum print width; 1" to 4.1" media range: Handles most common industrial label sizes (shipping labels, asset tags, case labels) in a single device. Media roll capacity up to 5" outer diameter on 1.5" core supports high-volume runs without frequent reloads.
- Operating temperature range 32°F to 104°F: Safe for deployment in climate-controlled warehouses, manufacturing floors, and retail environments. Not suitable for outdoor or extreme-temperature storage areas—verify ambient conditions before installation.
Integration & Workflow
The WWCT04241-WDN integrates with warehouse management systems (WMS), inventory management platforms, and asset-tracking software via standard network protocols. Label design and RFID encoding parameters are typically controlled via label design software (such as SATO's own drivers) that sends print + encode jobs directly to the printer. Multi-protocol connectivity means no single-point-of-failure dependency on one network infrastructure—fallback over Wi-Fi or USB is practical if Ethernet becomes unavailable.
For environments already using thermal label printers, the WWCT04241-WDN's familiar interface and print-speed performance reduce learning curve. Integration with existing label design software is typically seamless if the software supports SATO printer models.
When to Choose a Different Model
If your workflow requires only printed labels without RFID encoding, consider a non-RFID thermal printer variant from Sato's thermal printer line—they cost less and eliminate unused RFID capability. If you need higher print resolution (600 dpi) for ultra-dense barcodes or micro-printing, consult Sato's higher-dpi desktop models. If your labels exceed 4.09 inches in width, you'll need a mid-size or large-format industrial printer instead.
Frequently Asked Questions
Q: Does the WWCT04241-WDN require a separate RFID encoder, or is encoding built in?
A: Encoding is fully integrated. The printer encodes RFID tags during the label print cycle—no separate encoder or second device needed.
Q: Can I use the WWCT04241-WDN for direct thermal labels only, without RFID?
A: Yes. The printer supports direct thermal mode and will print labels normally. The RFID functionality is optional—you only encode tags when your workflow requires it.
Q: What is the maximum print speed?
A: 8 inches per second at 305 dpi. Actual throughput depends on label length and RFID encoding time per label.
Q: Does the WWCT04241-WDN work with our WMS?
A: It integrates via standard print protocols (Ethernet, Wi-Fi, USB) with any WMS or label design software that supports SATO printer drivers. Verify driver availability for your specific WMS platform before purchase.
Q: What's the ribbon capacity and how often do I need to replace it?
A: Ribbon capacity is up to 984 feet. Replacement frequency depends on label size and volume—typical shifts may use one ribbon per day or per week depending on production rate.
Q: Is the WWCT04241-WDN suitable for outdoor or high-humidity environments?
A: Operating temperature range is 32°F to 104°F in a climate-controlled space. It is not rated for outdoor deployment, direct moisture exposure, or extreme heat. Install in a dry, temperature-controlled area.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Sato WWCT04241-WDN stands out in the desktop RFID printer segment because it consolidates print and encode into a single footprint without sacrificing either function. The 305 dpi resolution at 8 ips is competitive with pure thermal printers, and the integrated UHF RFID encoding—particularly the SATO RF Analyze auto-optimization feature—eliminates the encoding failures that plague separate printer-plus-encoder setups. This is material if you're running asset tracking or pharmaceutical labeling where per-label encoding verification is non-negotiable.
Technical Highlights:
- SATO RF Analyze antenna auto-optimization: Automatically compensates for substrate variation (paper stock, inlay type, adhesive backing), ensuring consistent encoding performance across mixed label runs. This prevents the post-production read failures that often force label reprints or manual rework.
- Tool-free printhead maintenance: Field replacement takes <5 minutes, meaning 24/7 operations don't lose hours to printer downtime while waiting for service. In shift-based warehouses, this is a 5–10% productivity gain over competitors requiring screwdriver-based disassembly.
- 4.09-inch max print width with dual thermal modes: Covers 95% of industrial label sizes (4×6 shipping labels, 2×3 asset tags, case labels). Direct thermal mode saves ribbon cost for high-volume, short-shelf-life labels; transfer mode locks in durability for harsh handling or outdoor item tracking.
- 4 GB onboard storage + multi-protocol connectivity: Eliminates dependency on external print servers. Network failures or printer moves don't cascade into WMS disconnects. Wi-Fi and USB fallback are genuine operational redundancy.
Deployment Considerations:
- Operating range is 32–104°F, climate-controlled space only. If your warehouse temperature varies or facility lacks year-round HVAC, verify ambient conditions before installation.
- 8 ips speed assumes optimal label length and encoding parameters. Very short labels (<2 inches) or complex multi-zone encoding may reduce effective throughput—test with actual templates before committing to production volume assumptions.
- Ribbon capacity (984 feet) means frequent reloads in high-volume environments (2,000+ labels/shift). Budget for ribbon inventory and operator touch time.
The WWCT04241-WDN is the right choice if you need integrated print-and-encode in a compact footprint for supply chain visibility, asset tracking, or manufacturing item-level labeling. It works particularly well in facilities already running Sato thermal printers and wanting to upgrade to RFID without rip-and-replace. Skip it if your labels exceed 4 inches width or if you need outdoor-rated hardware.
