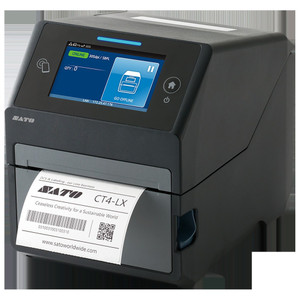

SATO CT4-LX 305dpi Desktop Thermal Printer WWCT04041-WDN

SATO CT4-LX 305dpi Desktop Thermal Printer WWCT04041-WDN

The SATO CT4-LX 305dpi desktop thermal printer (model WWCT04041-WDN) is a compact, enterprise-grade label printing solution designed for high-volume shipping, logistics, and inventory management operations. Combining dual thermal printing modes, intuitive touchscreen control, and flexible connectivity options, this printer delivers reliable performance in demanding industrial environments.

Key Features

• 305 dpi resolution with 8 ips print speed for sharp barcode and text output
• Dual-mode printing: Direct Thermal and Thermal Transfer for maximum media flexibility
• 4.09" maximum print width supports standard shipping labels and variable-width formats
• 4.3" Full-Color Touchscreen for intuitive configuration and job management
• Tool-free printhead and platen roller replacement minimizes maintenance downtime
• 4 GB Flash + 1 GB DDR3 memory with 2 GB user-accessible storage for forms and fonts
• Multiple connectivity: Ethernet, Wi-Fi, Bluetooth, and USB for flexible deployment
• Compact desktop form factor: 7.0" × 9.375" × 8.4375", weighing only 7.3 lbs
• Media roll capacity up to 5" outer diameter with ribbon support up to 984 ft
• Handles media widths from 1" to 4.1" for diverse label applications

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 305 dpi
• Print Speed: 8 inches per second
• Maximum Print Width: 4.09"
• Memory: 4 GB Flash, 1 GB DDR3, 2 GB user storage
• Display: 4.3" Full-Color Touchscreen
• Connectivity: Ethernet, Wi-Fi, Bluetooth, USB
• Media Width Range: 1" to 4.1"
• Maximum Media Diameter: 5"
• Maximum Ribbon Length: 984 ft
• Dimensions: 7.0" × 9.375" × 8.4375"
• Weight: 7.3 lbs
• Power Input: AC 100-240V, 50/60Hz
• Operating Temperature: 32°F to 104°F

Applications

• High-volume shipping and logistics label printing
• Manufacturing part identification and asset tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling requirements
• Retail and distribution center operations
• Healthcare and pharmaceutical labeling

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO CT4-LX WWCT04041-WDN represents a well-balanced solution for organizations requiring reliable desktop thermal printing without excessive footprint. The 305 dpi resolution at 8 ips delivers production-grade output suitable for GS1 barcodes, 2D codes, and text-heavy labels. Dual thermal printing modes eliminate the need for separate equipment—switch between direct thermal for disposable labels and thermal transfer for durable, long-life applications on demand.

The 4.3" touchscreen interface significantly reduces operator training time compared to legacy button-based printers, while tool-free consumable replacement keeps maintenance straightforward. Multi-protocol connectivity (Ethernet, Wi-Fi, Bluetooth, USB) enables seamless integration into existing enterprise networks and mobile workflows. The 4 GB Flash and 1 GB DDR3 memory allocation supports complex label templates and frequent font updates without external storage dependencies.

For organizations evaluating this class, consider media type requirements—thermal transfer's superior durability justifies ribbon costs in outdoor, chemical-exposure, or high-temperature environments, while direct thermal remains cost-effective for short-shelf-life shipping labels. The compact 7.3 lb form factor makes this suitable for space-constrained shipping departments and mobile printing carts.
