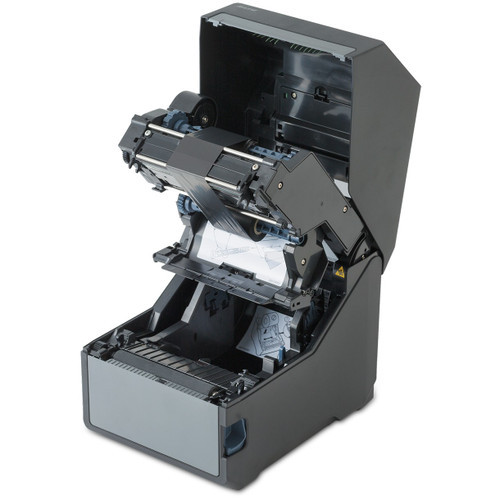

SATO CT4-LX 203dpi Desktop Thermal Printer

SATO CT4-LX 203dpi Desktop Thermal Printer – WWCT03041-WAR

The SATO CT4-LX is a compact yet powerful desktop thermal printer engineered for enterprise-grade label production. With 203 dpi resolution, 8 ips print speed, and 4.09" maximum print width, it delivers sharp barcode and text output for demanding shipping, manufacturing, and logistics applications. The printer combines dual printing modes (direct thermal and thermal transfer), generous onboard memory, and intuitive 4.3" touchscreen control in a space-efficient form factor ideal for workgroup deployment.

Key Features

• 203 dpi resolution at 8 ips for crisp barcodes and text
• Dual-mode printing: direct thermal and thermal transfer support
• 4.3" Full-Color Touchscreen with Day/Night display mode
• 4 GB Flash + 1 GB DDR3 + 2 GB user-accessible storage for fonts and forms
• Multiple connectivity: USB, Ethernet, Wi-Fi, Bluetooth
• Tool-free printhead and platen roller replacement
• Supports media rolls up to 5" diameter; ribbons up to 984 ft
• Compact desktop form factor: 7.0" × 9.375" × 8.4375"
• Wide media compatibility: 1" to 4.1" roll widths

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 203 dpi
• Print Speed: 8 ips (inches per second)
• Maximum Print Width: 4.09"
• Media Width Range: 1" to 4.1"
• Maximum Roll Diameter: 5"
• Maximum Ribbon Length: 984 ft (300 m)
• Memory: 4 GB Flash, 1 GB DDR3, 2 GB user storage
• Display: 4.3" Full-Color Touchscreen
• Connectivity: USB 2.0, Ethernet, Wi-Fi, Bluetooth
• Dimensions: 7.0" W × 9.375" D × 8.4375" H
• Weight: 7.3 lbs (3.3 kg)
• Power Input: AC 100-240V, 50/60Hz
• Operating Temperature: 32°F to 104°F

Typical Applications

• High-volume shipping and logistics label printing
• Manufacturing identification, barcoding, and asset tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling
• Healthcare and pharmaceutical specimen identification

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO CT4-LX strikes an excellent balance between performance and footprint for mid-volume label environments. The 203 dpi specification provides sufficient clarity for standard barcodes (Code128, UPC, etc.) and small text without the footprint or cost overhead of 300+ dpi models. With 8 ips throughput, it's suitable for workgroup-level demand—not high-speed production, but responsive enough for dynamic printing scenarios where label content frequently changes.

The dual-mode printing capability is a significant advantage: direct thermal eliminates ribbon costs for thermal-compatible media, while thermal transfer opens access to synthetic and specialty substrates. The 4.3" touchscreen with day/night mode enhances usability in varied warehouse lighting, and tool-free maintenance reduces operational friction—a practical design choice that lowers total cost of ownership over the printer's lifecycle.

Connectivity breadth (USB, Ethernet, Wi-Fi, Bluetooth) enables flexible integration into both legacy and modern network environments. The 2 GB user storage is practical for storing multiple label formats and fonts without network dependency, useful for resilience in branch or remote locations. This printer is well-suited for organizations seeking reliable, maintainable label production without enterprise production-scale complexity.
