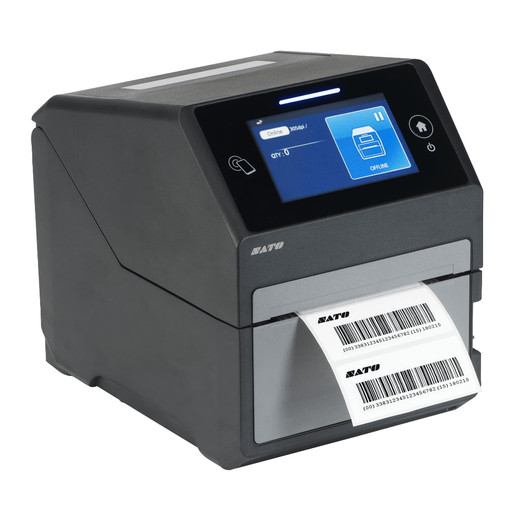

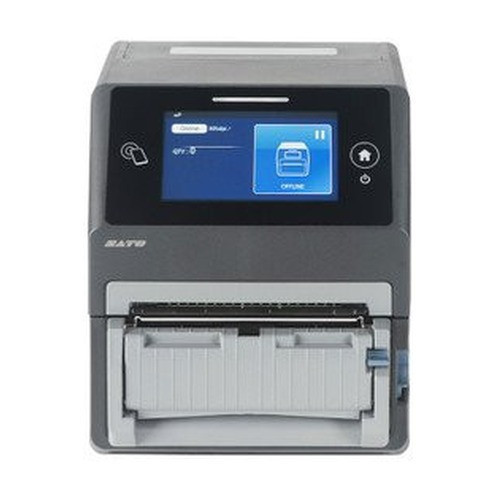

SATO CT4-LX 203dpi Desktop Thermal Printer

SATO CT4-LX 203dpi Desktop Thermal Printer – WWCT01041-WAN

The SATO WWCT01041-WAN is a compact, enterprise-grade desktop thermal printer designed for high-volume label production in demanding logistics, manufacturing, and warehouse environments. Combining direct thermal and thermal transfer printing capabilities with intuitive touchscreen operation, this printer delivers consistent, professional-quality output for barcodes, shipping labels, inventory tags, and compliance labeling.

Key Features

• 203 dpi resolution at 8 ips print speed for sharp barcode and text output
• 4.09" maximum print width accommodates standard shipping and logistics label formats
• Direct thermal and thermal transfer printing modes for flexible media options
• 4.3" full-color touchscreen for intuitive configuration and job management
• Multi-connectivity: USB 2.0, Ethernet, Wi-Fi, Bluetooth, and NFC support
• Tool-free printhead and platen roller replacement to minimize maintenance downtime
• 4 GB Flash and 1 GB DDR3 memory with 2 GB user-accessible storage for forms and fonts

Technical Specifications

• Print Resolution: 203 dpi
• Print Speed: 8 inches per second
• Maximum Print Width: 4.09"
• Media Width Range: 1" to 4.1"
• Media Core Size: 1.5 inches
• Maximum Roll Diameter: 5 inches
• Maximum Ribbon Length: 984 feet
• Memory: 4 GB Flash, 1 GB DDR3
• User Storage: 2 GB
• Display: 4.3" full-color touchscreen
• Connectivity: USB 2.0, Ethernet, Wi-Fi, Bluetooth, NFC
• Dimensions: 7.0" W x 9.375" D x 8.4375" H
• Weight: 7.3 lbs
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: 32°F to 104°F

Ideal Applications

• High-volume shipping and logistics label production
• Manufacturing identification and asset tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling
• Healthcare and pharmaceutical labeling

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO CT4-LX WWCT01041-WAN strikes an excellent balance between performance and operational efficiency for mid-to-high-volume enterprise environments. The dual print method capability—direct thermal for cost-effective temporary labels and thermal transfer for durable, color-enhanced output—provides operational flexibility without hardware changes. The 203 dpi resolution at 8 ips is ideally suited for standard barcode formats, shipping labels, and compliance documentation where speed and clarity are equally critical.

The integrated 4.3" touchscreen with day/night display modes enhances usability in diverse lighting conditions, while Wi-Fi and Bluetooth connectivity eliminate cable constraints in dynamic warehouse settings. The tool-free maintenance design directly reduces unplanned downtime, a key cost factor in 24/7 operations. With 984 feet of ribbon capacity and 5-inch roll support, this printer minimizes media changeovers during extended production runs, making it particularly valuable in high-throughput logistics and manufacturing contexts.
