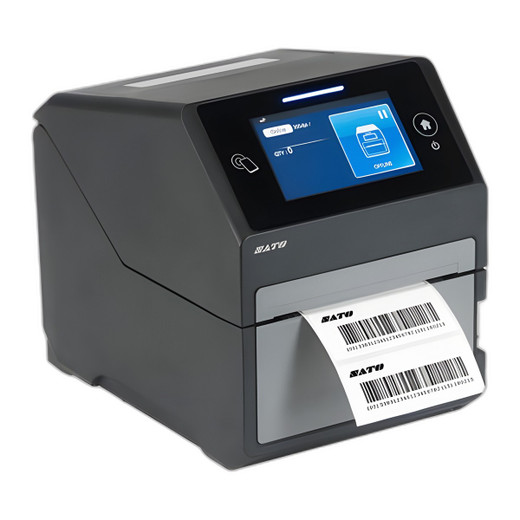

SATO CT4-LX 203dpi Desktop Thermal Printer

SATO CT4-LX 203dpi Desktop Thermal Printer – WWCT01041-NMN

The SATO CT4-LX is a compact, versatile desktop thermal printer designed for enterprise-level label production in logistics, manufacturing, and warehouse environments. With 203 dpi resolution, 8 ips print speed, and flexible connectivity options, this printer delivers reliable performance for high-volume barcode and compliance labeling without the complexity of larger systems.

Key Features

• 203 dpi resolution at 8 ips for sharp barcodes, text, and graphics
• Dual-mode printing: Direct Thermal or Thermal Transfer for cost optimization
• 4.09" maximum print width supports standard label formats
• 4 GB Flash and 1 GB DDR3 memory with 2 GB user storage for fonts and label forms
• 4.3" full-color touchscreen for intuitive operation and job management
• Tool-free printhead and platen roller replacement minimizes maintenance downtime
• Supports media rolls up to 5" outer diameter with 1" to 4.1" width range
• Ribbon capacity up to 984 ft for extended production runs
• Multiple connectivity: USB 2.0, Ethernet, Wi-Fi, Bluetooth, and NFC

Technical Specifications

• Print Method: Direct Thermal / Thermal Transfer
• Resolution: 203 dpi
• Print Speed: 8 inches per second
• Maximum Print Width: 4.09"
• Memory: 4 GB Flash, 1 GB DDR3, 2 GB user storage
• Media Width Range: 1" to 4.1"
• Maximum Media Roll Diameter: 5"
• Maximum Ribbon Length: 984 ft
• Display: 4.3" full-color touchscreen
• Connectivity: USB 2.0, Ethernet, Wi-Fi, Bluetooth, NFC
• Dimensions: 7.0" × 9.375" × 8.4375"
• Weight: 7.3 lbs
• Power Input: AC 100-240V, 50/60Hz
• Operating Temperature: 32°F to 104°F

Ideal Applications

• High-volume shipping and logistics label printing
• Manufacturing product identification and tracking labels
• Warehouse inventory, routing, and bin labeling
• Regulatory compliance and food/pharmaceutical labeling
• Return and RMA label generation

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO CT4-LX strikes an excellent balance between capability and footprint for organizations outgrowing label roll solutions but not requiring industrial-scale printers. The dual thermal mode flexibility is particularly valuable—direct thermal mode eliminates ribbon costs for temporary labels (shipping, returns), while thermal transfer accommodates permanent labels on synthetic media. The 203 dpi resolution meets GS1 and most regulatory barcode standards without sacrificing speed.

Built-in Wi-Fi and Bluetooth connectivity reduce infrastructure demands, and the intuitive 4.3" touchscreen minimizes training time. For IT teams managing diverse endpoints, the standard Ethernet connection integrates seamlessly into enterprise label management systems. The tool-free maintenance design is pragmatic for busy operations—printhead replacement typically causes 10-15 minutes of downtime rather than hours.

This printer is best suited for organizations printing 500-2,000 labels daily across multiple SKUs or locations.
