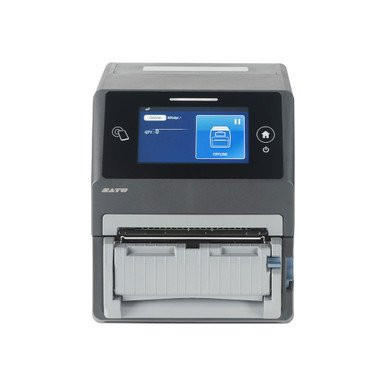

SATO CT4-LX 203dpi Desktop Thermal Printer – WWCT01041-NDR
The SATO WWCT01041-NDR is a compact, enterprise-grade desktop thermal printer engineered for high-volume label production in logistics, manufacturing, and warehouse environments. Combining direct thermal and thermal transfer printing capabilities with a 4.3-inch full-color touchscreen interface, this printer delivers professional-quality barcode and text output at 203 dpi resolution with print speeds up to 8 inches per second.
Key Features
- 203 dpi resolution for crisp barcode and text output
- 8 ips print speed for high-throughput label production
- 4.09-inch maximum print width accommodates standard and custom label formats
- Direct thermal and thermal transfer printing modes for flexible label material options
- 4.3-inch full-color touchscreen for intuitive operation and configuration
- Tool-free printhead and platen roller replacement minimizes maintenance downtime
- 4 GB Flash and 1 GB DDR3 memory with 2 GB user-accessible storage
- Quad connectivity: USB 2.0, Ethernet, Wi-Fi, and Bluetooth
- Media roll capacity up to 5-inch outer diameter
- Ribbon support up to 984 feet for extended printing sessions
- Day/night operation mode for 24/7 facility deployment
Technical Specifications
Printing Performance: 203 dpi resolution | 8 ips maximum speed | 4.09-inch print width
Media Support: 1-inch to 4.1-inch widths | 1.5-inch cores | 5-inch maximum roll diameter
Memory & Storage: 4 GB Flash | 1 GB DDR3 | 2 GB user storage for fonts and forms
Connectivity: USB 2.0, Ethernet, Wi-Fi, Bluetooth
Display: 4.3-inch full-color touchscreen
Physical: 7.0" W x 9.375" D x 8.4375" H | 7.3 lbs
Power: AC 100-240V, 50/60Hz | Operating temperature 32°F to 104°F
Typical Applications
- High-volume shipping and logistics label production
- Manufacturing part identification and work-in-process tracking
- Warehouse inventory management and routing labels
- Compliance and regulatory labeling
- Retail and distribution center operations
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CT4-LX represents SATO's commitment to accessibility without compromising performance. The full-color touchscreen eliminates the learning curve associated with legacy printer interfaces, while quad connectivity—including Wi-Fi and Bluetooth—integrates seamlessly into modern warehouse management systems and IoT ecosystems. The dual printing mode (direct thermal and thermal transfer) provides operational flexibility: direct thermal reduces consumable costs for temporary labels, while thermal transfer handles durable, long-term identification needs.
The tool-free maintenance design is particularly valuable in high-utilization environments where printhead wear requires frequent replacement. The 203 dpi resolution strikes an optimal balance between output quality and speed, suitable for barcode symbologies used in GS1 and pharmaceutical labeling. The 4 GB on-device storage and 2 GB user partition enable offline operation and custom font/form management, reducing dependency on external label design software. Day/night mode and robust temperature tolerance (32°F to 104°F) support 24/7 operations in diverse facility conditions, from climate-controlled distribution centers to unheated loading docks.
