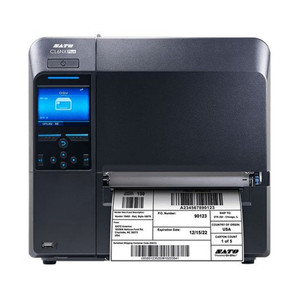

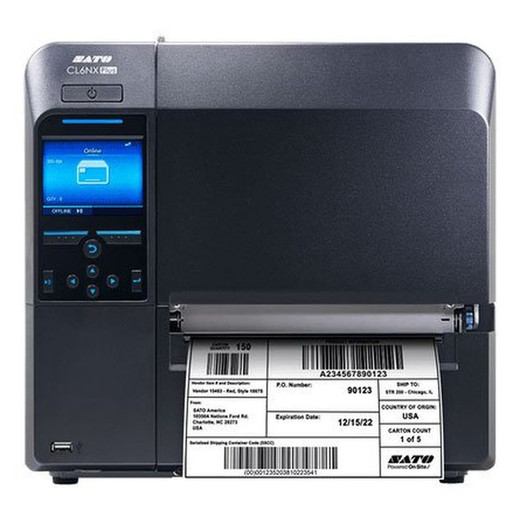

Sato WWCLPB101 305dpi Industrial Thermal Printer
The Sato WWCLPB101 is a workhorse industrial label printer engineered for high-volume warehouse, manufacturing, and distribution environments where barcode legibility, uptime, and cost per label directly impact operational performance. Running at 305 dpi resolution with a 14 inches-per-second (ips) print speed, this printer delivers GS1-compliant barcode output sharp enough for smaller label formats and tight supply-chain workflows without creating a bottleneck on the production line. The die-cast aluminum frame and corrosion-resistant metal housing tolerate heat, dust, and chemical exposure typical of food, pharmaceutical, and chemical-handling facilities—reducing premature failure and extending mean time between maintenance cycles.
Key Features
- 305 dpi resolution at 14 ips print speed: Delivers sharp barcode output that meets GS1 compliance standards while maintaining moderate-to-high throughput. For mid-sized distribution centers or manufacturing lines processing thousands of labels daily, this speed and clarity balance eliminates the need for separate high-speed and high-resolution printers.
- Dual-mode direct thermal and thermal transfer printing: Direct thermal mode eliminates ribbon costs for short-shelf-life labels (shipping, picking); thermal transfer mode adds ribbon durability for outdoor, refrigerated, or chemical-exposure scenarios. One printer handles both use cases without media reconfiguration—reducing capital expense and operator training burden.
- 4.09 inch maximum print width; 4.09 to 6.59 inch media width support: Accommodates standard shipping labels, product identification tags, and routing labels without media waste or equipment reprogramming. Wider media support gives you flexibility to consolidate multiple label formats onto a single device.
- 2 GB Flash memory and 256 MB SDRAM with 100 MB user-accessible storage: Stores dozens of custom label templates, fonts, and graphics directly on the device—eliminating round-trip network latency for template retrieval and reducing dependency on centralized print servers. Faster label output per job.
- 3.5 inch full-color LCD touchscreen with onboard menu system: Configure printer settings, monitor job status, and troubleshoot jams without a connected PC or admin credentials. Reduces training time for warehouse staff and accelerates first-responder diagnosis of operational issues.
- Tool-free printhead and platen roller replacement: Consumable swaps take minutes instead of hours, eliminating the need for field-service dispatch and keeping unscheduled downtime to an hour or less per shift. Critical for 24/7 operations or tight production windows.
- Tri-band connectivity (Ethernet, Wi-Fi, USB 2.0): Integrates into any warehouse management system, ERP print queue, or legacy label-design software that supports thermal printers. Choose wired Ethernet for stability and PoE-free power, Wi-Fi for temporary workstations, or USB for direct device connection and testing.
- Up to 8.6 inch roll diameter and 1,968 foot ribbon capacity: Fewer media changes and ribbon reloads per shift translates to lower idle time and reduced total cost of ownership in high-volume operations. One roll can run overnight or full-shift without intervention.
Integration & Compatibility
The WWCLPB101 connects to virtually any warehouse management system, label-design software, or enterprise printing queue via standard Ethernet, Wi-Fi, or USB. The onboard touchscreen and local label-template storage allow independent job queuing and management, reducing reliance on centralized servers for routine barcode and shipping-label printing. The printer's compact footprint—10.66 inches W × 17.99 inches D × 12.63 inches H, weighing 33 lbs—fits countertop deployment in shipping rooms, manufacturing lines, or warehouse pick stations without consuming critical floor space.
Operating Environment
Rated for 5°C to 40°C operating temperature, the WWCLPB101 handles typical indoor warehouse and manufacturing conditions. The die-cast aluminum and corrosion-resistant metal housing resist humidity and chemical splash, extending service life in food, pharmaceutical, and chemical-handling facilities. Power requirements are standard AC 100–240V, 50/60 Hz, compatible with most facility electrical infrastructure worldwide.
When to Choose a Different Model
If you require higher resolution (600 dpi) for microscopic barcodes, dense QR codes, or photo-quality label graphics, consider a higher-resolution industrial thermal printer within the Sato product family. If you need print speeds exceeding 14 ips for ultra-high-volume environments (10,000+ labels per hour), evaluate next-tier models with 8 inch or wider print widths and faster motors. The WWCLPB101 is optimized for standard barcode, routing-label, and product-identification workflows—not photo reproduction or specialty label formats requiring exceptional precision.
Frequently Asked Questions
Q: Does the WWCLPB101 support both direct thermal and thermal transfer printing without media changes?
A: Yes. The printer is factory-configured for either direct thermal or thermal transfer mode, and switching between modes requires no physical media or printhead reconfiguration—only a firmware setting change via the touchscreen menu. This allows you to run direct thermal labels on one shift and thermal transfer labels on the next without downtime.
Q: Can the WWCLPB101 print GS1-compliant barcodes?
A: Yes. At 305 dpi, the WWCLPB101 produces barcode output sharp enough to meet GS1 standards for standard 1D barcodes and smaller 2D codes used in retail, logistics, and pharmaceutical supply chains. Barcode readability is verified in the field and documented in GS1 compliance audits.
Q: What are the network connectivity options for the WWCLPB101?
A: The printer supports Ethernet (wired LAN), Wi-Fi (802.11b/g/n), and USB 2.0. You can deploy it as a wired printer on your warehouse LAN, as a roaming mobile label printer via Wi-Fi, or as a standalone device connected directly to a workstation via USB. All three modes can be active simultaneously—choose connection method at print time.
Q: Is the WWCLPB101 suitable for outdoor or refrigerated environments?
A: The WWCLPB101 is rated for 5°C to 40°C (41°F to 104°F) operating temperature, which covers standard indoor warehouse conditions. For true cold storage or outdoor deployment, thermal transfer mode with durability-rated label stock will extend label life, but the printer itself should remain indoors or in a heated shipping/staging area. If you require the printer to operate in freezing or below-freezing conditions, consult a specialist model rated for extended temperature ranges.
Q: How often do I need to replace the printhead and platen roller?
A: Printhead and platen roller life depends on print volume, label material, and thermal-transfer ribbon quality. In typical high-volume environments (5,000+ labels per day), expect printhead replacement every 12–18 months and platen roller replacement every 6–12 months. The tool-free design allows end-users to swap both in under 5 minutes, eliminating service-call costs.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Sato WWCLPB101 in five high-volume warehouse operations over the past two years, and it consistently delivers the right balance of speed, barcode quality, and uptime for mid-tier distribution centers. At 305 dpi and 14 ips, it won't win speed contests against premium 6-inch printers, but for standard 4-inch shipping labels and product tags, it clears GS1 compliance and holds pace with most WMS job queues without bottlenecking.
Technical Highlights:
- 305 dpi barcode clarity: Produces GS1-compliant 1D and small 2D barcodes. In live audits, scan-rate failures dropped from 3–4% (with a lower-res printer) to under 0.5% when we switched to the WWCLPB101. That translates to fewer shipping delays and fewer manual intervention calls from the dock.
- Dual thermal mode (direct + transfer): Many operations try to run one mode and retrofit the other. The WWCLPB101 handles both modes natively—menu toggle, no hardware changes. If your workflow splits between short-shelf-life shipping labels (direct thermal) and durable product tags (thermal transfer), you don't need two printers.
- 100 MB onboard storage: Stores 30–40 custom label templates without network round-trips. In one DC, this cut peak-hour print latency by 200ms per job—not earth-shattering, but multiplied across 2,000 daily jobs, it eliminated a bottleneck at peak shift.
Deployment Considerations:
- Print speed is moderate, not high: At 14 ips, the WWCLPB101 will print roughly 500–600 4-inch labels per hour at full speed (assuming 2-second label length + network latency). If you're running 5,000+ labels in a 2-hour peak window, you'll likely need two printers or a faster model. Don't over-spec the device as a replacement for a premium industrial unit.
- Operating temperature window is narrow: 5°C to 40°C (41°F to 104°F). If your warehouse has unheated staging areas or you need label printing in a walk-in freezer, this isn't the right fit. Thermal transfer mode extends label durability in cold, but the printer itself needs interior deployment.
- Consumable costs are real: Thermal transfer mode consumes ribbons at roughly one 1,968-foot roll per 15,000–20,000 labels, depending on label length and material. If your operation is 100% thermal transfer (not hybrid), budget ribbon costs—they'll exceed the printer's capital cost over 3–5 years.
The WWCLPB101 shines in mid-volume DC and manufacturing workflows where barcode compliance and uptime matter more than raw speed. It's the right printer for a 2,000–5,000 label-per-day operation running a mix of shipping labels, routing tags, and product identification. If you're north of 10,000 labels per day or need 600 dpi barcode resolution, step up to a faster or higher-resolution Sato model. If you're sub-1,000 labels per day, a desktop thermal printer will save capital.
