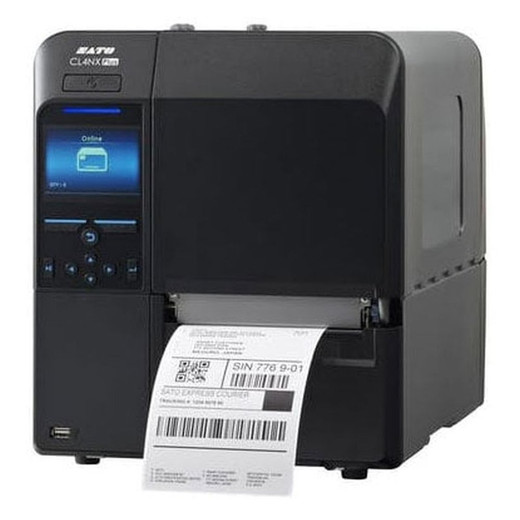

SATO CL4NX Plus 609dpi HF RFID Industrial Thermal Transfer Printer
The SATO WWCLP3801-WAR is a high-performance industrial thermal transfer printer engineered for enterprise-level RFID label production and barcode encoding. Combining 609 dpi resolution with integrated HF RFID (13.56 MHz) encoding capabilities, this printer delivers sharp, scannable output alongside reliable tag encoding for asset tracking, supply chain visibility, and item-level inventory management. The cast aluminum frame and corrosion-resistant construction ensure durability in demanding manufacturing and logistics environments.
Key Features
- 609 dpi print resolution for crisp barcode and text output
- 14 ips print speed with 4.09" maximum print width
- HF RFID encoding at 13.56 MHz with SATO RF Analyze auto-optimization
- 2 GB Flash and 256 MB SDRAM with 100 MB user storage for forms and fonts
- Multi-connectivity: Ethernet, Wi-Fi, and USB 2.0
- 3.5" Full-Color LCD touchscreen for intuitive operation
- Tool-free printhead and platen roller replacement
- Media roll capacity up to 10" diameter; ribbon support to 1,968 ft
- Wide media width range: 0.87" to 5.04"
- Cast aluminum frame with rugged construction
Technical Specifications
Print Performance: Direct thermal and thermal transfer capable at 14 ips with 609 dpi resolution and 4.09" maximum print width. Supports 0.87" to 5.04" media widths on standard 1" or 3" cores.
RFID Capabilities: HF frequency (13.56 MHz) with integrated SATO RF Analyze function for automatic antenna optimization. Ensures consistent encoding across varying inlay types without manual recalibration, reducing setup time and improving reliability.
Memory & Storage: 2 GB Flash memory, 256 MB SDRAM, and 100 MB user-accessible storage enable storage of multiple label formats, fonts, and graphics without external dependencies.
Connectivity: Ethernet, Wi-Fi, and USB 2.0 provide flexible network and direct connection options suitable for factory floor integration or centralized label production environments.
Display & Operation: 3.5" Full-Color LCD enables intuitive navigation and real-time status monitoring. Tool-free printhead and platen roller design minimizes scheduled maintenance downtime.
Physical Specifications: Dimensions 10.66" × 17.99" × 12.63"; weighs 33 lbs. Operating temperature range: 41°F to 104°F. AC power input 100–240V, 50/60 Hz.
Typical Applications
- HF RFID tag encoding and verification for asset tracking and management
- Smart label production for pharmaceutical, retail, and logistics supply chains
- Manufacturing-level RFID item tracking and serialization
- Automated inventory management systems with encoded tag verification
- Enterprise barcode and RFID label consolidation
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CL4NX Plus 609dpi combines high-resolution thermal printing with integrated HF RFID, positioning it as a consolidated solution for facilities requiring both barcode and tag encoding on the same platform. The SATO RF Analyze auto-optimization feature significantly reduces RFID configuration complexity—a critical advantage in multi-product environments where inlay types vary. The 14 ips speed and 609 dpi resolution deliver industrial-grade output quality suitable for regulated industries.
Dual memory (2 GB Flash + 256 MB SDRAM) and 100 MB user storage provide sufficient capacity for complex label templates without network dependency. Multi-connectivity (Ethernet, Wi-Fi, USB) and Full-Color LCD interface make integration straightforward in modernized manufacturing and logistics operations. The tool-free printhead design and cast aluminum frame reflect SATO's focus on uptime and durability in demanding production environments.
This printer is best suited for mid-to-large volume enterprises consolidating RFID and barcode production onto a single device.
Product Documentation
