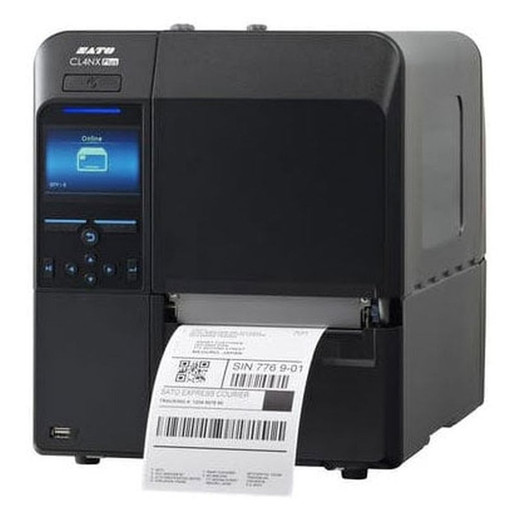

SATO CL4NX Plus 609dpi HF RFID Industrial Printer

SATO CL4NX Plus 609dpi HF RFID Industrial Thermal Transfer Printer

The SATO WWCLP3B01-WAR is an enterprise-grade industrial thermal transfer printer engineered for high-volume RFID label production. Combining 609 dpi resolution with integrated 13.56 MHz HF RFID encoding capabilities, this printer delivers precision barcode output and reliable tag encoding in demanding manufacturing and supply chain environments. Built with a rigid cast aluminum frame and corrosion-resistant materials, the CL4NX Plus excels in harsh industrial settings while maintaining compact footprint versatility.

Key Features

• 609 dpi resolution with 14 ips print speed for crisp barcode and text output
• HF RFID encoding at 13.56 MHz with SATO RF Analyze auto-optimization for antenna tuning
• 4.09" maximum print width supporting media from 0.87" to 5.04"
• 2 GB Flash and 256 MB SDRAM with 100 MB user storage for fonts and custom forms
• 3.5" Full-Color LCD touchscreen for intuitive configuration and monitoring
• Tool-free printhead and platen roller replacement to minimize maintenance downtime
• Multi-protocol connectivity: Ethernet, Wi-Fi, and USB 2.0
• Supports media rolls up to 10" outer diameter with ribbon capacity to 1,968 ft
• Rigid cast aluminum construction with corrosion-resistant coating

Technical Specifications

• Print Method: Direct Thermal and Thermal Transfer
• Resolution: 609 dpi
• Print Speed: 14 inches per second
• Maximum Print Width: 4.09 inches
• Media Width Range: 0.87" to 5.04"
• Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage
• Display: 3.5" Full-Color LCD
• Connectivity: Ethernet, Wi-Fi, USB
• RFID Frequency: 13.56 MHz HF
• Operating Temperature: 41°F to 104°F (5°C to 40°C)
• Power Input: AC 100-240V, 50/60Hz
• Dimensions: 10.66" x 17.99" x 12.63"
• Weight: 33 lbs (15 kg)

Applications

• HF RFID tag encoding and verification for asset tracking and inventory control
• Smart label production for supply chain visibility and logistics optimization
• Item-level RFID tracking in manufacturing and warehousing operations
• Automated inventory management with real-time data capture
• Retail and pharmaceutical labeling with embedded RFID functionality

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO CL4NX Plus represents a mature industrial printing platform optimized for organizations requiring integrated RFID encoding in high-volume label production. The 609 dpi resolution at 14 ips balances output quality with throughput, suitable for detailed barcodes and compliance labeling. The SATO RF Analyze feature addresses a common RFID challenge—antenna tuning variability across different inlay designs—by automating optimization to ensure consistent encoding success rates regardless of tag type.

The Full-Color LCD and tool-free maintenance design reflect SATO's focus on operational efficiency, reducing training overhead and unplanned downtime. The rigid cast aluminum frame with corrosion resistance indicates suitability for food processing, chemical, and outdoor manufacturing environments. Multi-protocol connectivity (Ethernet, Wi-Fi, USB) provides integration flexibility for modern enterprise networks.

This printer is best suited for organizations with established RFID workflows and predictable media specifications; operations requiring extensive label customization or sub-1" media widths may require alternative solutions.
