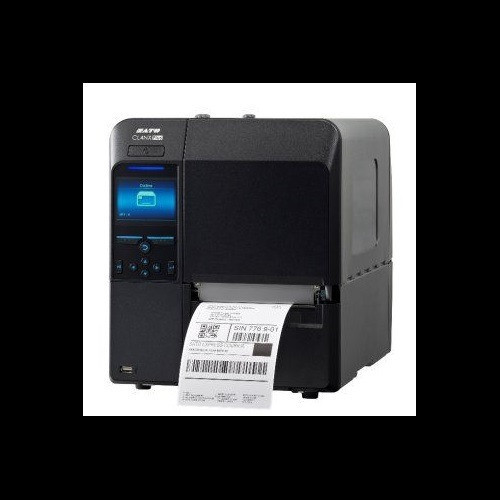

SATO CL4NX Plus 305dpi Industrial Thermal Transfer Printer

SATO CL4NX Plus 305dpi Industrial Thermal Transfer Printer – WWCLP2001-WMR

The SATO WWCLP2001-WMR is a high-performance industrial thermal transfer printer engineered for enterprise-grade label production in demanding environments. With 305 dpi resolution and 14 inches-per-second (ips) print speed, this CL4NX Plus series printer delivers crisp barcode and text output on labels up to 4.09" wide. Built on a rigid cast aluminum frame with corrosion-resistant materials, the WWCLP2001-WMR combines durability with intuitive operation, making it an ideal choice for high-volume shipping, manufacturing, and warehouse applications requiring reliable, consistent label output.

Key Features

• 305 dpi resolution at 14 ips for sharp barcode and text printing
• Dual print modes: Direct thermal and thermal transfer for media flexibility
• 4.09" maximum print width supports standard and custom label sizes
• 2 GB Flash and 256 MB SDRAM with 100 MB user storage for forms and fonts
• 3.5" full-color LCD display for intuitive control and navigation
• Tool-free printhead and platen roller replacement minimizes maintenance downtime
• Supports media rolls up to 10" outer diameter with 1" or 3" core sizes
• Ribbon capacity up to 1,968 feet (600 m) for extended print runs
• Multiple connectivity options: USB 2.0, Ethernet, Wi-Fi, RS-232C, Parallel, Bluetooth 3.0, and NFC
• Compact footprint: 10.66" × 17.99" × 12.63" (33 lbs)

Technical Specifications

• Print Method: Direct thermal and thermal transfer
• Resolution: 305 dpi
• Print Speed: 14 ips
• Maximum Print Width: 4.09"
• Media Width Range: 0.87" to 5.04"
• Media Cores: 1" or 3"
• Maximum Roll Diameter: 10"
• Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage
• Display: 3.5" full-color LCD
• Connectivity: USB 2.0, Ethernet, Wi-Fi, RS-232C, Parallel, Bluetooth 3.0, NFC
• Power Input: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F (5°C to 40°C)
• Dimensions: 10.66" × 17.99" × 12.63"
• Weight: 33 lbs (15 kg)

Typical Applications

• High-volume shipping and logistics labeling
• Manufacturing identification and asset tracking
• Warehouse inventory management and routing
• Compliance and regulatory labeling
• Healthcare and pharmaceutical labeling
• Retail and distribution center operations

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO WWCLP2001-WMR is purpose-built for organizations requiring industrial-grade label production without premium enterprise pricing. The 305 dpi resolution strikes an optimal balance between output quality and throughput, sufficient for most barcode standards and fine-detail graphics. Dual print mode capability ensures flexibility across thermal transfer ribbons and direct thermal media, reducing inventory complexity and enabling cost optimization based on label type and volume.

The 14 ips speed positions this printer in the mid-range for industrial thermal printing—suitable for moderate to high-volume operations without the footprint or cost of ultra-high-speed systems. Tool-free printhead replacement is a significant operational advantage, reducing maintenance expertise requirements and downtime. The 3.5" full-color LCD and SATO AEP standalone apps support streamlined configuration and troubleshooting.

Connectivity is comprehensive, with Ethernet, Wi-Fi, and USB enabling both wired and wireless deployment in networked environments. The 2 GB Flash storage is sufficient for most enterprise font libraries and custom label templates. For organizations deploying across multiple locations or requiring flexible media handling (0.87" to 5.04" width range), this printer offers solid value and reliability for long-term production environments.
