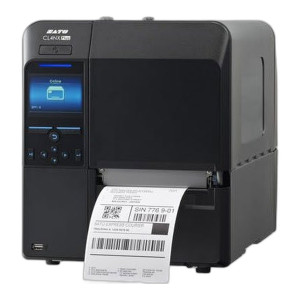

SATO CL4NX Plus WWCLP1101-WAN Industrial Thermal Transfer Printer
The SATO CL4NX Plus WWCLP1101-WAN is a high-performance industrial thermal transfer printer engineered for mission-critical labeling applications. With 203 dpi resolution and 14 ips print speed, this enterprise-grade system delivers crisp, scannable output for shipping labels, compliance documentation, and asset tracking. The dual-mode printing capability—supporting both direct thermal and thermal transfer—provides exceptional media flexibility for diverse operational requirements.
Key Features
- 203 dpi resolution at 14 ips for professional barcode and text output
- 4.09" maximum print width accommodates standard and custom label formats
- Dual print modes: direct thermal and thermal transfer for media versatility
- 2 GB Flash and 256 MB SDRAM with 100 MB user storage for forms, fonts, and custom graphics
- 3.5" full-color LCD touchscreen for intuitive operation and job status monitoring
- Tool-free printhead and platen roller replacement minimizes maintenance downtime
- Supports media rolls up to 10" outer diameter and ribbons to 1,968 ft
- Media width range: 0.87" to 5.04" on 1" or 3" cores
Connectivity & Integration
Multiple connectivity options—USB 2.0, Ethernet, and Wi-Fi—enable seamless integration into existing warehouse management systems (WMS), enterprise resource planning (ERP), and label design software. The printer supports standard label design formats and SATO's AEP standalone applications for rapid deployment without additional hardware.
Industrial-Grade Construction
Built with a rigid cast aluminum frame and corrosion-resistant materials, the WWCLP1101-WAN withstands demanding warehouse, manufacturing, and logistics environments. Operating temperature range of 41°F to 104°F ensures reliable performance across climate-controlled and outdoor shipping areas.
Technical Specifications
- Print Method: Direct Thermal / Thermal Transfer
- Resolution: 203 dpi
- Print Speed: 14 inches per second
- Max Print Width: 4.09"
- Memory: 2 GB Flash, 256 MB SDRAM, 100 MB user storage
- Interfaces: USB 2.0, Ethernet, Wi-Fi
- Display: 3.5" full-color LCD
- Media Capacity: 10" max roll diameter, 1,968 ft ribbon
- Dimensions: 10.66" W x 17.99" D x 12.63" H
- Weight: 33 lbs
- Power: AC 100-240V, 50/60Hz
Typical Applications
- High-volume shipping and logistics label production
- Manufacturing asset identification and work-in-process tracking
- Warehouse inventory management and routing labels
- Regulatory compliance and serialization labeling
- E-commerce fulfillment and parcel labeling
Karl WilsonPerspective based on aggregated and affiliated engineering team experience.
The CL4NX Plus WWCLP1101-WAN represents SATO's commitment to reliability in high-throughput label environments. The combination of 14 ips speed and 203 dpi resolution strikes an optimal balance for logistics operations requiring both throughput and barcode quality. Dual print modes eliminate the need for separate printer SKUs, reducing capital expenses and support complexity.
The tool-free printhead design directly reduces total cost of ownership by enabling in-house maintenance without experienced technicians callouts. Wi-Fi and Ethernet connectivity, paired with sufficient onboard memory, allow this printer to function as a standalone label station or integrate into enterprise print server architectures. For operations processing 500+ labels daily, this printer's media capacity (10" rolls) and ribbon length (1,968 ft) minimize changeovers and operator downtime—critical metrics in 24/7 fulfillment operations.
