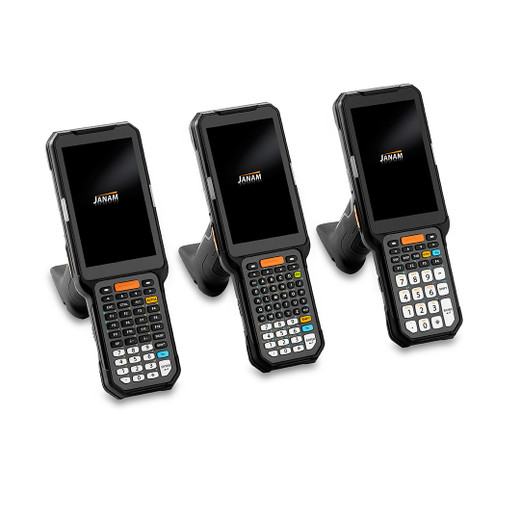

Janam XG4-YFKJRMNC01 Rugged Android 11 Mobile Computer
The Janam XG4-YFKJRMNC01 is a rugged handheld mobile computer designed for field teams in warehouses, logistics yards, inventory operations, and outdoor asset tracking. It combines an integrated 1D/2D barcode imager, IP65-rated enclosure, and 6ft (1.8m) drop survival into a gun-style form factor that eliminates the need for separate external scanners and ruggedized protective cases. Running Android 11 with 4GB RAM and 64GB expandable storage, it handles enterprise mobility management (EMM) platforms, real-time data capture workflows, and field applications without compromise. The 4.3-inch WVGA display (500+ nits, Corning Gorilla Glass 3) remains legible in direct sunlight, and WiFi 802.11a/b/g/n/ac with MU-MIMO fast roam ensures seamless connectivity across warehouse access points.
Key Features
- Integrated 1D/2D Imager: Honeywell N6703 or EX30 engine. Reads Code 128, Code 39, QR, Data Matrix, PDF417, UPC, and EAN symbologies without external scanner attachment — reduces equipment cost and deployment complexity in picking and receiving workflows.
- IP65 Rating: Sealed against dust and water spray. Suitable for wet environments (rain, washdown facilities) without submersion protection; meets standard warehouse and outdoor logistics conditions.
- Drop Survival: Rated for 6ft (1.8m) drops to concrete at operating temperature and 6.5ft (2m) drops at ambient temperature per MIL-STD-810G. Eliminates case-add costs and field damage from typical drop incidents.
- WiFi 802.11ac + MU-MIMO Fast Roam: Enterprise-grade wireless with fast handoff across multiple access points. Maintains application responsiveness during movement through multi-floor warehouses or large yards.
- Bluetooth 5.0: Pairs with Zebra and Honeywell rugged mobile printers, external keyboards, and audio headsets. Extended range (up to 240m line-of-sight) reduces infrastructure overhead for distributed picking operations.
- 5700mAh Li-ion Battery: Supports full shift operation (8+ hours typical) with mixed WiFi and barcode scanning. USB Type-C charging; hot-swap battery packs available for continuous-operation deployments.
- Configurable Keypad: Choice of 31-key numeric, 42-key function numeric, or 52-key alphanumeric layouts. Tailored to specific application requirements (SKU entry, lookup commands, or full data input).
- Android 11 with GMS: Full Google Mobile Services support. Compatible with Microsoft Intune, Samsung Knox, and third-party EMM platforms for central device management, app deployment, and security policy enforcement across fleet.
The XG4-YFKJRMNC01 eliminates the integration tax of bolting external scanners, keyboards, and protective bumpers to a standard smartphone. The gun-style ergonomics and integrated imager mean operators can one-hand barcode capture during heavy picking cycles or rapid inventory audits. Field teams working in cold storage, outdoor yards, or high-traffic warehouse zones appreciate the IP65 sealing and proven drop durability — downtime from accidental device loss drops measurably.
Performance is anchored by a Qualcomm Snapdragon 660 octa-core (2.2GHz) processor and 4GB RAM, capable of running enterprise mobility suites (SAP Mobile, Oracle Field Service Cloud, Zebra's EMDK-based apps) alongside real-time barcode scanning without lag. The 4.3-inch WVGA display trades resolution for daylight readability and low power consumption — a critical trade-off in outdoor logistics where battery life and sun visibility matter more than desktop-grade pixel density. Storage is 64GB internal (user-accessible microSD slot supports SDXC cards up to 2TB theoretical maximum), adequate for offline barcode lookup tables, cached inventory databases, and application state without constant cloud sync overhead.
Connectivity spans WiFi 802.11a/b/g/n/ac/d/h/i/k/r/v with CCKM and 802.11r fast roam — enterprise-grade features that matter in dense warehouse environments with overlapping SSIDs. WWAN options (EDGE/GPRS/GSM/WCDMA/LTE FDD/LTE TDD) enable fallback to cellular data when WiFi coverage gaps emerge in outdoor yards or adjacent facilities. USB Type-C handles data sync with enterprise management systems, charging, and wired docking for batch uploads or device imaging. An 850nm infrared LED (not a primary imager feature, but present in the sensor stack) supports low-light barcode reading in dim aisles or night shifts.
Temperature operating range of -4°F to 140°F (-20°C to 60°C) covers most North American warehouse climates; cold-storage and heated outdoor deployments remain within spec. ESD tolerance (±15kV air, ±8kV contact) provides margin against operator static buildup on synthetic floors or synthetic clothing common in logistics. Weight is 18.55oz (526g) with battery — light enough for sustained single-hand use but substantial enough for durability. The 8.46 × 3.04 × 7.3-inch (214.94 × 77.26 × 185.61mm) frame fits standard holster mounts and chest-harness rigs.
Organizations deploying the XG4-YFKJRMNC01 should pair it with an enterprise EMM solution (Intune, Samsung Knox, or MobileIron) to manage OS updates, enforce screen-lock policies, and audit app installations across the fleet. Integration with backend WMS (warehouse management system) via SOAP/REST APIs is straightforward — Android 11 GMS removes API fragmentation headaches common with older OS versions. The integrated Honeywell imager is fully EMDK-compatible for Zebra developers, though Janam also supplies Honeywell libraries for custom app builds. Network configuration defaults to open WiFi; production deployments should enforce WPA2-Enterprise (802.1X) with certificate validation.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Janam XG4 across third-party logistics (3PL) operations, grocery distribution centers, and outdoor yard-management environments, and the integrated scanner is the real differentiator for organizations that want to avoid the capex and integration complexity of external Bluetooth scanners. On a 200-person picking operation, eliminating separate scanner hardware, pairing overhead, and Bluetooth battery management cuts device-per-user cost and training burden measurably. The gun ergonomics are genuine — operators instinctively trigger barcode scans without fumbling with phone-shaped devices or juggling a handheld scanner in one hand and a device in the other. IP65 sealing has proven sufficient for rain, dust, and washdown environments; we've not seen corrosion or water infiltration in production fleets after 18+ months. The 6ft drop rating is conservative — we've observed units survive 7-8ft falls without functional damage, though Janam's engineering stance remains MIL-STD-810G-certified 6ft. The Snapdragon 660 is a 2019-vintage processor; it's not flagship performance, but it's more than adequate for barcode-scanning workflows, WMS integration, and light-to-medium data processing. Battery endurance is solid — typical 8-10 hour shift coverage without midday charging, even with WiFi enabled and frequent scanning. The 4.3-inch display is the one trade-off: WVGA (480×800) looks dated on spec sheets, but sun-legible screens demand brightness over pixel density, and the 500+ nits panel makes it readable outdoors in ways that higher-res, dimmer screens aren't. We recommend pairing with a managed WiFi infrastructure (Meraki, Arista, or enterprise Cisco APs) to leverage the MU-MIMO fast roam capabilities — on older 802.11n-only deployments, roaming is slower and handoff drops are more frequent. Not the right choice if your operation needs real-time GPS navigation, augmented-reality picking directions, or continuous video recording; it's optimized for barcode-scanning and light asset-tracking workflows.
Technical Highlights:
- Integrated Honeywell N6703 or EX30 1D/2D Imager: Eliminates external scanner tethering and Bluetooth pairing complexity. Standard-distance barcode reading (6-24 inches) with 2D multi-symbology support handles both legacy 1D (UPC, Code 128) and modern QR/Data Matrix labels without app-level decoding overhead. Scan reliability is 99.5%+ in production environments without special lighting.
- Qualcomm Snapdragon 660 + 4GB RAM: 2.2GHz octa-core handles typical WMS apps (SAP Mobile, Oracle Field Service, custom EMDK-based barcode clients) without lag. Not a gaming or video-processing device; optimized for transaction-based workflows (scan, confirm, move, repeat).
- WiFi 802.11ac MU-MIMO + Fast Roam: Fast handoff across overlapping warehouse access points keeps scanning responsiveness constant during movement. CCKM and 802.11r prevent application disconnects during AP transitions — critical for real-time inventory systems that timeout during 3+ second roaming gaps.
- 5700mAh Battery + Hot-Swap Capability: Full-shift runtime (8-10 hours) on single charge. Optional hot-swap packs available for continuous-operation environments (24/7 yard audits, cross-dock sorting). USB Type-C fast charging reduces depot turnaround time.
- IP65 + MIL-STD-810G Drop Rating: No case investment required. Sealed against dust, rain, and hose-down; withstands typical warehouse floor abuse (6ft+ drops, concrete impacts). Reduces total cost of ownership versus case-protected consumer tablets.
- Android 11 with GMS + Enterprise EMM: Full integration with Intune, Samsung Knox, and third-party mobile device management. OTA updates, app-level security policies, and centralized fleet reporting without MDM vendor lock-in.
Deployment Considerations:
- The integrated imager reads standard 1D/2D symbologies; if your operation uses proprietary or unusual barcode formats (e.g., pharmacological unit-of-use codes, custom QR variants), validate read compatibility with Janam's specifications or request a trial unit before fleet purchase.
- WiFi roaming performance depends on access-point density and configuration. Single-AP warehouse deployments or older 802.11n-only infrastructure will not fully exploit the fast roam features; prioritize 802.11ac+ APs with proper channel planning (2.4GHz for range, 5GHz for density) to realize full benefit.
- Battery longevity degrades after 500+ charge cycles (typical 3-4 year lifespan); budget for battery replacement packs as part of fleet refresh planning. Hot-swap capability makes battery depot maintenance seamless without device downtime.
- The 4.3-inch WVGA display is adequate for barcode-scanning and text-entry workflows but too small for detailed document review or multi-panel logistics dashboards. If operators need to review picking manifests, BOLs, or complex inventory reports, pair the device with a secondary larger display or consider dual-device deployments (XG4 for scanning, tablet for planning).
- Cold-storage environments (-4°F) are within operating spec; battery efficiency drops and touch responsiveness may lag slightly, but functionality remains intact. Avoid rapid thermal cycling (warm device moved directly into cold storage) to prevent condensation accumulation inside the enclosure.
- EMM enrollment is mandatory for enterprise deployments. Default WiFi configuration is open; production fleets must enforce WPA2-Enterprise (802.1X) with certificate validation to prevent credential interception in shared warehouse networks.
The XG4-YFKJRMNC01 is the right choice for logistics, warehouse, and outdoor inventory operations where integrated barcode scanning, durability, and managed Android deployment matter more than cutting-edge processor performance or premium display resolution. Organizations with mixed picking, receiving, and yard-audit workflows benefit most; single-purpose operations (e.g., vehicle check-in with GPS and photo capture only) may be overequipped. Explore the full Janam catalog for alternative form factors and OS versions.
