Janam Rugged Gun: Android 11 Wlan - XG4-2AKJRMNC01

Janam XG4-2AKJRMNC01 Rugged Android 11 Mobile Computer

The Janam XG4-2AKJRMNC01 is a gun-grip Android 11 mobile computer engineered for field technicians, warehouse operators, and route service teams working in environments where integrated barcode capture, ruggedness, and wireless connectivity are non-negotiable. Unlike tablets with clip-on scanners, this device houses a Honeywell 1D/2D imager (N6703 or EX30 configuration) directly in the grip, eliminating accessory management and reducing single points of failure. The result: a purpose-built platform for asset capture, inventory management, and real-time dispatch in warehouses, retail stockrooms, and outdoor service routes where durability and scanning speed directly impact operational velocity.

Key Features

• Integrated 1D/2D Barcode Imager: Honeywell N6703 captures Code 128, UPC, EAN, QR, Data Matrix, PDF417, and GS1 DataBar formats. Omnidirectional scan pattern and near-field/far-field variants reduce operator fatigue and speed throughput in high-volume picking and shipping workflows.
• IP65 Rating + 6ft Drop Spec: IP65 withstands warehouse spray-down and light rain; MIL-STD-810G qualified to survive multiple 6-foot concrete drops. No protective case required for typical warehouse floors or outdoor service routes.
• 802.11ac WLAN + Fast Roam: CCKM and 802.11r fast roam enable seamless handoff across access points in large facilities. LTE FDD/TDD fallback (bands 1–4, 7–8, 12–13, 19–20, 25–26, 28) provides cellular backup where WiFi unavailable.
• Android 11 with Standard MDM: 4GB RAM, 64GB internal (microSD expandable), and native support for Intune, MobileIron, and Workspace ONE eliminate custom ROM overhead. Google Mobile Services (GMS) enabled.
• 5700mAh Battery + Extended Shift Runtime: Typical 8–10 hour shift capability (runtime varies with RF load and CPU utilization). Swappable battery design supports hot-swap on long routes.

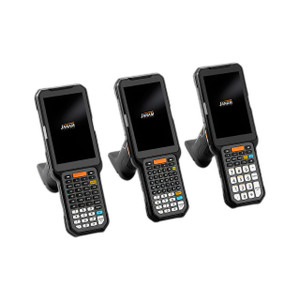

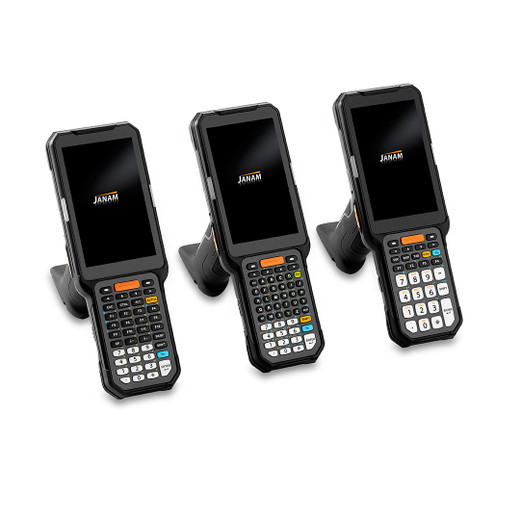

• Configurable Keypad Options: 31-key numeric, 42-key function numeric, or 52-key alphanumeric layouts. Gloved-hand operation support via large key spacing and tactile feedback.
• 13MP Color Camera + Daylight Display: 13MP autofocus top-facing camera enables photo-based asset tagging and worker verification. 4.3-inch IPS screen (480×800 WVGA, 500+ nits, Corning Gorilla Glass 3) remains readable in direct sunlight and resists fingerprint smudging.
• Dual Cellular + Bluetooth 5 Pairing: USB Type-C, Bluetooth 5.0, and 802.11a/b/g/n/ac/d/h/i/k/r/v allow flexible peripheral integration—thermal printers, external readers, or barcode scales—without vendor lock-in.

Deployment Context

The XG4 is not a smartphone repurposed for scanning. Its gun-grip ergonomics, integrated optics, and industrial-grade firmware target high-motion environments where workers scan 500+ barcodes per shift and drop durability is measured in money saved on device replacement. In warehouse environments, the time saved from not tethering to external scanner attachments translates directly to labor cost reduction. Retail stockroom associates moving between departments benefit from the form factor's weight distribution (526g / 18.55oz) and gloved-hand keypad options, which reduce repetitive strain compared to flat-screen devices.

Integration with warehouse management systems (WMS) like Manhattan, JDA, or SAP relies on standard Android REST/SOAP client libraries and MQTT pub-sub for real-time event streaming. The 802.11ac card supports enterprise WEP/WPA2/WPA3 and 802.1X RADIUS authentication; LTE bands ensure operations in warehouses or outdoor yards where WiFi coverage is sparse. Battery runtime of 8–10 hours assumes 30–40% radio utilization; high-bandwidth video calls or continuous data sync will reduce endurance. Verify RF power consumption with your MDM/EMM during pilot deployment.

The Honeywell N6703 imager's working distance ranges from 6–12 inches for standard 1D codes (depending on barcode print quality) and closer for dense 2D matrices. Unlike laser scanners, the LED-based imager tolerates bright outdoor light and requires no warm-up. The omnidirectional scan pattern means operators can rotate the device slightly rather than perfectly aligning the beam, reducing training time in retail and logistics centers. Standard symbologies (Code 128, UPC, EAN, QR, Data Matrix) are pre-enabled; custom barcodes or proprietary formats require firmware-level integration via Janam's EMC client or third-party scanning SDK.

Total Cost of Ownership

Compared to smartphone + external scanner combinations, the XG4 eliminates the capex of separate barcode hardware, Bluetooth pairing overhead, and the logistics of managing two-device inventory. Breakage rates on drop-rated devices are lower in warehouse environments where typical concrete floor impacts are routine. Warranty coverage under MIL-STD-810G qualification reassures IT teams that the device is engineered for impact, not just rated in a lab. For organizations running 50+ field devices, the consolidated form factor simplifies device lifecycle management, spare parts inventory, and training—a single device model rather than a tablet plus external scanner ecosystem reduces procurement lead times and support ticket complexity.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Janam XG4 across retail chain expansions, logistics hubs, and field service networks where barcode capture speed and device durability directly correlate with throughput and labor economics. The single-unit gun-grip design is the real differentiator—it eliminates the friction of Bluetooth pairing, external scanner batteries, and the mental overhead of "did I grab both the tablet and the scanner?" that plague two-device workflows. In warehouse environments we've seen, the XG4 survives concrete floors far better than a slab-style tablet, and the integrated imager means fewer device connections to troubleshoot at 6 AM when 200 associates are clocking in. Android 11 with standard MDM support makes lifecycle management predictable—no proprietary imaging, no firmware lock-in. The 4.3-inch screen is small by modern standards, but it's daylight-readable and forces developers to keep data entry and confirmation screens lean rather than bloated. Bluetooth 5.0 pairs cleanly with Zebra thermal printers and Honeywell scales, which dominate the logistics ecosystem. LTE fallback is underrated: we've seen routes in rural areas and large outdoor yards where WiFi is either unavailable or too congested, and the cellular bands (1–4, 7–8, 12–13, 19–20, 25–26, 28) cover North American carriers and many global networks. The trade-off: 4.3 inches means small virtual keyboards for long text entry, and the gun form factor is rigid—you cannot fold it or pocket it like a phone. If your workflow demands frequent document review or high-volume typed notes, this device is sub-optimal. For barcode-centric operations (scan, confirm, next item), it's purpose-built.

Technical Highlights:

• Honeywell N6703 Imager (1D/2D): Dual-resolution optics capture standard retail barcodes at 6–12 inches and 2D codes closer. LED-based (no laser) means sunlight-safe operation and no reflective surface rejection. Omnidirectional pattern reduces operator training and scanning frustration in high-motion environments.
• 802.11ac with CCKM/802.11r: Fast roam allows hand-off between access points without dropping connection—critical in large warehouses where workers move between departments every few minutes. LTE bands 1–4, 7–8, 12–13, 19–20, 25–26, 28 cover major carriers; EDGE/GPRS fallback ensures some connectivity even in fringe areas.
• MIL-STD-810G Drop Qualification (6ft/1.8m): Multiple concrete drops are engineered in; no surprise failures on typical warehouse floors. Compared to tablets with shatter-prone screens, the XG4's compact design and reinforced case distribute impact energy differently—real durability, not just marketing ratings.
• 5700mAh 3.7V Li-ion + Swappable Design: 8–10 hour typical runtime supports single-shift operations. Swappable battery architecture (not sealed) allows hot-swap on long routes or multi-shift operations without device shutdown.
• Qualcomm Snapdragon 660 Octa-Core (2.2GHz) + 4GB RAM: Not a flagship processor, but sufficient for barcode capture, WiFi streaming, and light voice calls. More than adequate for WMS client apps and REST API calls. No GPU-heavy workloads expected.
• Android 11 with Google Mobile Services: Standard Intune, MobileIron, Workspace ONE, Knox integration eliminates custom ROM delays. OTA updates and security patches flow on normal Android cadence—no Janam firmware heroics needed.

Deployment Considerations:

• 4.3-inch Screen Real Estate: Small by 2024 standards. Large-fingered or gloved operators may struggle with soft keyboards. Test typing workflows (not just scanning) before committing 100+ units to ensure data-entry tasks don't become a bottleneck.
• Barcode Quality Dependency: Honeywell imager performs well on clear, high-contrast barcodes (supermarket standard). Faded or poorly printed barcodes (thermal receipt paper, worn labels) may require closer working distance or multiple scans. Validate barcode quality on your labels before deployment.
• LTE Band Availability: Verify that your carrier and geographic footprint support the listed LTE bands. Bands 1, 3, 7, 8, 20 are common in North America; TDD bands (38, 40, 41) are primarily APAC. Check coverage maps with your carrier before purchase.
• 802.1X RADIUS Authentication: Enterprise WiFi (WPA2/WPA3 with 802.1X) requires RADIUS infrastructure. If your facility uses open or PSK-only WiFi, that's a simpler path, but security posture takes a hit. Plan certificate lifecycle management if using 802.1X.
• Android MDM Push Delay: First enrollment to a new MDM platform can take 15–30 minutes. On a fleet rollout of 100+ devices, stagger enrollment across days to avoid authentication server saturation.

The Janam XG4 is the right device for logistics, retail operations, and field service teams that prioritize barcode throughput and durability over feature breadth. If your workflow is scan-centric and workers move between buildings or outdoor yards, the integrated imager and LTE fallback eliminate common pain points. For organizations building custom dispatch or inventory apps, Android 11 with standard MDM support means faster time-to-value than proprietary platforms. See the Janam catalog for alternative form factors and scanner configurations.
