Vertiv Rpdu Switched Unit Level Monitoring 80A 208V Delta 28.8KW Vertical (24) CO - VP5NA0A0

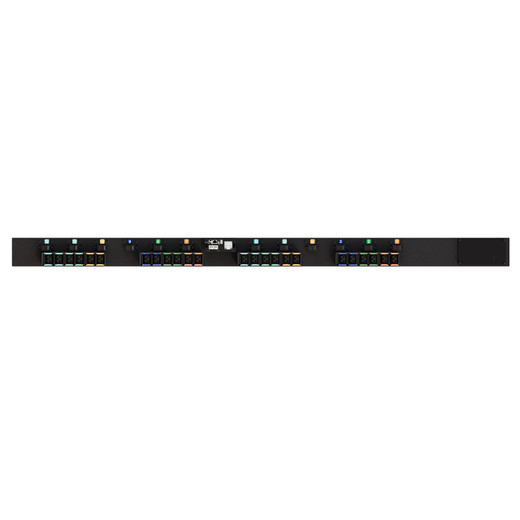

Vertiv VP5NA0A0 Switched Rack PDU with Outlet-Level Monitoring

Overview

The Vertiv VP5NA0A0 is a high-density 80A, 28.8kW switched rack PDU engineered for dense compute environments where per-outlet visibility and remote control aren't optional — they're the difference between a managed power event and an unplanned outage. This 0U vertical unit supports both single-phase 240V and three-phase 208V delta input, making it deployable across a wide range of facility power configurations without re-purchasing hardware. With 24 combination C13/C19 outlets, hardwired input, and a hot-swappable IMD-5M intelligent monitoring device, the VP5NA0A0 is built for data centers, colocation cabinets, and high-availability server rows where downtime is unacceptable.

Unlike basic metered PDUs, the VP5NA0A0 delivers outlet-level switching — meaning you can power-cycle an individual server, NAS unit, or network device from a remote console without dispatching a technician to the floor. Combined with dual gigabit Ethernet and serial connectivity, integration into existing DCIM platforms and out-of-band management networks is straightforward.

Key Features

• 80A, 28.8kW Capacity: Running a fully loaded cabinet with high-density compute or GPU nodes? At 28.8kW of usable capacity, this PDU handles aggressive power budgets without requiring a second unit — reducing per-rack cabling complexity and outlet contention.
• Outlet-Level Switching (24 Combination C13/C19): Each of the 24 outlets can be individually switched on, off, or sequenced remotely. Combination C13/C19 ports accept both standard server power cords and high-draw devices with C20 plugs — you won't need adapters for mixed workloads.
• 1~ 240V / 3~ 208V Dual Input Support: Whether your facility runs single-phase 240V or three-phase 208V delta, one SKU covers both. This matters for deployments spanning multiple data halls or colocation sites with different utility feed configurations.
• Hot-Swappable IMD-5M: The intelligent monitoring device can be replaced without powering down the PDU or the connected equipment. For 24/7 environments, this eliminates the maintenance window requirement for firmware updates or IMD hardware replacements — a meaningful operational advantage.
• Dual Gigabit Ethernet: Two independent network ports allow connection to both primary and out-of-band management networks simultaneously. If your primary management VLAN goes down, you retain remote access through the secondary path — which is exactly when you need it most.
• Daisy-Chain Up to 50 Devices: A single IP address can manage up to 50 daisy-chained units. In large colocation deployments or multi-row data halls, this dramatically reduces the number of management IPs and switch ports consumed by PDU infrastructure.
• P-Lock Compatible Outlets: P-Lock locking power cords physically secure the connection at the outlet, eliminating accidental disconnects from cord weight or cable management pressure — relevant in high-density racks where cord congestion is unavoidable.
• TAA Compliant: Meets Trade Agreements Act requirements, qualifying the VP5NA0A0 for U.S. federal agency procurement, GSA schedules, and government IT contracts where domestic sourcing compliance is mandated.
• 0U Vertical Form Factor: Mounts vertically in the rack's zero-U space (side channel), preserving all 42U of rack unit space for revenue-generating equipment. No rack units sacrificed for power distribution.

Integration & Compatibility

The VP5NA0A0 connects to DCIM and infrastructure management platforms via dual gigabit Ethernet and serial interfaces. The hardwired input design (no plug, direct panel connection) is standard for high-amperage PDUs at this capacity tier — your facilities team will handle the feed connection, typically from a 100A breaker to accommodate the 80A draw. Vertiv's IMD-5M provides the monitoring and switching intelligence; because it's hot-swappable, the unit remains compatible with future IMD generations as Vertiv releases firmware and hardware updates without requiring PDU replacement. The daisy-chain capability (up to 50 units) integrates cleanly into rack PDU management architectures where a single controller manages an entire data hall row. For organizations building out Vertiv power infrastructure, the VP5NA0A0 slots naturally into Vertiv's broader ecosystem of UPS, thermal management, and DCIM tooling. Facilities deploying this alongside UPS systems should verify upstream breaker sizing — at 80A input, the feed circuit and transfer switch must be rated accordingly. See the rack PDU category for alternative capacity and monitoring tiers if your load profile is below 40A or requires three-phase balanced loading.

Frequently Asked Questions

Q: What is the warranty on the Vertiv VP5NA0A0?

A: The VP5NA0A0 carries a 3-year standard limited warranty, which extends to 5 years if the unit is registered within 120 days of purchase. Registration is the only step required to unlock the extended coverage.

Q: Does the VP5NA0A0 support both single-phase and three-phase input?

A: Yes. The VP5NA0A0 accepts 1~ 240V (single-phase) or 3~ 208V delta (three-phase) input. This flexibility lets you deploy the same PDU model across facilities with different utility feed configurations.

Q: Can I manage multiple VP5NA0A0 units from a single IP address?

A: Yes. The VP5NA0A0 supports daisy-chaining of up to 50 units under a single IP address via its serial daisy-chain port. This reduces management IP consumption and simplifies large-row deployments.

Q: Is the VP5NA0A0 TAA compliant?

A: Yes. The VP5NA0A0 meets Trade Agreements Act (TAA) requirements, making it eligible for U.S. federal procurement, GSA schedule purchases, and other government contracts requiring TAA-compliant sourcing.

Q: What does the hot-swappable IMD-5M mean for maintenance?

A: The IMD-5M (Intelligent Monitoring Device) can be removed and replaced while the PDU remains powered and all connected equipment stays online. This eliminates the need for a maintenance window to service or upgrade the monitoring module.

Q: What input connection type does the VP5NA0A0 use?

A: The VP5NA0A0 uses a hardwired (direct-wire) input, not a plug. This is standard for 80A-class PDUs and requires a licensed electrician to connect the unit to a dedicated 100A-rated circuit breaker during installation.

Karl Wilson

When I look at the VP5NA0A0, the spec that immediately matters for dense compute deployments is that 28.8kW capacity at 80A — most competitive-tier PDUs tap out at 20–24kW, so this unit gives you real headroom for high-draw GPU nodes or blade chassis without stacking a second PDU in the same rack. If you're specifying power for AI inference racks or hyperconverged rows, the VP5NA0A0's capacity tier is the starting conversation, not an afterthought.

Technical Highlights:

• Outlet-Level Switching: All 24 combination C13/C19 outlets are individually switchable — remote power cycling of specific devices without touching adjacent loads. For colocation providers, this means tenant-scoped control without physical access, which is operationally significant at scale.
• Hot-Swappable IMD-5M: The IMD can be swapped under load, which eliminates the only legitimate reason to schedule a maintenance window for PDU servicing. In SLA-constrained environments, that's a real design win.
• Dual Gigabit Ethernet: Primary plus out-of-band management network connectivity simultaneously. When the main network segment fails — which is typically when you need PDU access most — the secondary path stays live.

Deployment Considerations:

• The hardwired input is non-negotiable at 80A — plan for a licensed electrician and a 100A dedicated breaker. This isn't a plug-and-play installation; coordinate with facilities before the unit ships to the rack.
• The 3.8
