Vertiv Rpdu Monitored Unit Level 60A 208V Delta 28.8KW Vertical (24) Combination - VP4NA0A0

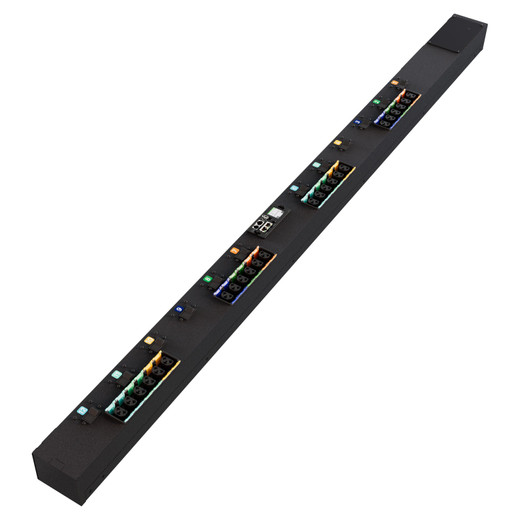

Vertiv VP4NA0A0 Monitored 0U Vertical Rack PDU

Overview

The VP4NA0A0 is the Vertiv PowerIT HD monitored rPDU built for high-density rack deployments where input-level power visibility and flexible outlet capacity are non-negotiable. It accepts a hardwired 1-phase 240V or 3-phase Delta 208V input at up to 80A, delivering 28.8kW of capacity through 24 combination C13/C19 outlets — so a single unit can simultaneously feed both standard 1U servers and higher-draw 2U/4U appliances without requiring a second PDU or outlet adapters. The 0U vertical form factor mounts in the rear rail of most standard racks, preserving every rack unit for active equipment. The hot-swappable IMD-5M monitoring module lets you swap the intelligence layer without powering down connected equipment — a meaningful operational advantage in 24/7 environments where a maintenance window is costly.

Compatibility

Designed for use within the Vertiv PowerIT HD series ecosystem. Remote management integrates natively with Vertiv Intelligence Director, which aggregates monitoring data across the daisy-chain — up to 50 VP4NA0A0 units can share a single IP address via the dual Gigabit Ethernet ports, reducing switch port consumption and simplifying DCIM integration in large deployments. P-Lock cable retention is compatible with P-Lock locking IEC power cords, preventing accidental disconnection in vibration-prone or high-traffic environments. The hardwired input plug means installation requires licensed electrical work and is not interchangeable with twist-lock or standard plug configurations — plan accordingly. TAA compliance makes this PDU eligible for US federal procurement environments. UL, RoHS, and China RoHS certifications confirm suitability for North American and export deployments.

Installation Notes

The 0U vertical profile measures 3.8" W x 3" D, fitting standard two-post and four-post racks; verify rear-rail depth clearance before ordering, particularly in shallow-depth enclosures under 800mm. The hardwired input requires a dedicated circuit — coordinate with your facilities or electrical team before deployment. The IMD-5M monitoring module connects via Serial or dual Gigabit Ethernet; assign a static IP or reserve a DHCP lease before commissioning to avoid address conflicts in the daisy-chain. Unit weight is 19 lbs — two-person lift recommended for zero-U vertical mounting.
