Vertiv Rpdu Switched Unit Level Monitoring 60A/63A 200-240V 14.4KW Horizontal (24 - VP5U62A0

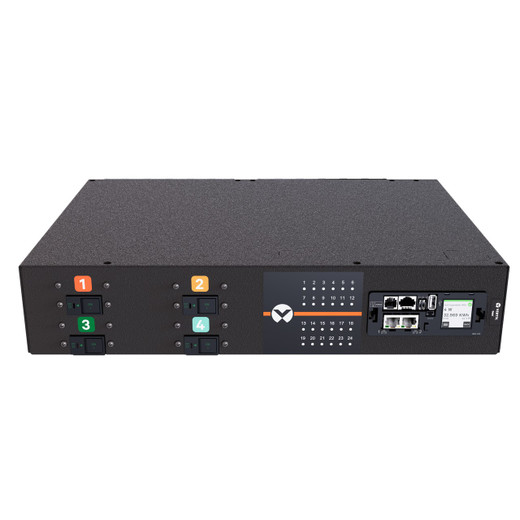

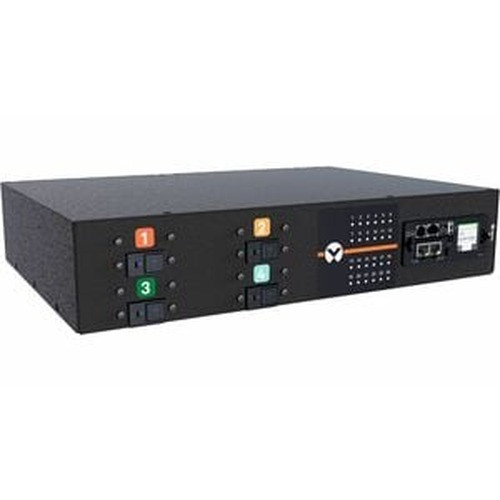

Vertiv VP5U62A0 Switched 2U Horizontal Rack PDU with Outlet-Level Monitoring

Overview

The Vertiv PowerIT VP5U62A0 is a 60/63A, 240V, 2U horizontal rack power distribution unit built for high-density data center and server room deployments where outlet-level visibility and remote switching matter. With 14.4kW capacity, 24 combination C13/C19 outlets, and a hot-swappable Interchangeable Monitoring Device (IMD-5M), this unit gives power administrators granular control without pulling maintenance windows or dispatching hands-on-glass to the rack. It ships with a 1P+N+E (IP44) plug and fits 2U of horizontal rack space — straightforward to integrate into any power infrastructure stack where you need TAA-compliant, outlet-level PDU management at high amperage.

Key Features

• 14.4kW at 60/63A, 240V: Handles dense rack loads — think fully populated blade chassis, GPU compute rows, or co-located UPS-fed cabinets — without requiring a second PDU to share the burden. The 14.4kW ceiling is realistic for high-density server builds that would saturate a typical 30A 120V unit inside a single rack.
• 24 Combination C13/C19 Outlets: Combination outlets accept both C13 (most 1U/2U servers) and C19 (high-draw PDUs, larger UPS bypass switches) plugs, so you aren't locked to a fixed outlet mix. High-retention color-coded outlets reduce accidental unplugs during maintenance and make port identification fast under low-light rack conditions.
• Outlet-Level Switching with Remote Control: Each outlet can be powered on, off, or sequenced independently through the secure web interface — no physical access required. Power cycle a hung server, stagger boot sequences to avoid inrush current spikes, or cut power to decommissioned gear from a browser or SNMP management platform without touching the rack.
• Hot-Swappable IMD-5M with Dual Gigabit Ethernet: The monitoring module pulls without powering down the PDU, so firmware upgrades or module swaps happen during live operations, not maintenance windows. Dual GbE ports support daisy-chaining up to 50 PDUs under a single IP address — a significant network simplification in multi-cabinet deployments where managing 50 separate IPs is operationally expensive.
• Input Monitoring and SNMP/Email Alarming: Tracks real-time input load, so you know when you're approaching the 60A breaker threshold before a circuit trips. SNMP integration feeds existing NMS platforms (Nagios, PRTG, SolarWinds, etc.) without requiring a separate agent or proprietary management system.
• Upgradeable Architecture: The VP5U62A0 is designed to accept future IMD upgrades as monitoring requirements evolve — you're not locked to the monitoring capability available at time of purchase. This matters in environments with 3-to-5-year hardware refresh cycles where PDU intelligence requirements tend to increase.
• P-Lock Cable Compatibility: Supports P-Lock locking IEC cables, which prevent accidental disconnection on vibration-prone raised floors or in dense vertical cabling runs. Pair this with color-coded outlets for a zero-ambiguity outlet identification scheme during audits or migrations.
• TAA Compliance: Meets Trade Agreements Act requirements, making the VP5U62A0 eligible for federal, state, and education procurement where TAA-compliant Vertiv power products are a contract requirement. UL listing and RoHS/China RoHS certifications cover safety and environmental compliance simultaneously.

Integration and Compatibility

The IMD-5M's dual gigabit ethernet ports allow daisy-chaining up to 50 units on a single IP — practical for multi-cabinet deployments running structured network infrastructure where IP address conservation and simplified monitoring dashboards are priorities. SNMP support integrates with any standards-based NMS without proprietary software licensing. The 1P+N+E (IP44) input plug and 240V input are standard for European, Australian, and international data center environments as well as high-density North American 240V circuits. The 2U horizontal form factor mounts in any EIA-310 compliant 19-inch rack. For environments managing dozens of cabinets, the 50-device daisy-chain capability under a single IP is the operationally decisive feature — it reduces both switch port consumption and SNMP polling complexity on the management network.

Frequently Asked Questions

Q: What is the warranty on the VP5U62A0?

A: The VP5U62A0 carries a 3-year standard manufacturer warranty, which extends to 5 years if the unit is registered within 120 days of purchase.

Q: Is the VP5U62A0 TAA-compliant?

A: Yes. The VP5U62A0 meets Trade Agreements Act (TAA) requirements, making it eligible for government and education procurement contracts that mandate TAA compliance.

Q: How many PDUs can be daisy-chained under a single IP address?

A: Up to 50 VP5U62A0 (or compatible PowerIT series) PDUs can be daisy-chained under a single IP using the IMD-5M dual gigabit ethernet ports, significantly reducing IP address overhead in multi-cabinet deployments.

Q: Can the monitoring module be replaced without powering down the PDU?

A: Yes. The IMD-5M is hot-swappable, so module replacements or upgrades can be performed during live operations without interrupting power to connected equipment.

Q: What outlet types does the VP5U62A0 provide?

A: The unit provides 24 combination C13/C19 outlets. These accept both standard C13 server power cords and higher-amperage C19 cords, giving flexibility across mixed equipment types without requiring a separate PDU for each cord type.

Q: What input connection does the VP5U62A0 use?

A: The VP5U62A0 uses a 1P+N+E (IP44) input plug rated for 60/63A at 200-240V, providing up to 14.4kW of capacity from a single input connection.
