Vertiv Rpdu Switched Unit Level Monitoring 60 - VP5U60A0

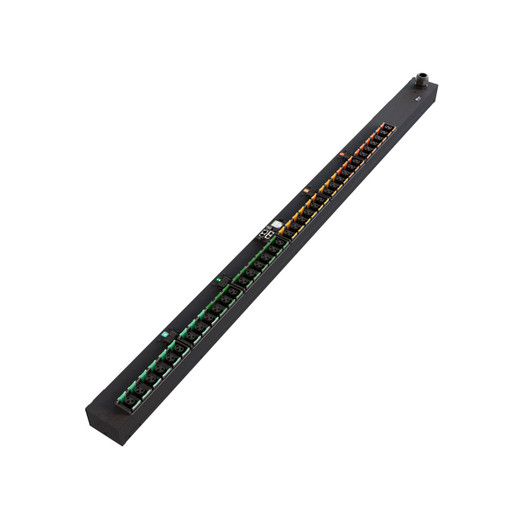

Vertiv VP5U60A0 Switched Unit-Level Monitored Rack PDU

Overview

The Vertiv VP5U60A0 is a 0U vertical rack PDU built for high-density data center cabinets where you need remote outlet control, real-time input monitoring, and enough raw capacity — 60/63A at 240V — to feed a fully loaded compute row. At 14,400W, this isn't a basic strip; it's a manageable power distribution node with dual gigabit Ethernet, outlet-level switching on all 36 C13/C19 combination outlets, and a hot-swappable monitoring module that lets you replace the intelligence layer without cycling cabinet power. Part of the Vertiv PowerIT HD rPDU family, the VP5U60A0 ships as an upgradeable unit — meaning the monitoring tier can be stepped up as your management requirements grow.

For integrators designing rack power distribution into dense server or networking cabinets, this unit handles the combination of switching, monitoring, and physical capacity that would otherwise require separate power management appliances and outlet-level relays.

Key Features

• 60/63A, 240V Input — 14,400W Capacity: Enough headroom for a fully populated 42U cabinet with high-draw 1U/2U servers. Running at 240V instead of 120V halves the current draw for the same wattage, which reduces heat dissipation and voltage drop across long cable runs — a real factor in hot-aisle/cold-aisle deployments where PDUs are wired from remote panel feeds.
• 36 Combination C13/C19 Outlets: Combination receptacles accept both standard IEC C14 and high-draw IEC C20 plugs, so you can mix 1U servers with 2U workhorses or high-density switches without swapping PDU hardware. Color-coded and high-retention by design — outlets grip cables under vibration and accidental contact, which matters in production environments where a loose connection at 60A can cascade.
• Outlet-Level Switching: Each outlet can be toggled, sequenced, or rebooted remotely via the network interface. For hung servers, hung out-of-band management appliances, or controlled boot sequences across a cabinet, this eliminates the need for a physical KVM or hands-on console access. Sequence delays prevent inrush current spikes when cycling an entire cabinet.
• Hot-Swappable IMD-5M Monitoring Device: The intelligence module pulls without cutting power to the outlets — you can upgrade, replace, or swap the monitoring unit during a maintenance window without affecting running loads. This is the single most practical feature for environments that cannot afford cabinet downtime for a firmware or module swap.
• Dual Gigabit Ethernet Ports: Two network ports support daisy-chain or redundant-path configurations. In a daisy-chain topology you can connect multiple PDUs to a single network drop; in a redundant-path setup both ports connect to separate switches for management path resiliency. Either way, 1Gbps management bandwidth is well ahead of what PDU telemetry actually requires — the benefit is link resiliency, not throughput.
• Input Monitoring: Real-time current, voltage, and power draw at the PDU input give you the data to operate under DCIM capacity management without deploying separate metered panels. If your facility charges back by cabinet power consumption, this is the measurement point that feeds that billing system.
• P-Lock Cable Compatible Outlets: Vertiv's P-Lock mechanism locks power cables mechanically into the receptacle, preventing accidental disconnection. In high-vibration environments or dense cable bundles where tension on a cord could dislodge it, this is a passive safety mechanism that doesn't require cable ties or additional strain relief hardware.
• 0U Vertical Form Factor — 3.5
