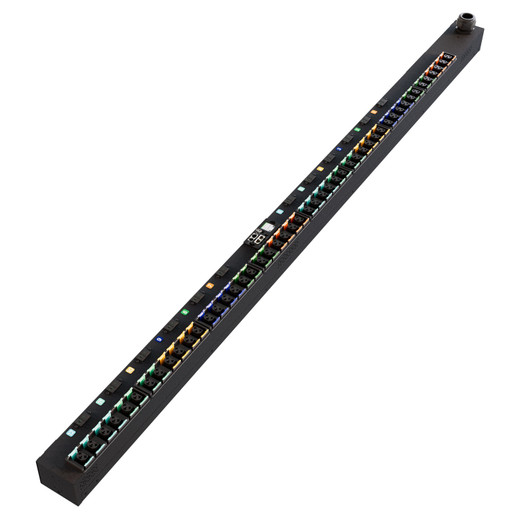

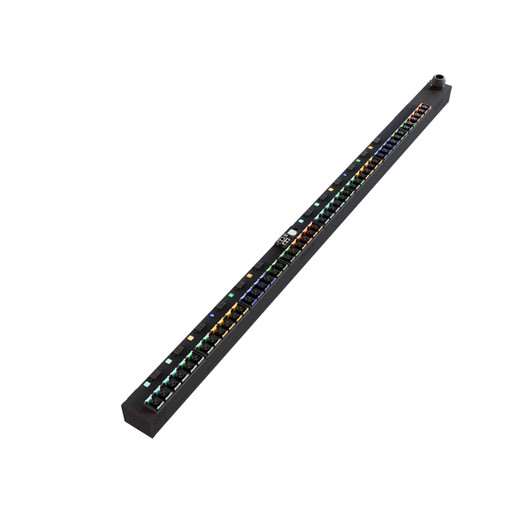

Vertiv VP5U60A1 Switched 0U Vertical Rack PDU — 60/63A, 43.4kW, 48 Outlet

Overview

The Vertiv VP5U60A1 is a 0U vertical rack power distribution unit built for high-density data center deployments where per-outlet control and live monitoring are non-negotiable. Rated at 60/63A on a 240/415V WYE three-phase input, it delivers up to 43.4kW of capacity — enough headroom to serve fully loaded blade chassis rows or GPU compute racks without daisy-chaining units. The 0U vertical form factor keeps it out of the rack's usable U-space entirely, which matters when you're configuring 42U enclosures to the last unit.

Part of the Vertiv PowerIT Switched series, the VP5U60A1 adds outlet-level switching on top of input monitoring, giving operations teams the ability to remotely cycle individual loads without dispatching a technician to the floor. That's the core distinction between a monitored PDU and a switched one — and the reason this unit earns its place in any environment running mixed-criticality loads on a shared rack.

Key Features

• 43.4kW Power Capacity at 63A: Three-phase 240/415V WYE input with a 3P+N+E (IP44) plug handles the full current draw of dense compute rows. At 43.4kW, a single VP5U60A1 can service a high-density rack that would require two separate single-phase units — fewer PDUs per row, cleaner cable management, simpler load balancing.
• 48 Combination C13/C19 Outlets: Every outlet accepts both C14 and C20 plugs, so you're not locked into a fixed ratio of server-grade versus high-power ports. Retrofit an existing rack without rewiring — the combination design absorbs whatever plug mix your hardware brings. P-Lock high-retention compatibility reduces accidental disconnects in high-vibration or busy-aisle environments.
• Outlet-Level Switching: Remote power cycling per individual outlet means you can hard-reset a hung server, cycle a frozen network device, or shed non-critical load during a power event — all from the management interface. In environments where 3 AM server resets previously meant an on-call dispatch, this is the feature that changes the math on support staffing.
• Hot-Swappable IMD-5M Intelligence Module: The IMD-5M (Intelligence Metering Display) is field-replaceable without powering down the PDU. If the management module fails, you pull it and swap a replacement while the outlets stay live. Dual Gigabit Ethernet provides network redundancy so a failed switch port doesn't strand your monitoring path.
• Input Monitoring and SNMP Alarming: Real-time input current, voltage, and power factor visibility via SNMP means your NMS can alert on approaching capacity thresholds before a breaker trips. Paired with the outlet-switching capability, this closes the loop between detection and remediation — the VP5U60A1 surfaces the anomaly and lets you act on it remotely.
• Upgradeable Architecture: The unit ships with the IMD-5M installed but is designed to accept future intelligence module upgrades, protecting the capital investment as monitoring requirements evolve. This is relevant for organizations standardizing on Vertiv infrastructure across a multi-year refresh cycle.
• TAA Compliance: Meets Trade Agreements Act requirements, which qualifies it for federal agency procurement and many state/local government contracts. UL listing and dual RoHS (including China RoHS) certification support deployment in regulated environments and international co-location facilities.
• 0U Vertical Mounting: Installs in the zero-unit vertical channel of a standard open-frame or enclosed rack, preserving all 42U or 48U of server space. The 3.8" W × 3" D footprint is narrow enough for two-post and four-post applications without interfering with adjacent cable managers.

Integration and Compatibility

The VP5U60A1 connects via dual Gigabit Ethernet to your existing network infrastructure and communicates over SNMP, making it compatible with standard NMS platforms including SolarWinds, PRTG, Nagios, and Vertiv's own Trellis platform. Outlet switching and input monitoring are accessible via the web GUI, command-line interface, or SNMP traps — no proprietary client required. The combination C13/C19 outlet design supports IEC 60320 C14 and C20 plugs natively, covering virtually all 1U/2U server power supplies and high-power storage controllers without adapters. Pair with a compatible rack enclosure sized for 0U vertical PDU channels; Vertiv and most standard 19-inch open-frame and enclosed racks support this mounting style. For large deployments, consult a rack PDU selection guide to match breaker sizing and phase balancing requirements before ordering.

Frequently Asked Questions

Q: What is the maximum power capacity of the VP5U60A1?

A: The VP5U60A1 delivers up to 43.4kW (43,400VA) on a 60/63A, 240/415V WYE three-phase input. This makes it suited for high-density server and compute rows with heavy per-rack power budgets.

Q: Can I replace the intelligence module without shutting down the PDU?

A: Yes. The IMD-5M intelligence module is hot-swappable, meaning you can remove and replace it while the PDU remains powered and outlets stay active. This is a key operational advantage in environments where uptime is critical.

Q: What outlet types does the VP5U60A1 support?

A: It has 48 combination C13/C19 outlets. Each outlet physically accepts both C14 plugs (standard 1U/2U server PSUs) and C20 plugs (higher-current devices), so you're not committed to a fixed outlet-type ratio at time of purchase.

Q: What is the warranty on the VP5U60A1?

A: The VP5U60A1 carries a standard 3-year manufacturer warranty. If you register the unit within 120 days of purchase, the warranty extends to 5 years at no additional cost.

Q: Is the VP5U60A1 TAA compliant?

A: Yes. The VP5U60A1 meets Trade Agreements Act (TAA) requirements and also carries UL listing and dual RoHS (including China RoHS) certification.

Q: How does the VP5U60A1 connect to network management systems?

A: It uses dual Gigabit Ethernet with SNMP support, compatible with standard NMS platforms. Outlet switching and monitoring are also accessible through a web GUI and CLI — no proprietary software is required.

Eden Phillips

The feature that makes the VP5U60A1 stand out in a crowded PDU market is the combination of 48 combination C13/C19 outlets at 43.4kW on a single three-phase feed — that's the density crossover point where most single-phase switched PDUs fall short and you'd otherwise be stacking two units. In a high-density rack running GPU compute or blade servers, that 63A three-phase input covers the full load without splitting circuits across multiple breaker panels.

Technical Highlights:

• Hot-Swap IMD-5M Module: Field-replaceable without de-energizing the PDU — in a 24/7 data center, this is the difference between a planned 30-second swap and a maintenance window that impacts SLAs. Dual Gigabit Ethernet on the module means a single failed switch port doesn't blind your monitoring.
• Outlet-Level Switching at Scale: 48 individually switchable outlets across a single 0U unit. Remote power cycling without a floor dispatch is measurable in labor cost per incident — if you're managing more than one rack row, the ROI math on this feature closes quickly.
• Warranty Extension Window: The standard 3-year coverage extends to 5 years with registration within 120 days. On a unit of this specification and price point, that's a meaningful lifecycle protection — worth building into the procurement checklist before the unit ships.

Deployment Considerations:

• The 3P+N+E (IP44) plug is a non-standard connector for North American data centers — verify your facility's whip and power distribution panel can terminate this inlet before ordering. European and international co-lo facilities are the natural home for this unit.
• The 0U vertical channel dimension (3.8" W × 3" D) fits standard 19-inch rack vertical PDU channels, but confirm your specific enclosure manufacturer's PDU channel clearance — some high-density enclosures run tighter tolerances that can conflict with cable management accessories on the PDU.

The VP5U60A1 is the right unit for international co-location racks, European-standard data halls, and multi-tenant facilities running 240/415V WYE distribution — particularly where per-outlet audit trails and remote cycling justify the switched-tier premium over a monitored-only unit.
