Vertiv Rpdu Switched Unit Level Monitoring 60/63A 240/415V WYE 43.4KW Horizontal - VP5U62A2

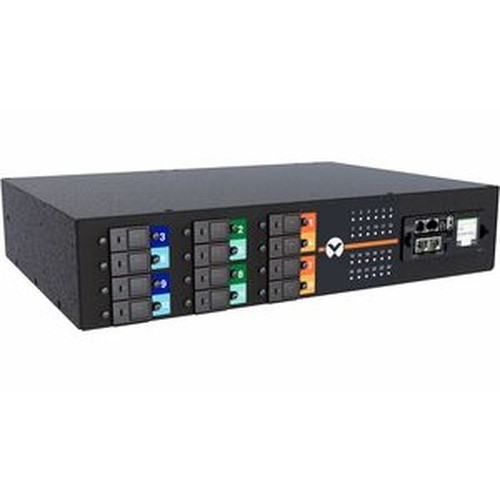

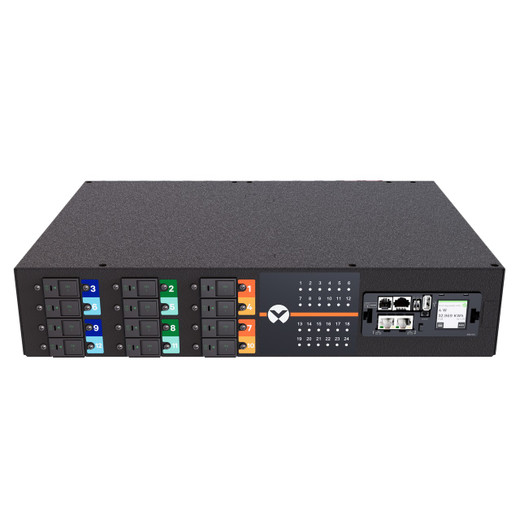

Vertiv VP5U62A2 Switched Unit-Level Monitored Rack PDU

The Vertiv VP5U62A2 is a 2U horizontal rack PDU built for high-density data center and colocation environments where remote outlet control and granular power monitoring are non-negotiable. Rated at 63A input and 43.4kW capacity on a 240/415V WYE feed, it delivers 24 combination C13/C19 outlets with individual outlet switching — meaning you can power-cycle a single server, storage array, or network device without touching the rack or waking someone up at 3 AM. The hot-swappable IMD-5M monitoring module and dual gigabit ethernet ports make it a serious candidate for any facility running centralized power management across dozens of racks.

Key Features

• 43.4kW @ 63A Input Capacity: handles the full power budget of a high-density rack loaded with GPU compute or storage nodes. On a 240/415V WYE three-phase circuit, this isn't a bottleneck — it's a headroom play. Size your breaker panel correctly and this PDU won't be what limits your cabinet density.
• 24 Combination C13/C19 Outlets: the combination form factor matters in mixed environments. C19 outlets serve high-draw servers and storage controllers (up to 16A each); C13 handles everything else. You're not locked into a fixed outlet mix, which reduces cable management complexity when refresh cycles bring in different gear.
• Outlet-Level Switching: each outlet can be independently toggled on/off remotely — no physical access required. For colo operators managing customer cages, this eliminates dispatch calls for simple reboots. For enterprise IT, it enables scheduled power sequencing to protect UPS runtime and avoid inrush pile-up during a recovery event.
• Hot-Swappable IMD-5M Monitoring Device: the Interchangeable Monitoring Device (IMD) can be swapped without powering down the PDU. If a monitoring module fails mid-operation, you replace it without interrupting a single connected device. That's the correct architecture for always-on facilities — monitoring redundancy without a maintenance window.
• Dual Gigabit Ethernet + Serial Connectivity: dual GbE ports allow daisy-chaining up to 50 PDUs on a single IP address. In a large colo or campus data center with hundreds of PDUs, that dramatically reduces IP address consumption and simplifies SNMP/DCIM integration. Serial is available for out-of-band management if the network path is unavailable.
• P-Lock High-Retention Outlets: compatible P-Lock power cables physically lock into the outlet, preventing accidental disconnection from vibration, cable pull, or careless hands in a crowded cabinet. In high-density rows where cable weight alone can stress connections, this matters.
• 2U Horizontal Form Factor: mounts cleanly in a standard 19-inch rack. At 17.12 x 12 x 3.48 inches, the 2U horizontal profile is straightforward to position in the cabinet without conflicting with cable managers or blanking panels. Weight is 22 lbs — plan your rack loading accordingly.
• 3P+N+E (IP44) Input Plug: the IEC 309-style plug provides a standardized, weatherproof connection point appropriate for raised-floor and contained-aisle environments. IP44 rating on the inlet means particulate and splash ingress are mitigated — relevant in facilities with active cooling that produces condensation near the floor.
• Warranty with Registration Incentive: baseline 3-year manufacturer warranty extends to 5 years if you register within 120 days of purchase. That's a meaningful difference in a device that sits in a rack for 7-10 years — register it on install day and document the date.

Integration and Compatibility

The VP5U62A2 integrates with DCIM and SNMP-based power management platforms via its dual gigabit ethernet interface. The daisy-chain architecture — up to 50 units sharing a single IP — is particularly valuable when deploying into Vertiv's own Trellis or third-party DCIM platforms where per-device IP allocation is constrained. Outlet-level switching and input monitoring data are exposed via the IMD-5M, enabling real-time power draw reporting per outlet, which feeds capacity planning and charge-back models in colo environments. The serial port provides an independent management path for environments with strict network segmentation policies or for use as an out-of-band fallback during network outages.

The rack PDU is part of the broader Vertiv PowerIT line, designed to work alongside Vertiv UPS systems and monitoring infrastructure. Pair it with a compatible UPS upstream and a network management card for a complete power chain with end-to-end visibility. For facilities building out high-density rows, review our power distribution buying guide to match PDU capacity against your per-rack kW targets before committing to a configuration.

Frequently Asked Questions

Q: What is the maximum power capacity of the VP5U62A2?

A: The VP5U62A2 supports a maximum of 43.4kW at 63A input on a 240/415V WYE three-phase circuit.

Q: Can I manage multiple VP5U62A2 units from a single IP address?

A: Yes. The daisy-chain architecture supports up to 50 VP5U62A2 units sharing a single IP address via the dual gigabit ethernet ports — a major advantage in large deployments where IP address conservation matters.

Q: What is the warranty on the VP5U62A2?

A: The VP5U62A2 includes a 3-year manufacturer warranty. If you register the unit within 120 days of purchase, the warranty extends to 5 years.

Q: Can the monitoring device be replaced without shutting down the PDU?

A: Yes. The IMD-5M (Interchangeable Monitoring Device) is hot-swappable — it can be removed and replaced without interrupting power to any connected outlets.

Q: What outlet types does the VP5U62A2 provide?

A: It provides 24 combination C13/C19 outlets, giving you flexibility to connect both standard IEC C14 devices and higher-draw C20 devices without a fixed outlet-type split.

Q: What input plug type does the VP5U62A2 use?

A: It uses a 3P+N+E (IP44) plug, which is an IEC 309-style connector rated for industrial and data center environments with protection against particulate and splash ingress.

Marty Allison

The VP5U62A2 is the unit I reach for when a customer is building out a high-density colo row and needs outlet-level control without eating up their IP allocation. The 50-unit daisy-chain on a single IP is the spec that changes the conversation — most enterprise teams don't realize how quickly per-PDU IP addresses become a constraint at scale until they're deep into a DCIM deployment.

Technical Highlights:

• 43.4kW / 63A Capacity: properly sized for modern high-density racks running GPU compute or NVMe storage — this isn't overprovisioned on paper; it's a real ceiling you can plan against without derate anxiety on a three-phase WYE circuit.
• Hot-Swap IMD-5M: monitoring continuity without a maintenance window is the correct architecture for Tier III and above facilities. Replacing a failed monitoring module mid-operation, with zero outlet interruption, is worth more than the spec sheet implies.
• Dual GbE + 50-Unit Daisy-Chain: in a 500-PDU colo deployment, that's 10 IP addresses instead of 500. The DCIM integration overhead and IP management burden drops accordingly — and SNMP polling at scale becomes tractable.

Deployment Considerations:

• Register the unit within 120 days of installation — the warranty jump from 3 to 5 years is automatic on registration, and in a device that typically runs for 7-10 years, the extra coverage is free insurance worth capturing on day one.
• The 22 lb unit weight is manageable solo for a horizontal mount, but verify your rack's shelf and rail load rating before installing — especially in fully-loaded 42U racks where cumulative weight is already a factor.

This PDU is purpose-built for colocation facilities and enterprise data centers running three-phase 240/415V WYE power infrastructure where remote outlet-level control, DCIM integration, and monitoring redundancy are operational requirements — not nice-to-haves.
