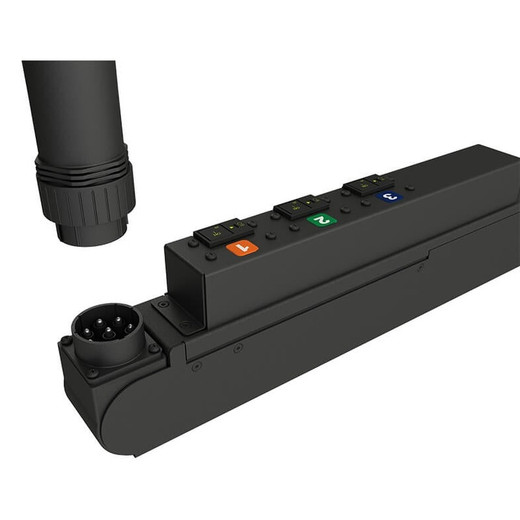

Vertiv Rpdu Switched Outlet Level Monitoring EC 22.0KW Variable Power Configuration - VP7UV0A0

Vertiv VP7UV0A0 Universal Vertical Rack Power Distribution Unit — 22kW, 30-Outlet, 1/3-Phase

Overview

The Vertiv VP7UV0A0 is a vertical rack-mount power distribution unit engineered for data centers and high-density equipment cabinets where power configurations vary by facility or grow over time. Rated at 22kW with universal input spanning 208V to 415V across single- and three-phase topologies, the VP7UV0A0 eliminates the need to stock separate PDU SKUs for different site specifications — one unit covers the range. The integrated PowerIT Next Generation IMD brings a 128×128 touchscreen LCD, internal orientation sensor, and hardware-based secure boot directly to the unit, so you get local visibility and tamper-resistant firmware without an external monitoring appliance.

Key Features

• 22kW Capacity with Universal Input (208V–415V, 32A–63A): Handling everything from a standard 208V/32A North American feed to a 415V/63A three-phase European or APAC circuit means a single VP7UV0A0 SKU works across mixed international deployments. Power configuration is defined by the Facility Side Cable (FSC), so you're not replacing the PDU when a rack's power infrastructure changes — only the cable.
• 30 U-Lock Outlets (18× C13, 12× C19): U-Lock retention on every outlet prevents accidental disconnection under vibration or incidental cable movement. The mix of 18 C13 and 12 C19 ports covers both 1U server and switch IEC loads alongside higher-draw UPS, storage arrays, and GPU nodes on a single unit — no separate PDU branches needed for mixed equipment density.
• Integrated IMD with 128×128 LCD Touchscreen: Real-time per-outlet monitoring and load visibility at the rack face, without a separate monitoring appliance. The internal orientation sensor auto-adjusts the display based on how the unit is physically installed — useful in dense hot-aisle/cold-aisle builds where vertical PDUs may be mounted in varied orientations.
• Secure Boot with Hardware-Based Trust Anchor: Firmware integrity is enforced at the hardware level on every power cycle, closing the attack surface that software-only secure boot leaves open. In environments subject to NIST SP 800-53 or ISO 27001 controls, this is a meaningful differentiator for audit documentation.
• Redundant Power-Sharing Port: The redundant power-sharing port enables high-availability configurations without requiring dual-corded equipment across the entire rack. This reduces per-rack cabling complexity while maintaining failover capability at the PDU level.
• TAA-Compliant and UL/CE/RoHS Certified: TAA compliance confirms manufacture in a designated country, satisfying federal procurement requirements under the Trade Agreements Act — required for GSA Schedule, DoD, and most state/local government contracts. UL and CE listing supports deployment in both North American and European facilities without sourcing separate regional variants.
• 100% Factory Tested: Every unit ships with a documented factory test pass, reducing commissioning time and the risk of discovering a defective PDU after it's been installed in a live rack — a particularly costly scenario when the cabinet is already cabled and populated.
• 50/60 Hz Frequency Support: Dual-frequency operation means the VP7UV0A0 operates natively on both North American (60 Hz) and international (50 Hz) grid infrastructure, relevant for globally distributed deployments maintaining a common PDU standard across sites.

Integration and Compatibility

The VP7UV0A0 is part of the Vertiv PowerIT UPDU series, designed to integrate with Vertiv's Avocent or Trellis infrastructure management platforms for centralized DCIM monitoring. The IMD's onboard connectivity enables per-outlet switching and monitoring data export to upstream management systems. The unit's vertical rack form factor fits standard 42U and 47U open-frame and enclosed cabinets; verify cabinet depth accommodates the 2.6-inch PDU depth plus cable management. For high-density AI compute or GPU server racks drawing at or near 22kW, pair the VP7UV0A0 with a matching rack PDU on the secondary feed for full redundancy. TAA compliance and GSA eligibility make this a straightforward fit for government and enterprise power infrastructure procurement.

Frequently Asked Questions

Q: What input voltages does the VP7UV0A0 support?

A: The VP7UV0A0 supports 208V to 415V across both single-phase and three-phase configurations, with input current ranging from 32A to 63A. The actual power configuration is defined by the Facility Side Cable (FSC) supplied at installation.

Q: Is the VP7UV0A0 TAA-compliant for government procurement?

A: Yes. The VP7UV0A0 carries TAA-Compliant certification, making it eligible for GSA Schedule orders, DoD contracts, and other federal and state procurement vehicles that require Trade Agreements Act compliance.

Q: What is the warranty on the VP7UV0A0?

A: The VP7UV0A0 includes a five-year limited manufacturer warranty.

Q: How many outlets does the VP7UV0A0 provide, and what types?

A: The unit provides 30 total outlets: 18 U-Lock IEC C13 and 12 U-Lock IEC C19. All outlets use U-Lock retention to prevent accidental disconnection.

Q: Does the VP7UV0A0 include onboard monitoring?

A: Yes. The VP7UV0A0 includes an integrated PowerIT Next Generation IMD (Integrated Monitoring Device) with a 128×128 LCD touchscreen, internal orientation sensor, and secure boot with a hardware-based trust anchor — no external monitoring appliance required.

Q: What certifications does the VP7UV0A0 carry?

A: The VP7UV0A0 is UL Listed, CE Listed, TAA-Compliant, and RoHS Certified.

Jerry Tildsen

The VP7UV0A0 is one of the few vertical rack PDUs I'd actually recommend for a multi-region data center rollout without modification — that 208V–415V universal input range with 32A–63A flexibility means your procurement team orders one SKU whether the cabinet is going into a Tier III colo in Chicago or a European facility running 400V three-phase. The hardware-based secure boot with a trust anchor is something you'd usually only see called out on network gear; seeing it on a PDU tells you Vertiv is taking firmware integrity seriously for environments where physical access to rack power can be a meaningful attack surface.

Technical Highlights:

• Universal Input (208V–415V, 32A–63A): Power configuration via Facility Side Cable means the PDU itself never needs to be swapped when facility power specs change — only the FSC. For colocation customers moving between cage specs or scaling to denser power drops, this eliminates a significant truck-roll cost.
• 30 U-Lock Outlets (18× C13, 12× C19): The U-Lock mechanism is the right call for vibration-prone environments — blade server chassis, GPU compute rows, and anything running high-airflow cooling all generate enough mechanical noise to walk a standard IEC connector loose over months. U-Lock eliminates that failure mode entirely.
• IMD with 128×128 LCD and Orientation Sensor: The internal orientation sensor automatically adjusting the display is a small but genuine quality-of-life feature during dense rack builds where you're sometimes mounting a vertical PDU in awkward orientations. You won't need to manually flip the display or interpret an upside-down readout during commissioning.

Deployment Considerations:

• The VP7UV0A0 is 2 inches wide and 2.6 inches deep — confirm your cabinet's PDU mounting channel and available depth before ordering, particularly in enclosed cabinets with rear door clearance constraints.
• Power capacity is 22kW, but actual delivered capacity is governed by the FSC. Verify the facility-side cable amperage matches your planned draw before commissioning; the PDU won't limit you artificially, but the FSC becomes your single point of capacity constraint.

This unit is best suited for enterprise data centers, high-density colocation buildouts, and federal/government IT infrastructure projects where TAA compliance is a hard procurement requirement and the site power environment may not be fully standardized at deployment time.
