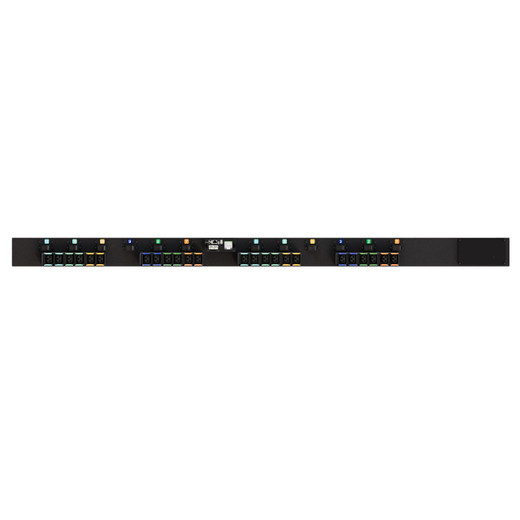

Vertiv Rpdu Switched Outlet Level Monitoring 80A 208V Delta 28.8KW Vertical (24) - VP7NA0A0

Vertiv VP7NA0A0 Switched Outlet Level Monitored Rack PDU

Overview

The Vertiv VP7NA0A0 is an 80A, 208V, 28.8kW vertical rack PDU from the Vertiv PowerIT series — built for dense data center and colocation deployments where per-outlet switching, real-time monitoring, and remote power management aren't optional. The VP7NA0A0 installs vertically at 0U, preserving every rack unit for compute, while its hardwired input and hot-swappable IMD mean you're not touching the PDU to service the intelligence layer. If you're specifying rack power distribution for a high-density compute row, a colocation cage, or a remote edge location where hands-on intervention is costly, this is the unit to look at closely.

Key Features

• 28.8kW at 80A, 208V: This PDU handles the full capacity of a 3-phase 208V delta or single-phase 240V feed at 80A — sized for blade chassis, dense GPU nodes, or high-draw storage arrays. At 28.8kW, it covers a fully loaded high-density rack without a second PDU for capacity relief.
• 24 Combination C13/C19 Outlets (P-Lock High-Retention): Every outlet accepts both IEC C13 and C19 plugs, giving you flexibility to mix 1U servers with higher-draw 16A-capable equipment in the same PDU without adapters. High-retention P-Lock outlets prevent accidental disconnection — a critical detail in vibration-prone environments or dense cable runs where a loose cord means an unplanned outage.
• Outlet-Level Switching and Remote Power Cycle: Each of the 24 outlets can be switched on, off, or power-cycled remotely — without physical access to the rack. For remote sites, this eliminates a truck roll to reboot a hung device. In colocation, it lets a tenant control their own outlets without datacenter staff intervention.
• Outlet-Level Monitoring: Real-time current draw per outlet surfaces over-provisioning risk before it becomes a breaker trip. Pair this with input monitoring and you have full visibility from the feed breaker down to individual connected loads — the kind of granularity that matters for capacity planning on a power management platform.
• Hot-Swappable and Upgradeable IMD: The intelligence module (IMD) slides out without powering down the PDU or its connected load. That means firmware upgrades, module replacements, and controller swaps happen during production hours — not maintenance windows. The upgradeable architecture also protects the investment as monitoring requirements evolve.
• Daisy-Chain Up to 50 Devices: Serial and network interfaces support chaining up to 50 PDUs under a single IP address. In a multi-rack deployment this collapses IP management overhead dramatically — instead of 40 PDUs consuming 40 switch ports and 40 management IPs, you manage the whole row from one address.
• Hardwired Input Connection: The VP7NA0A0 uses a hardwired input rather than a plug — appropriate for 80A circuits where NEMA connectors aren't rated for continuous high-current service. Installation requires a licensed electrician, but it eliminates the plug failure mode that affects lower-capacity units.
• TAA Compliance: The VP7NA0A0 meets Trade Agreements Act requirements, making it eligible for federal, state, and municipal procurement contracts where domestic and allied-nation sourcing is mandated. Combined with UL and RoHS certifications, it satisfies the compliance checklist for most enterprise and government procurement teams.
• 5-Year Limited Warranty: Vertiv backs the VP7NA0A0 with a 5-year limited warranty — longer than the typical 1-3 years on competitive units. For infrastructure with a 7-10 year depreciation cycle, that warranty alignment reduces total cost of ownership.

Integration & Compatibility

The VP7NA0A0 connects via network interface and serial connection, supporting integration with DCIM and power management platforms for centralized monitoring and control. The daisy-chain architecture (up to 50 units per IP) makes it well-suited for row-level management in large deployments. TAA compliance keeps it on the approved list for government and enterprise purchasing vehicles. Input accepts either 1-phase 240V or 3-phase 208V delta, giving flexibility at the feed level without requiring a PDU change if the facility's power architecture shifts between those topologies.

Frequently Asked Questions

Q: What input power does the VP7NA0A0 require?

A: The VP7NA0A0 accepts either 1-phase 240V or 3-phase delta 208V at 80A. The input is hardwired — no plug is included — so installation requires termination by a qualified electrician at the circuit breaker or transfer switch.

Q: Can I replace the intelligence module without powering down connected equipment?

A: Yes. The IMD (intelligence module) is hot-swappable, meaning it can be removed and replaced while the PDU continues to supply power to all connected outlets. This allows maintenance and upgrades without a planned outage.

Q: How many PDUs can I daisy-chain under one IP address?

A: Up to 50 devices can be daisy-chained via the serial interface and managed under a single network IP, significantly reducing the number of switch ports and management addresses required in a large multi-rack deployment.

Q: Is the VP7NA0A0 TAA compliant?

A: Yes. The VP7NA0A0 meets Trade Agreements Act (TAA) compliance requirements, making it eligible for federal, state, and municipal government procurement contracts that require TAA-compliant sourcing.

Q: What is the warranty on the VP7NA0A0?

A: Vertiv provides a 5-year limited warranty on the VP7NA0A0.

Q: What outlet types does the VP7NA0A0 provide?

A: The VP7NA0A0 provides 24 combination C13/C19 outlets with high-retention P-Lock connectors. Each outlet accepts both IEC C13 and C19 plugs, and all 24 outlets support individual switching and monitoring.
