Vertiv Rpdu Switched Outlet Level Monitoring 60A/63A 200-240V 14.4KW Horizontal ( - VP7U62A0

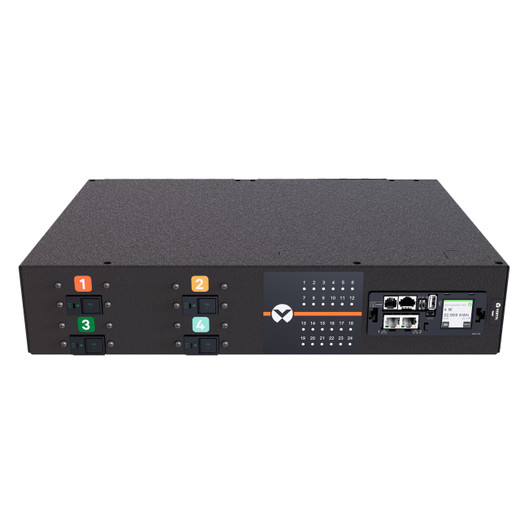

Vertiv VP7U62A0 Switched Outlet-Level Monitoring Rack PDU

Overview

The Vertiv VP7U62A0 is a 2U horizontal rack PDU from the PowerIT HD series built for high-density data center and server room deployments that need more than basic power distribution — specifically, the ability to monitor and cycle individual outlets remotely without dispatching a technician. At 63A/240V and 14.4kW capacity, it handles dense compute rows where aggregate load management and per-outlet visibility are operational requirements, not nice-to-haves. With 24 combination C13/C19 outlets on a single unit, it covers mixed server and high-draw appliance loads in the same strip — reducing the number of PDUs you need to manage per rack.

The VP7U62A0 connects via a network interface (with a serial fallback), making it a first-class citizen in any rack power distribution management stack. The hot-swappable Intelligent Modular Display (IMD) means the monitoring hardware can be replaced without taking the unit offline — a meaningful difference in always-on environments where scheduled downtime is a negotiating exercise.

Key Features

• 14.4kW / 63A at 240V: This capacity tier covers dense blade chassis, GPU compute rows, and mixed server loads without running close to the NEC 80% continuous-load threshold. At 63A input, you have headroom that a 30A or 40A unit can't provide when rack densities climb past 10–15kW per rack.
• 24 Combination C13/C19 Outlets: A single outlet bank that accepts both standard C13 IEC server power cords and the heavier C19 connections used by high-draw PDUs, UPS units, and some storage arrays. Eliminates the need to plan which rows of outlets go to which device class — any port works for either load type.
• Outlet-Level Switching and Monitoring: Each outlet can be cycled or toggled independently over the network. In practice, this means you can reboot a locked-up server, bring up equipment in a controlled sequence after a power event, or isolate a failing load without touching any other device on the strip — remotely, at any hour.
• Hot-Swappable IMD (Intelligent Modular Display): The monitoring module that handles network connectivity and display functions is field-replaceable without powering down the PDU. This is the difference between a firmware issue requiring a planned maintenance window and a five-minute swap by on-site staff.
• Input Monitoring: Beyond individual outlets, the VP7U62A0 monitors the full input feed — voltage, current, and power at the PDU level. This gives facilities teams the data to catch overloaded circuits before a breaker trips, and feeds into capacity planning when adding new equipment.
• Daisy-Chain up to 50 Devices: A single IP address can manage a chain of up to 50 Vertiv PDUs. In large data center rows with many racks, this keeps your IP address allocation and management overhead contained — one management point per row rather than per rack.
• P-Lock Compatible Outlets: The C13/C19 outlets support P-Lock locking power cords, which mechanically retain the cord in the outlet. In environments where cable management density makes accidental disconnection a real risk (dense patch-and-power zones), locking cords reduce the chance of an outage from a snagged cable.
• 1P+N+E IP44 Plug: The inlet uses a European-standard IP44-rated plug with line, neutral, and earth — appropriate for 200–240V single-phase feeds common in international data centers and co-location facilities outside North America.
• TAA Compliant: Meets Trade Agreements Act requirements, clearing the VP7U62A0 for federal and government-adjacent procurement where TAA compliance is a prerequisite, not an option. Also carries UL listing and RoHS/China RoHS compliance.
• Upgradeable Architecture: The PowerIT HD platform is designed to accept upgrades — the IMD is field-replaceable and the unit supports firmware updates to extend functionality without full PDU replacement, protecting the infrastructure investment over a longer refresh cycle.

Integration and Compatibility

The VP7U62A0 integrates with data center infrastructure management (DCIM) platforms and network management systems via its built-in network interface and serial port. The network interface supports remote access for outlet control and monitoring; the serial connection provides an out-of-band fallback if the primary network path is unavailable. The daisy-chain architecture — up to 50 units per IP — is directly relevant for deployments using UPS and power management systems that consolidate PDU monitoring across large environments. P-Lock outlet compatibility means standard Vertiv and third-party locking C13/C19 cords integrate without adapters. The unit ships with a 1P+N+E IP44 plug, so verify your local facility power infrastructure before procurement — this unit is sized for 200–240V international single-phase feeds, not North American NEMA configurations. For a broader look at high-density Vertiv power infrastructure, the PowerIT HD series spans multiple capacity and form factor options.

Frequently Asked Questions

Q: What is the maximum load capacity of the VP7U62A0?

A: The VP7U62A0 supports a maximum of 63A at 240V, delivering up to 14.4kW (14,400W) of capacity. For continuous loads, follow the NEC 80% rule, which puts the sustained working limit at approximately 50A / 11.5kW.

Q: Can I replace the monitoring module (IMD) without powering down the PDU?

A: Yes. The Intelligent Modular Display (IMD) on the VP7U62A0 is hot-swappable, meaning it can be removed and replaced without interrupting power delivery to the connected equipment.

Q: How many PDUs can I manage from a single IP address using daisy-chaining?

A: The VP7U62A0 supports daisy-chaining of up to 50 devices per IP address, which significantly reduces IP address overhead and simplifies management in large multi-rack deployments.

Q: Is the VP7U62A0 TAA compliant?

A: Yes. The VP7U62A0 meets Trade Agreements Act (TAA) requirements, making it eligible for federal and government-adjacent procurement programs that require TAA compliance. It also carries UL listing and RoHS/China RoHS compliance.

Q: What outlet types does the VP7U62A0 provide?

A: It includes 24 combination C13/C19 outlets, meaning each outlet accepts both standard C13 server power cords and the larger C19 cords used by high-draw equipment. Both connector types are supported at every outlet position.

Q: What is the warranty on the VP7U62A0?

A: The VP7U62A0 carries a 3-year standard manufacturer warranty, which is extendable to 5 years if the unit is registered within 120 days of purchase.

James Everett

The VP7U62A0 is the unit I recommend when a deployment has crossed the threshold where outlet-level visibility is no longer optional — specifically, dense compute environments running 10kW+ per rack where a locked-up server or a misbehaving load at 2am needs to be addressed remotely, not by dispatching a data center tech. The 63A / 14.4kW input capacity gives real headroom in racks that would saturate a 30A or 40A unit under mixed blade and storage loads.

Technical Highlights:

• Hot-Swappable IMD: The monitoring module is field-replaceable without cutting power to connected equipment — this is a meaningful operational advantage in environments where the PDU itself cannot go offline for a maintenance window.
• 50-Device Daisy-Chain: One IP address manages a chain of up to 50 units. In a 20-rack row, that's a single management point for the entire row's PDU infrastructure, rather than 20 separate IPs and 20 separate credential sets.
• 3-Year / 5-Year Warranty: The standard 3-year manufacturer warranty extends to 5 years if the unit is registered within 120 days — worth tracking at commissioning time, because missing that window means giving up two years of coverage on a piece of critical infrastructure.

Deployment Considerations:

• The VP7U62A0 ships with a 1P+N+E IP44 plug for 200–240V single-phase feeds. Verify your facility's power distribution matches this inlet configuration before ordering — this is not a NEMA 6-50 or L6-30 unit, and a plug mismatch will delay deployment.
• The 2U horizontal form factor at 17.12 inches wide fits standard 19-inch racks, but confirm rack depth: the unit is 12 inches deep, which is shallow enough for most modern 4-post racks but worth checking against any legacy 2-post open frame installations where depth clearance varies.

The VP7U62A0 is specifically well-suited for co-location deployments and enterprise data centers running mixed IEC C13/C19 load profiles at 240V — environments where remote outlet cycling, input-level monitoring, and multi-PDU management under a single IP address translate directly into reduced operational overhead and faster incident response.
