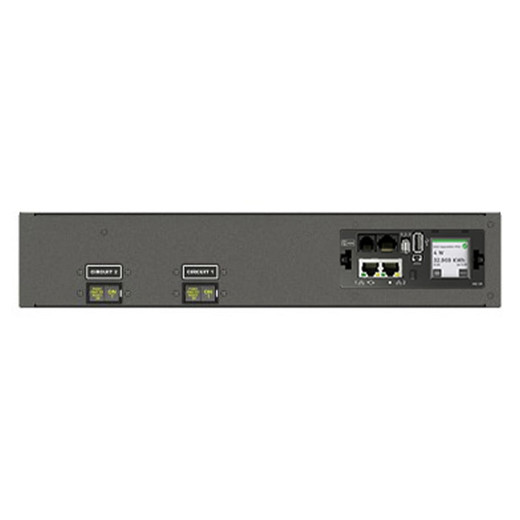

Vertiv Rpdu Monitored Unit Level EC 30A 208V 4.9KW Horizontal (12) Combination C1 - VP4N31A5

Vertiv VP4N31A5 Monitored RDU 30A 208V 4.9KW Horizontal

Overview

The Vertiv VP4N31A5 is a monitored rack power distribution unit (rPDU) designed for enterprise data centers and colocation facilities. It provides 30A of power at 208V, delivering up to 4.9kW capacity through a horizontal, 12-outlet configuration. This unit offers granular monitoring of power consumption at the unit level, allowing for better capacity planning and operational efficiency in IT racks. Its design is optimized for standard 19-inch rack mounting.

Compatibility

This rPDU is designed for integration into standard 19-inch server racks. It is compatible with Vertiv's rack systems and other standard rack enclosures. The unit accepts a 30A, 208V input connection (NEMA L6-30P plug type). The 12 combination C1 outlets are suitable for a wide range of IT equipment power cords, including C13 and C15 types.

Installation Notes

The VP4N31A5 mounts horizontally into a 19-inch rack. Ensure the rack has sufficient vertical space and is properly grounded. The unit requires a 208V, 30A circuit. Verify the input plug (NEMA L6-30P) matches available power outlets. Torque specifications for mounting hardware should be followed to ensure secure installation.

What's in the Box

• 1x Vertiv VP4N31A5 Monitored rPDU
• 1x Power Cord
• 1x Mounting Hardware Kit
