Vertiv VP4UV0A2 22kW Monitored Rack Power Distribution Unit

Overview

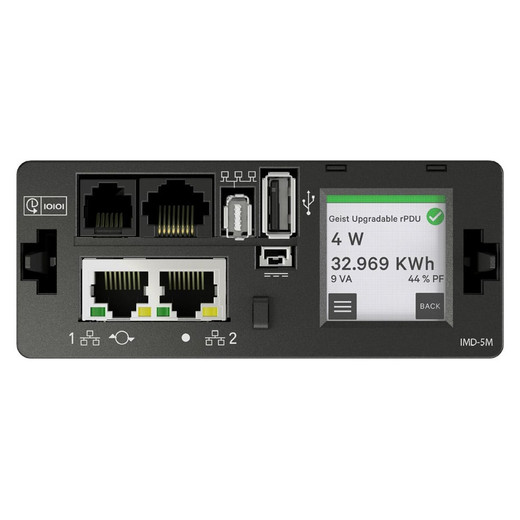

The VP4UV0A2 is a vertically-mounted, unit-level monitored rack PDU rated at 22kW, built for data center deployments where power configurations vary by cabinet or phase availability. It accepts universal input from 208V to 415V at 32A to 63A in both single-phase and three-phase configurations — meaning the same PDU can be provisioned across mixed cabinet rows without stocking multiple SKUs. Thirty combination C13/C19 outlets provide flexibility to wire both 1U servers and high-draw compute nodes from a single distribution unit. The integrated Next-Generation IMD (Intelligent Monitoring Device) features a 128×128 LCD display with touchscreen interface and an internal orientation sensor, so the display auto-orients whether the unit is mounted horizontally or vertically — no configuration required on install. A redundant power-sharing port supports dual-input configurations for uptime-critical rows. Secure boot with a hardware trust anchor protects firmware integrity — relevant for any deployment operating under NIST or datacenter security frameworks. The VP4UV0A2 is UL Listed, CE Listed, TAA-compliant, and RoHS certified, and ships 100% factory tested.

Compatibility

The VP4UV0A2 is compatible with standard 600mm and 800mm two-post and four-post open-frame racks, as well as enclosed cabinets accepting vertical PDU mounting. The universal input range (208V–415V, 32A–63A, 50/60Hz) means it integrates with North American 208V three-phase feeds, European 230V/400V infrastructure, and international deployments without hardware changes. Network monitoring integrates via the onboard IMD over standard Ethernet — compatible with DCIM platforms and SNMP-based monitoring tools that accept PDU-level telemetry. Confirm your rack's PDU mounting bracket style (tooled vs. toolless) and input whip termination before ordering, as those components are site-specific and not included.

Installation Notes

Operating temperature ceiling is 60°C — adequate for hot-aisle containment environments but verify ambient conditions at the rack level before deployment. Dimensions are 2″ W × 2.5″ D; confirm zero-U vertical bay clearance in the target cabinet. Input whip and mounting hardware are typically configured per-order for variable-input PDUs — confirm input connector type (IEC 60309, hardwire, or customer-supplied) at time of purchase. Unit weight is 21 lbs; plan for two-person install when mounting in fully populated cabinets.
