Vertiv Rpdu Monitored Outlet Level EC 22.0KW Variable Power Configuration Vertical - VP6UV0A2

Vertiv VP6UV0A2 Monitored Outlet-Level Vertical PDU 22kW

Overview

The Vertiv VP6UV0A2 is a 22kW monitored outlet-level rack PDU built for high-density data center deployments where per-outlet visibility and flexible power configuration are operational requirements, not nice-to-haves. Vertiv's VP6UV0A2 mounts vertically in a standard rack and delivers up to 22,000W across 48 outlets in a mixed C13/C19 configuration — the combination that covers both standard 1U/2U servers and high-draw GPU nodes or storage arrays from a single unit. If you're building out compute-dense cabinets and need outlet-level current monitoring without a separate metering overlay, this is the unit to evaluate.

Explore the full Vertiv power distribution lineup for complementary UPS, transfer switches, and thermal management options.

Key Features

• 22kW Maximum Power Capacity: At 22,000W with a 16A maximum current draw, the VP6UV0A2 is sized for high-density cabinets running blade chassis, GPU compute, or hyperconverged infrastructure. That capacity headroom means you're not engineering to the limit and hoping nobody adds a second power supply.
• 48 Mixed C13/C19 Outlets: The outlet mix — C13 for standard servers and peripherals, C19 for high-current loads like large switches or power-hungry compute nodes — means a single PDU can serve a mixed-population cabinet without outlet adapters cluttering your cable management. Forty-eight positions is enough for a fully populated 42U rack with room for dual-corded devices.
• Outlet-Level Monitoring: Monitored outlet-level PDUs give you per-outlet current data, not just aggregate feed current. That matters during capacity planning: you know exactly which outlets are loaded and which have headroom before you assign new gear, rather than discovering an overloaded circuit after a trip.
• LCD Display: The onboard LCD gives local technicians immediate load readings without needing SSH or SNMP access — useful during initial commissioning, troubleshooting, or any time the network management path is unavailable.
• Dual Ethernet (RJ-45) Ports: Two Ethernet ports support daisy-chaining multiple PDUs on a single network drop, reducing switch port consumption in large deployments where you may have 4–8 PDUs per row. This is a practical wiring benefit in high-density rows.
• Comprehensive Protocol Stack: SNMP v1/v2c/v3, HTTPS, SSH, LDAP, RADIUS, TACACS+, Modbus TCP, Syslog, and NTP are all supported. That protocol breadth means the VP6UV0A2 integrates into virtually any enterprise DCIM platform, SIEM, or network management system without protocol adapters or middleware. SNMP v3 with LDAP/RADIUS/TACACS+ means you're not sacrificing authentication standards to gain monitoring capability.
• IPv4 and IPv6 Support: Dual-stack networking means the PDU works in environments that have already migrated to IPv6 or run dual-stack — no firmware workarounds needed as your network infrastructure evolves.

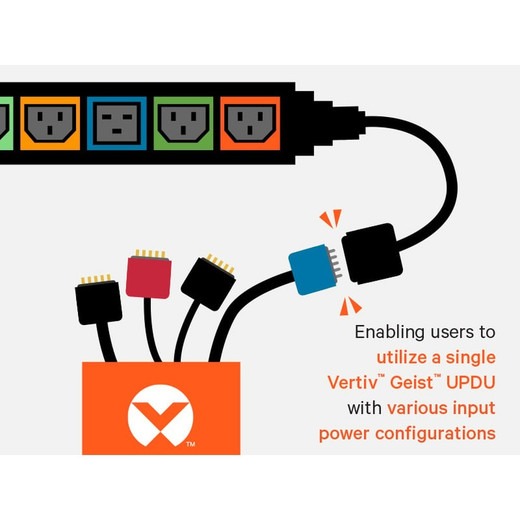

• Variable Power Configuration: The variable power configuration designation indicates flexibility in how input power is provisioned, accommodating different feed arrangements across 50–60 Hz input frequency — relevant for international deployments or mixed-frequency facilities.
• Vertical Form Factor (1905mm depth): At 1905mm long and 94mm wide, this PDU is designed to mount vertically in the rear of a standard rack cabinet. The slim 66mm height profile (in horizontal terms, the width footprint) keeps the unit from consuming usable rack space. Vertical mounting along the rack rail preserves all 42U of usable front and rear space for active equipment.
• Serial and USB Ports: One serial port and one USB port provide options for local console access and firmware management — particularly useful when network access is restricted during maintenance windows or initial configuration.

Integration and Compatibility

The VP6UV0A2's protocol stack is built for enterprise integration. SNMP v3 is the standard for DCIM tools including Vertiv's own Trellis platform, as well as third-party platforms from Schneider, nlyte, and similar vendors. Modbus TCP extends compatibility to building management systems (BMS) and industrial control environments where SNMP is not the primary protocol. LDAP, RADIUS, and TACACS+ support means authentication can be centralized in your existing directory or AAA infrastructure — you're not managing local PDU accounts at scale. Browse rack PDUs and power distribution options to compare unit-level vs. outlet-level monitoring tiers and find the right fit for your cabinet layout.

For broader data center infrastructure planning — including UPS sizing, cooling, and cable management — pairing this PDU with a compatible UPS system and a structured data center infrastructure strategy ensures the monitoring data the VP6UV0A2 provides translates into actionable capacity management, not just logged numbers.

Frequently Asked Questions

Q: How many outlets does the Vertiv VP6UV0A2 have, and what types?

A: The VP6UV0A2 has 48 AC outlets in a mixed configuration of C13 and C19 couplers. C13 outlets support standard server and peripheral connections; C19 outlets accommodate higher-current devices such as large network switches or high-draw compute nodes.

Q: What is the maximum power capacity of the VP6UV0A2?

A: The VP6UV0A2 supports a maximum power output of 22,000W (22kW) at up to 16A maximum current, making it suitable for high-density cabinet deployments with blade servers, GPU compute, or densely populated storage arrays.

Q: What network management protocols does the VP6UV0A2 support?

A: The VP6UV0A2 supports DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, and Modbus TCP. This covers integration with enterprise DCIM platforms, SIEM tools, building management systems, and centralized AAA authentication infrastructure.

Q: Does the VP6UV0A2 support daisy-chaining multiple PDUs?

A: Yes. The VP6UV0A2 includes two Ethernet (RJ-45) ports, which support daisy-chaining multiple PDUs on a single network connection. This reduces switch port consumption in high-density rows where multiple PDUs are deployed per rack.

Q: What are the physical dimensions and mounting orientation of the VP6UV0A2?

A: The VP6UV0A2 measures 1905mm in length (depth), 94mm wide, and 66mm tall, and is designed for vertical mounting along the rear rail of a standard rack cabinet. This orientation preserves all usable horizontal rack unit space for active equipment.

Q: What input frequency does the VP6UV0A2 support?

A: The VP6UV0A2 supports AC input frequencies of 50–60 Hz, making it compatible with both North American (60 Hz) and international (50 Hz) facility power standards.
