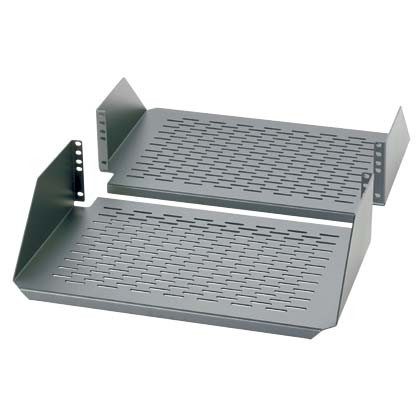

Panduit SRM19CMV3 Vented Cantilevered Rack Shelf, 3U, 19-Inch, Aluminum

Overview

The Panduit SRM19CMV3 is a 3U vented cantilevered shelf designed to mount test equipment, small networking devices, and computing hardware on any EIA 19-inch (483 mm) 2-post rack. Built from aluminum and finished in black, it delivers a 200-lb load capacity without the bulk of a full enclosed tray — a practical choice when you need to stage gear quickly inside an open-frame rack without welding in a full-depth shelf. If you're deploying IP cameras, NVRs, or network appliances in a rack-based infrastructure, having reliable shelf hardware is a foundational requirement that's easy to overlook until the gear is already on-site.

The two-piece construction mounts to both the front and back rails of EIA 2-post racks, distributing load across the frame rather than cantilevering stress off a single attachment point. The rack accessories available in this family are engineered for standard EIA rail spacing, so integration into existing open-frame infrastructure is straightforward.

Key Features

• 200 lb Load Capacity: At 200 lbs, this shelf handles dense networking hardware, UPS units, or stacked test gear without flex or deflection. That rating matters when you're staging equipment pre-installation or running gear in a permanent open-frame rack — undersized shelves fail under dynamic load (vibration, cable tension), and a failure mid-deployment is costly.
• Vented Aluminum Surface: The perforated shelf deck allows convective airflow to pass through rather than blocking it. In a populated rack with active switching or computing hardware, heat stratification is a real problem; a solid shelf acts as a baffle and forces air to route around rather than through equipment. The vented design keeps airflow patterns intact without requiring additional blanking or redirectors.
• EIA 19-Inch (488.7 mm) Compatibility: Sized to the EIA 19-inch standard at 488.7 mm overall width, the SRM19CMV3 drops into virtually any standards-compliant open-frame 2-post rack without modification. If your rack enclosures and infrastructure are EIA-conformant, this shelf integrates without sourcing custom hardware.
• 3U Form Factor: Three rack units of mounting height gives you vertical clearance for equipment with front-panel controls, displays, or cable connections that need accessible space — not just a thin ledge. Useful when staging network appliances or test instruments that require front-panel interaction during commissioning.
• Two-Piece Mounting Design: Attaching to both front and back rails of 2-post racks, the two-piece bracket system spreads the load longitudinally and eliminates the lever-arm stress that single-rail cantilever designs impose. This is the correct approach for heavier equipment — a single-point mount at 200 lbs creates significant torque on the rail.
• Aluminum Construction: Aluminum is lighter than steel at equivalent section strength and doesn't require a paint layer to resist corrosion — relevant in high-humidity environments like data centers with cooling condensation or outdoor-adjacent equipment rooms. The black finish matches standard rack aesthetics without being a dedicated cosmetic feature.
• RoHS Compliant: Meets RoHS (Restriction of Hazardous Substances) requirements, which matters for enterprise procurement, government projects, and any deployment where environmental compliance documentation is part of the bid package. If your project requires a compliance checklist, the SRM19CMV3 is covered for RoHS without additional certification work.

Integration & Compatibility

The SRM19CMV3 is engineered for EIA 19-inch 2-post open-frame racks — the standard form factor used across network closets, data centers, and equipment rooms. It does not specify compatibility with 4-post enclosed cabinet racks; if your deployment uses a 4-post enclosed enclosure, verify rail spacing and depth before ordering. The shelf installs on both front and back rails, so rack depth must be sufficient to accommodate the two mounting points. No tools beyond standard rack hardware are indicated for installation.

This shelf pairs naturally with Panduit's rack and infrastructure lineup, including cable managers, patch panels, and blanking panels that complete an organized rack build. If you're building out a security or network rack from scratch, consider planning rack shelf placement alongside cable routing and airflow management from the start — retrofitting shelf positions in a populated rack is time-consuming.

Competitor cross-reference part numbers on record include: 40108-719, 11359-719, U2MS, 11231-719, and 760084186 — useful if you're replacing an existing shelf from another manufacturer and need to confirm form-factor equivalency before ordering.

Frequently Asked Questions

Q: What rack types is the SRM19CMV3 compatible with?

A: The SRM19CMV3 is designed for EIA 19-inch (483 mm) 2-post open-frame racks. The two-piece shelf mounts to both the front and back rails of EIA-standard 2-post racks. Compatibility with 4-post enclosed cabinets is not specified — verify your rack type before ordering.

Q: What is the load capacity of the SRM19CMV3?

A: The SRM19CMV3 has a rated load capacity of 200 lbs. This is sufficient for most networking hardware, test equipment, and small computing appliances commonly staged in open-frame racks.

Q: Why does the shelf have a vented surface?

A: The vented deck allows air to flow through rather than being blocked by a solid shelf surface. In a populated rack with active heat-generating equipment, a solid shelf can disrupt convective airflow and cause heat buildup. The vented design maintains natural airflow patterns without additional airflow management hardware.

Q: What material and finish is the SRM19CMV3?

A: The shelf is constructed from aluminum and finished in black. Aluminum provides corrosion resistance without a paint layer and is lighter than steel at comparable load ratings.

Q: Is the SRM19CMV3 RoHS compliant?

A: Yes, the SRM19CMV3 meets RoHS (Restriction of Hazardous Substances) compliance standards, making it suitable for projects with environmental compliance documentation requirements including government and enterprise procurement.

Q: How many rack units does the SRM19CMV3 occupy?

A: The SRM19CMV3 occupies 3U (three rack units) of vertical space in a standard EIA rack.

Eden Phillips

The SRM19CMV3 is one of those shelf SKUs that looks simple on paper but causes real headaches when the wrong one gets spec'd. The 200-lb rated load capacity and two-piece front-and-back rail mount are the two specs that separate this from cheaper single-rail cantilever shelves — and those two details matter when you're staging dense networking hardware or UPS units in an open-frame 2-post rack. I've seen single-rail cantilever shelves at half this load rating flex visibly under a 30-lb switch; the SRM19CMV3's dual attachment points eliminate that lever-arm problem entirely.

Technical Highlights:

• 200-lb Load Rating: Rated for 200 lbs across the shelf surface — enough headroom for stacked networking appliances, test instruments, or small UPS units without approaching the load limit during normal use.
• Vented Aluminum Deck: Perforated surface preserves rack airflow, avoiding the heat stratification problem that solid shelves create in active equipment racks. No additional blanking or airflow redirectors needed to maintain thermal management.
• EIA 19-in / 488.7 mm Width: Dimensioned to the EIA standard at 488.7 mm overall width — fits any conformant 2-post open-frame rack without shimming or rail modification, and the 3U height gives enough clearance for equipment requiring front-panel access during commissioning.

Deployment Considerations:

• This shelf is specified for 2-post EIA open-frame racks only. If your rack is a 4-post enclosed cabinet, verify rear rail spacing and available depth before ordering — the two-piece mount requires access to both front and rear rails.
• At 19.24 inches overall width, this shelf fills the full rack bay width. Plan cable routing before mounting equipment on the shelf — side-exit cabling will be constrained once the shelf is populated.

The SRM19CMV3 is the right call for network closet and equipment room builds where open-frame 2-post racks are the standard and load capacity is a real consideration — particularly commissioning environments where test equipment rotates on and off the rack and a 200-lb rated surface with proper airflow management pays for itself in reduced thermal incidents.
