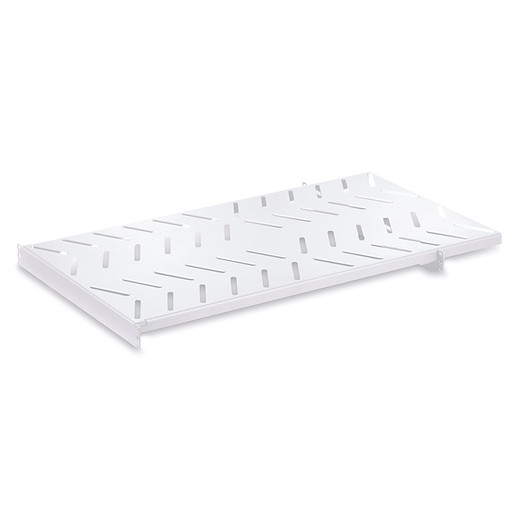

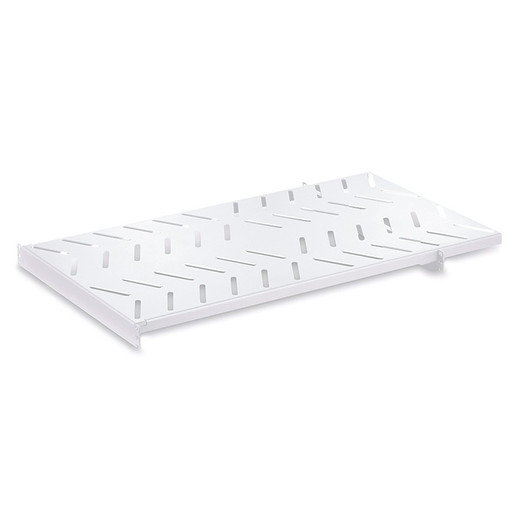

Panduit RSHLF36WH 4-Post Rack Shelf, 1U, 36-Inch Deep, Steel, White

Overview

The Panduit RSHLF36WH is a 1U, 19-inch wide rack shelf designed specifically for 4-post rack systems in data center and enterprise environments. At 36.5 inches of usable depth, it handles large networking equipment — managed switches, KVM units, UPS modules, and other devices that a standard 1U tray can't safely support. If you've dealt with heavy gear hanging off a 2-post shelf and flexing under load, this is the shelf built to solve that problem.

Panduit engineered the RSHLF36WH from steel construction with a clean white finish that matches standard Panduit 4-post rack aesthetics. The adjustable support bracket lets you set the mounting depth to match your equipment rails, so you're not locked into a single configuration when your rack population changes over time. Browse the full Panduit rack accessories catalog for compatible blanking panels, cable managers, and enclosure components that complete the build.

Key Features

• 36.5-Inch Depth: Supports deep networking appliances and chassis that a shallow shelf can't accommodate — critical for data center gear that ships in 18-24 inch deep form factors and needs full-length contact with the shelf surface, not just a lip.
• 19-Inch (483mm) Width: Fits any standard EIA-compliant rack shelf opening — no adapter plates, no rail shimming.
• 1U Profile: Takes only one rack unit of vertical space, preserving density in packed cabinets. Useful when you need to insert a shelf mid-rack without disrupting adjacent patch panels or switches.
• Steel Construction: Handles the load of heavy networking equipment without flex or sag — steel outperforms aluminum when you're resting a chassis on it for months or years rather than temporary staging.
• Adjustable Support Bracket: Mount to equipment rails at variable depths — useful when retrofitting into existing racks with non-standard rail positions or when equipment depths change between refresh cycles.
• 4-Post Rack Optimized: Designed explicitly for 4-post open-frame and enclosed racks, distributing equipment weight across four contact points rather than two, which matters on heavy gear.
• RoHS Compliant: Meets European restriction-of-hazardous-substances requirements — relevant for enterprise procurement with environmental compliance mandates and public-sector bids that require RoHS documentation.
• White Finish: Matches Panduit's 4-post rack line for a consistent cabinet appearance — relevant in managed data centers where visual uniformity and label visibility are operational priorities.

Integration & Compatibility

The RSHLF36WH is built for Panduit's 4-post rack system but will mount in any 4-post open-frame or enclosed rack with standard EIA-310 19-inch rails and sufficient depth. Pair it with a compatible rack cable manager to keep patching clean when the shelf-mounted device adds additional cabling load to the vertical run. For builds requiring thermal separation, reference Panduit's cabinets and enclosures line for blanking and airflow accessories that work alongside this shelf.

Frequently Asked Questions

Q: What rack post spacing does the RSHLF36WH require?

A: The RSHLF36WH is designed for 4-post rack systems with standard 19-inch (483mm) EIA rail spacing. It is not designed for 2-post relay racks.

Q: What is the actual shelf depth?

A: The shelf depth is 36.5 inches, accommodating deep networking chassis and appliances that require full-length shelf support.

Q: Is the RSHLF36WH RoHS compliant?

A: Yes. The RSHLF36WH meets RoHS (Restriction of Hazardous Substances) compliance standards.

Q: Can the mounting depth be adjusted?

A: Yes. An adjustable support bracket allows the shelf to mount to equipment rails at various depths, accommodating different rack configurations.

Q: What color is the RSHLF36WH?

A: White. It is designed to complement Panduit's white 4-post rack system.

Q: Does the RSHLF36WH ship as a single unit?

A: Yes. Package quantity is 1 shelf per unit.

Karl Wilson

The RSHLF36WH is the shelf I reach for when a customer has deep chassis — managed switches, console servers, or rackmount UPS units — that simply can't be half-supported on a shallow tray. At 36.5 inches of depth with an adjustable support bracket, this shelf actually contacts the full underside of the equipment rather than leaving a cantilevered overhang that puts stress on the front panel ears.

Technical Highlights:

• 36.5-Inch Depth: The deepest common shelf in the 1U class — purpose-built for large networking gear that 24-inch shelves leave partially unsupported.
• Steel Construction: Unlike aluminum shelves common in lighter-duty lines, steel resists flex under sustained heavy load — important when a chassis sits on the shelf continuously rather than just during staging.
• Adjustable Support Bracket: Accommodates rail-to-rail variation in existing racks — a practical detail when you're retrofitting into a cabinet that wasn't spec'd for this specific shelf depth.

Deployment Considerations:

• Confirm your rack's interior depth before ordering — 36.5 inches of shelf in a 36-inch interior depth cabinet is a conflict. Measure rail-to-rear-door clearance first.
• The RSHLF36WH is white; if you're installing into a black rack, the color mismatch will be visible. Panduit offers matching rack colors — verify before mixing.

Best fit: data center builds on Panduit's 4-post white rack system where large networking appliances need full-depth shelf support and the rack population demands 1U efficiency rather than sacrificing 2U to a deeper fixed shelf.
