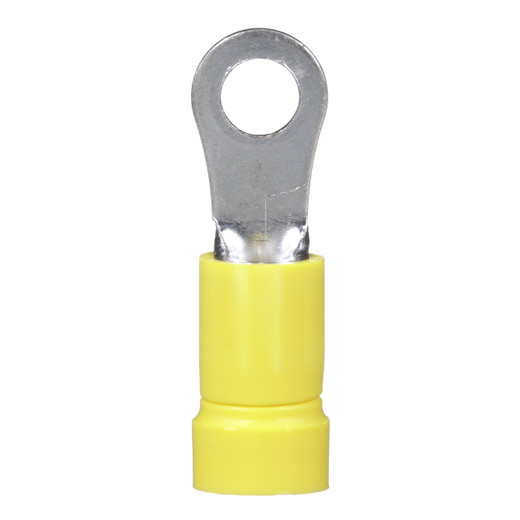

Panduit RING TERMINAL VINYL INSULATED - PV14-8RB-3K

Panduit PV14-8RB-3K Concise Descriptor

Overview

The Panduit PV14-8RB-3K is a vinyl-insulated ring terminal designed for terminating 14 AWG stranded copper wire onto electrical studs up to size #8. This terminal ensures a secure, vibration-resistant connection in control panels, power distribution units, and other electrical enclosures where reliable connections are critical. Its construction prevents wire fraying and provides electrical insulation, simplifying installation and enhancing safety in commercial and industrial environments. The PV14-8RB-3K is a standard component for ensuring proper electrical grounding and power distribution.

Compatibility

This ring terminal is designed for use with 14 AWG stranded copper wire. It fits electrical studs with a #8 screw or bolt size. It is compatible with a wide range of electrical distribution blocks, terminal strips, and busbars commonly found in industrial control panels, automation systems, and power distribution cabinets.

Installation Notes

For optimal performance and connection integrity, use a Panduit crimping tool (e.g., CT-100, CT-1550, or CT-2500) with the appropriate die set for 14 AWG wire. Ensure the terminal is crimped securely to the wire conductor. The recommended crimp length is 0.31 inches (7.9mm). The terminal's flared opening facilitates wire insertion. Operating temperature range is -40°F to 176°F (-40°C to 80°C).

What's in the Box

• 100x Panduit PV14-8RB-3K Ring Terminals
