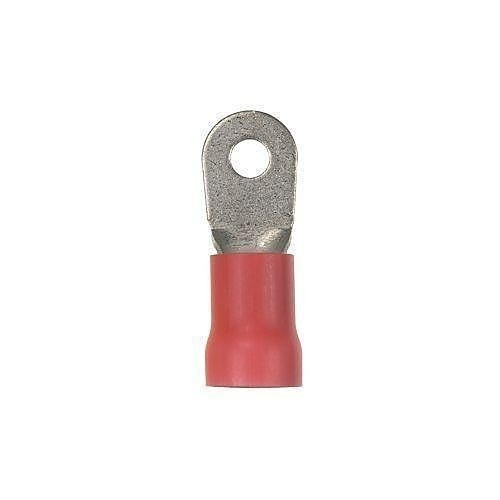

Panduit PV8-14R-QY Ring Terminal Large Wire Vinyl
Overview
The Panduit PV8-14R-QY is a vinyl-insulated ring terminal designed for terminating 8 AWG wire. It provides a secure, reliable electrical connection point for large gauge conductors, commonly found in power distribution panels, motor control centers, and industrial automation systems. This terminal ensures a positive connection, preventing wire fraying and reducing the risk of loose connections under vibration or thermal cycling, critical for maintaining system integrity in demanding applications.
Compatibility
This terminal is designed for use with 8 AWG wire. It is compatible with Panduit's crimping tools, such as the CT-1000, CT-1550, CT-2000, CT-2500, CT-3000, CT-3500, CT-4000, and CT-500, ensuring proper mechanical and electrical termination. The ring tongue is sized to fit #14 stud sizes, providing a secure fit on standard electrical hardware.
Installation Notes
For optimal performance, use Panduit's recommended crimping tools and ensure the wire is stripped to the correct length before insertion. The vinyl insulation provides electrical isolation and strain relief, rated for up to 105°C (221°F) continuous use. Proper crimp force is essential for achieving the rated conductivity and pull-out strength.
What's in the Box
- 1x Panduit PV8-14R-QY Ring Terminal
