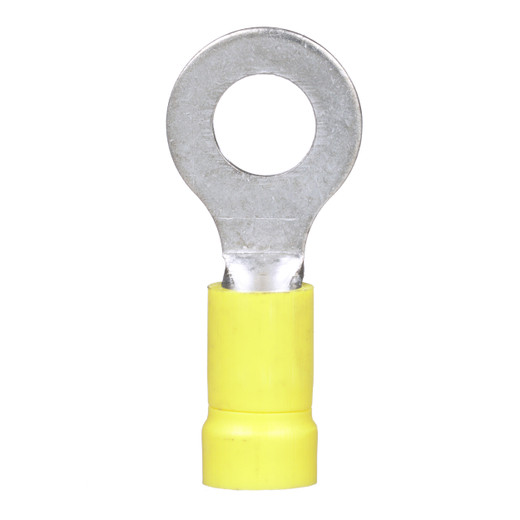

Panduit PV10-14R-L Pan-Term™ Ring Terminal

The Panduit PV10-14R-L is a vinyl-insulated ring terminal engineered for secure, long-term wire termination in commercial security, access control, UPS, and datacenter power distribution installations. Designed for 10-12 AWG stranded copper wire and 1/4" stud connections, this Pan-Term™ terminal features a reinforced barrel design that prevents splitting during crimping, internal serrations that maximize tensile strength and electrical contact, and an insulation support sleeve that protects conductors at bend points. The yellow vinyl insulation is color-coded to AWG range per industry standard, rated UL94V-0 for flammability, and provides a 600V working voltage rating. Each terminal is tin-plated to resist corrosion in high-humidity environments common to equipment rooms, telecom closets, and outdoor enclosures. Supplied in 50-piece packages (500 per carton), the PV10-14R-L is cULus Listed to 587H (file E52164) and CSA Certified (LR31212), meeting NEC and CEC requirements for premise wiring systems.

Key Features

• 10-12 AWG wire range, 1/4" stud size — fits standard grounding lugs, circuit breaker terminals, and battery posts in security and UPS applications
• Reinforced solder barrel construction prevents drum splitting during compression crimping, ensuring consistent terminations across high-volume installation jobs
• Internal barrel serrations create multiple contact points for superior tensile strength and low-resistance electrical contact, critical for power-limited fire alarm and access control circuits
• Insulation support sleeve extends over wire entry point, preventing conductor fatigue and insulation damage in tight-bend applications such as panel wiring and rack-mount PDU connections
• Closed-ring design guarantees secure attachment even in high-vibration environments — industrial access gates, turnstiles, vehicle barriers, and outdoor PTZ camera mounts
• Tin-plated copper construction resists oxidation and maintains low contact resistance over decades of service in coastal, high-humidity, or underground installations
• Yellow vinyl insulation rated UL94V-0 for flame resistance, color-coded per NEMA WC 27500 for easy field identification during troubleshooting and inspection
• Compatible with Panduit CT-series hand crimpers (CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L) and UP14ZLW pneumatic tooling for production-scale crimping
• cULus Listed (587H, file E52164) and CSA Certified (LR31212) — meets NEC Article 110.14(A) and CEC 12-3012 torque and wire-bending requirements for commercial installations
• 50-piece package quantity — right-sized for field service calls, retrofit jobs, and small project kits; 500-piece cartons available for large-scale installations

Designed for Commercial Security and Critical Power Applications. The PV10-14R-L addresses the wire termination challenges integrators face daily: access control panels with dozens of door-strike and magnetic-lock circuits, UPS battery strings requiring corrosion-resistant lugs, PoE switch grounding to meet NFPA 70 bonding standards, and fire alarm control panels where reliable low-resistance terminations are life-safety critical. The reinforced barrel design eliminates the crimp-induced barrel splits that plague economy terminals, while the internal serrations bite into stranded conductors to maintain contact pressure even after years of thermal cycling. In high-vibration installations — motorized gates, industrial door operators, outdoor camera mounts subject to wind load — the closed-ring design prevents accidental disconnection that can occur with spade or hook terminals. Tin plating extends service life in coastal environments (salt fog per ASTM B117), telecom vaults (high humidity), and underground conduit runs (condensation exposure), making the PV10-14R-L the go-to choice for integrators who specify corrosion-resistant terminations in bid documents.

Tooling Compatibility and Installation Best Practices. Panduit specifies six compatible crimping tools for the PV10-14R-L, each delivering the 4-indent hex crimp profile required for cULus and CSA compliance. The CT-100 hand crimper is the field-service standard for low-volume work; the CT-1550 and CT-1551 ratcheting crimpers provide consistent force for production jobs; the CT-2300/ST (also sold as CD-550) offers interchangeable die sets for mixed-gauge installations; and the CT-2500/L (also CT-2550CH) is the heavy-duty option for all-day panel builds. For manufacturing environments or large retrofit projects, the UP14ZLW pneumatic crimper (also branded CD-550) delivers repeatable crimps at production speed. Proper crimping compresses the barrel 360 degrees around the conductor, embedding the internal serrations into individual wire strands to create gas-tight connections that resist oxidation. Installers should strip wire to the depth marked on the barrel (typically 5/16"), avoid nicking strands during strip operations, and verify that all strands are fully inserted before crimping — partial insertion reduces tensile strength and increases contact resistance. After crimping, a gentle tug test (15-20 lbf for 10 AWG, 10-15 lbf for 12 AWG) confirms mechanical integrity. When terminating to studs, torque to manufacturer specifications (typically 80-100 in-lbf for 1/4" hardware) using a calibrated torque screwdriver or wrench — over-torquing deforms the ring and creates stress risers, while under-torquing allows the connection to loosen under vibration.

Compliance, Packaging, and Cross-Reference. The PV10-14R-L is cULus Listed under file E52164 to UL 486A-486B (wire connectors) and CSA C22.2 No. 65 (same scope), meeting the temperature-rise, current-carrying, and pull-out-force tests required for use in NEC Class 1 and Class 2 circuits. The UL94V-0 flammability rating on the vinyl insulation satisfies NEC 110.3(B) suitability requirements for installation in plenum-rated cable trays and equipment enclosures. Each terminal is bulk-packed in bags of 50 (sufficient for 2-3 typical access control panels or one small UPS installation); cartons of 500 suit large projects or integrator stock rooms. Panduit's PV-series competes directly with Thomas & Betts Sta-Kon, 3M Scotchlok, Ideal Industries, and Molex/Perma-Seal terminals — the competitive part numbers listed in the spec sheet (e.g., Thomas & Betts 54171, Ideal 83-2351, 3M MV10-14R/SX) are dimensional and electrical equivalents, though Panduit's reinforced barrel and internal serrations often deliver superior crimp consistency and tensile strength in side-by-side testing. For integrators managing multi-manufacturer BOMs, the PV10-14R-L's wide tool compatibility (works with most hex-crimp hand tools, not just Panduit-branded) simplifies field operations and reduces the tool inventory burden on service technicians.
