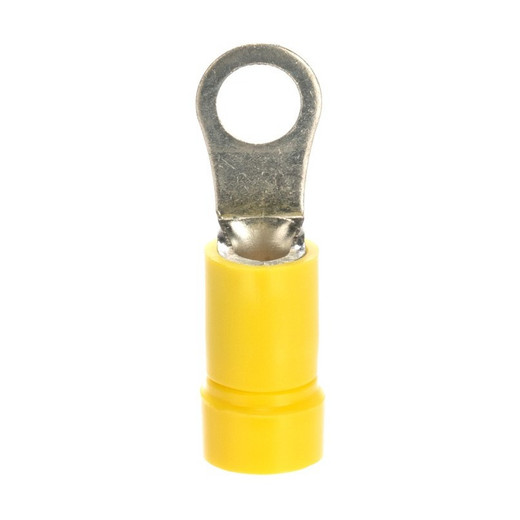

Panduit PV10-10R-D Pan-Term Ring Terminal

The Panduit PV10-10R-D is a vinyl-insulated ring terminal engineered for 10-12 AWG stranded copper wire and #10 stud connections in commercial security, access control, and low-voltage power distribution systems. Part of Panduit's Pan-Term product line, this terminal features a reinforced barrel seam that resists splitting during crimping, internal serrations for maximum wire contact and tensile strength, and extended insulation that provides strain relief at the crimp point. UL and CSA listed for compliance-critical installations, the PV10-10R-D delivers the mechanical reliability and code adherence that security integrators need when terminating door strikes, magnetic locks, camera power supplies, and UPS battery banks.

Key Features

• Reinforced barrel seam prevents splitting during crimping, ensuring consistent mechanical and electrical performance across all terminations
• Internal barrel serrations bite into wire strands for maximum contact area and tensile strength, critical in high-vibration environments like vehicular gates and industrial facilities
• Extended vinyl insulation barrel provides strain relief and protects against conductor exposure, preventing shorts in tight enclosures
• Ring tongue design with full 360-degree contact ensures secure connection under vibration, unlike spade terminals that can back out
• Tin-plated copper construction resists corrosion in humid or outdoor-rated enclosures, maintaining low contact resistance over years of service
• cULus listed (587H E52164) and CSA certified (LR31212) for inspector acceptance in commercial and institutional projects
• UL94V-0 flammability rating meets fire code requirements for plenum-adjacent and critical infrastructure installations
• Color-coded yellow insulation for instant wire gauge identification during troubleshooting and adds

The PV10-10R-D addresses a persistent problem in security installations: terminations that fail under vibration or pull-through during inspector testing. The reinforced barrel seam is engineered to withstand the compression forces of ratcheting and hydraulic crimpers without cracking—a failure mode that creates intermittent connections in door hardware circuits. Internal serrations grip each strand of the wire bundle, distributing tensile load across the entire crimp rather than concentrating stress at the insulation transition. This design is essential when terminating power feeds to electromagnetic locks, where a single pulled wire can create a life-safety issue during fire alarm integration testing. The extended insulation barrel supports the wire at the crimp exit point, preventing fatigue cracks in flex conduit runs and tight-bend enclosure entries common in retrofit access control projects.

Designed for compatibility with Panduit's CT-series and UP-series crimping tools, the PV10-10R-D indexes into the tool nest without rotation, ensuring proper die alignment and eliminating under-crimped or over-crimped terminations that plague installers using adjustable generic crimpers. The 10-12 AWG wire range covers the majority of low-voltage DC power distribution in security—#12 for typical camera home runs under 200 feet, #10 for mag lock feeds and central UPS battery strings where voltage drop calculations demand heavier conductors. The #10 stud size matches the terminal blocks on most commercial power supplies, battery chargers, and supervised relay modules, eliminating the need to stock multiple terminal assortments on the truck.

Packaged 500 per box for volume installations—enough to terminate approximately 250 two-wire circuits or complete a typical 40-door access control system with spares for future adds. The tin-plated finish maintains contact integrity in the partially climate-controlled environments common to electrical rooms and telecom closets, where seasonal humidity swings can corrode bare copper terminations and create voltage drop that shows up as erratic strike behavior or camera reboots. For integrators working under design-build contracts or prevailing-wage projects where inspector scrutiny is high, the cULus and CSA listings provide the paper trail that keeps rough-in inspections moving and avoids costly re-work calls.
