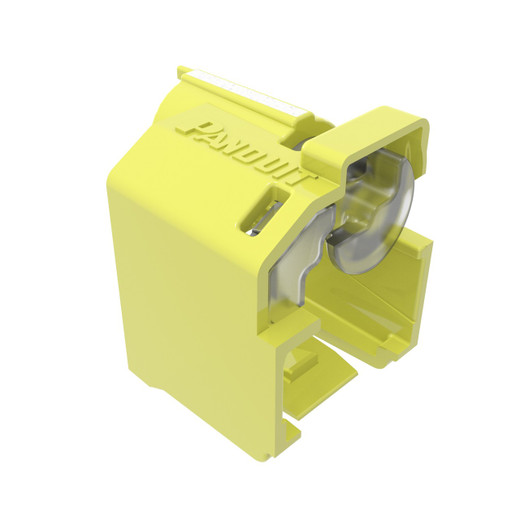

Panduit PSL-DCPLRE-YL RJ45 Plug Locking Device
Unauthorized disconnections and accidental unplugs in production network environments create unplanned downtime and service tickets that drain IT resources. The Panduit PSL-DCPLRE-YL addresses this risk with a polycarbonate plug-locking mechanism engineered for RJ45 patch cords in shallow-seated installations. This yellow 10-pack secures copper links at the plug level, preventing both deliberate tampering and inadvertent cable removal during routine maintenance or moves. The extended-sleeve design shields the latch from damage in high-density rack environments where plug clearance is limited. Each kit includes a dedicated extraction tool, ensuring controlled removal without stressing the connector or damaging the plug body when repatching is required.
Key Features
- Low-profile locking device engineered for RJ45 plugs installed with limited insertion depth
- Extended polycarbonate sleeve protects latch mechanism from accidental release in tight rack spaces
- Yellow housing provides visual identification for color-coded cable management schemes
- 10-device pack with extraction tool eliminates need for improvised removal methods
- 0.74" height × 0.55" width footprint fits standard patch panel and switch port spacing
- Polycarbonate construction resists impact and provides long service life in 24/7 environments
The PSL-DCPLRE-YL targets a specific failure mode in structured cabling deployments: patch cords that fail to fully seat due to tight bundling, cable tray interference, or plug-boot clearance issues. When an RJ45 connector does not click into place with full latch engagement, the plug relies solely on friction to maintain contact. The embedded locking device compensates by gripping the plug body and preventing withdrawal, effectively converting a partially-seated connection into a mechanically secured link. This is critical for backbone trunks, server uplinks, and SAN connections where a single accidental tug during adjacent rack work can take a production system offline. The extended sleeve adds a second layer of protection by covering the latch itself, blocking both intentional override attempts and the common accident of snagging a latch with a screwdriver or cable tie gun during congested-rack maintenance. The 18.7 mm overall height and 13.9 mm width are sized to fit within standard 1U patch panel port grids and switch faceplates without blocking adjacent ports, a constraint that eliminates many aftermarket locking products from consideration in high-density environments.
Deployment contexts include data center core switches where a single misplaced hand can drop hundreds of VLANs, building distribution frames where custodial or HVAC contractors work near active racks, and secure facilities where physical access control extends to individual network connections. The yellow color integrates into TIA-606-C administration standards, commonly assigned to DMZ segments, voice trunks, or maintenance circuits that require visual differentiation from production data links. The 10-pack format with included extraction tool supports project-based installations: lock down a full patch panel row, secure all links to a critical chassis switch, or protect a newly commissioned fiber-to-copper media converter stack without needing to source removal tools separately or risk damaging plugs during future MAC operations. The polycarbonate material specification ensures the device will not embrittle or crack under the thermal cycling typical of enclosed rack environments, and the compact carton quantity of 20 packs (200 devices total) provides inventory efficiency for integrators managing recurring deployment schedules across multiple sites.
This product fits the tactical security layer in zero-trust physical infrastructure strategies, where every potential point of unauthorized modification receives a discrete control. The locking device does not replace port security or 802.1X authentication, but it raises the bar for insider threats and reduces the service-interruption surface area from accidental human contact. For integrators responsible for maintaining uptime SLAs in co-location facilities, hospital data centers, or financial trading floors, the PSL-DCPLRE-YL delivers a simple mechanical interlock that prevents the single most common cause of unexplained link loss: someone pulled the wrong cable.
