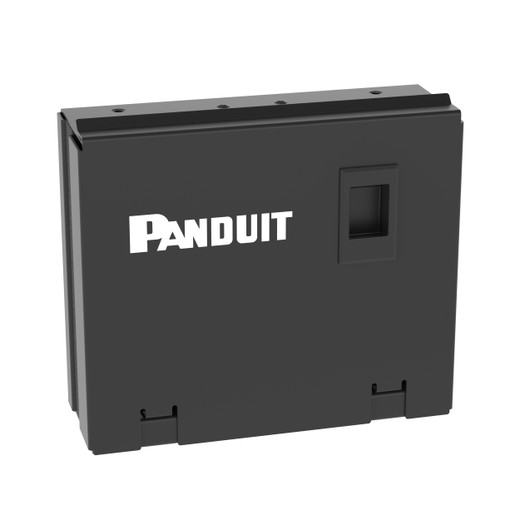

Panduit CPB6BL PanZone 6-Port Consolidation Point Box

Overview

The Panduit CPB6BL is a steel, 6-port consolidation point box from the Panduit PanZone cabling line — purpose-built for structured cabling deployments that need a defined interconnection or cross-connection point within the permanent link. Whether you're running horizontal cabling to an open-plan workspace, a warehouse floor, or a ceiling distribution zone, this box gives you a code-compliant, lockable termination point without a full wall-mount patch panel. It ships with a Mini-Com panel pre-installed, so you're not hunting for compatible faceplates on a separate order.

At 7.2 × 6.3 inches (181.6 × 158.6 mm), the CPB6BL is compact enough to tuck above a drop ceiling tile or mount flush under a raised floor panel, yet large enough to manage six structured cabling connections with room for proper bend-radius management on patch cables. Black powder-coat steel keeps it looking clean in exposed installations.

Key Features

• 6-Port Mini-Com Panel Included: The panel ships pre-installed and accepts Panduit Mini-Com modules — meaning you bring your own RJ-45 keystones, fiber inserts, or coax adapters and snap them in. No separate panel purchase, no compatibility guesswork on faceplate format.
• Three Mounting Configurations: In-ceiling, on-wall, and under-floor mounting are all supported by the same enclosure. On a single campus cable run where some zones are above the ceiling and others are sub-floor, one SKU covers all three — simplifies your BOM and your spare-parts shelf.
• UL 2043 Listed: UL 2043 is the standard for communications cables and equipment installed in air-handling spaces (plenums). If the CPB6BL goes above a drop ceiling that serves as a return-air plenum — the most common commercial ceiling scenario — this listing keeps the installation code-compliant without a conduit workaround. If your ceiling is NOT a plenum, this is still valid; you just have more options.
• UL 1863 Listed: UL 1863 covers communications circuit accessories. Listing under both standards means the box has passed independent testing for both the fire/smoke performance in plenum spaces (2043) and general communications accessory safety (1863) — not just one or the other.
• Steel Construction: Steel over plastic means the enclosure handles the mechanical stress of repeated module swaps, accidental cable pulls, and foot traffic in under-floor environments without cracking or warping. For above-ceiling installs where contractors may be stepping around the enclosure during later trades work, that durability matters.
• Compact Form Factor — 7.2 × 6.3 in (181.6 × 158.6 mm): Small enough to fit in standard ceiling grid bays or under standard raised floor tiles. Measure your tile grid before specifying — at 7.2 inches wide, it clears a standard 24-inch floor tile with room, but verify clearance in tight interstitial spaces where conduit or HVAC ducts compete for the same void.
• Black Finish: Matches standard black cable management and black ceiling grid hardware. In exposed-ceiling architectural spaces where aesthetics are a design requirement, a matching finish reduces the visual clutter of a visible termination point.
• PanZone Ecosystem: Designed as part of Panduit's PanZone zone cabling system, the CPB6BL integrates with the broader PanZone consolidation point architecture — including cable assemblies, zone boxes, and outlet hardware — so every component in the permanent link comes from the same design framework.

Integration & Compatibility

The CPB6BL accepts standard Panduit Mini-Com modules, giving it compatibility with the full range of Mini-Com copper, fiber, and coax inserts. This makes it suitable for mixed-media zones — for example, a consolidation point serving both data drops (Cat 6A RJ-45) and analog or IP camera feeds (coax or fiber inserts) in a IP camera infrastructure where cabling home-runs to a central IDF are impractical.

Installation meets the consolidation point model defined in ANSI/TIA-568 horizontal cabling standards, where the consolidation point sits between the telecommunications room and the work area outlet, within the permanent link. The box does not provide switching, PoE, or active electronics — it is a passive termination and connection management enclosure. Pair it with a PoE switch at the IDF for powered end-device runs, or with a fiber distribution unit for long horizontal runs that exceed copper distance limits.

The included Mini-Com panel supports module configurations for Cat 5e, Cat 6, Cat 6A, and specialty inserts — verify the specific module part numbers against your cabling category spec before ordering keystones separately.

What's in the Box

• 1x Panduit CPB6BL consolidation point box (steel, black)
• 1x 6-port Mini-Com panel (pre-installed)

Frequently Asked Questions

Q: Is the CPB6BL rated for installation in air-handling plenum ceilings?

A: Yes. The CPB6BL carries a UL 2043 listing, which is the required certification for equipment installed in plenum air-handling spaces. It also meets UL 1863 for communications circuit accessories.

Q: What keystone modules are compatible with the CPB6BL?

A: The CPB6BL ships with a pre-installed Panduit Mini-Com panel. It accepts the full Panduit Mini-Com module family, including Cat 5e, Cat 6, Cat 6A copper keystones, fiber inserts, and coax adapters. Modules are purchased separately.

Q: Can the CPB6BL be installed under a raised floor?

A: Yes. The CPB6BL supports three mounting configurations: in-ceiling, on-wall, and under raised floor. The 7.2 × 6.3 inch (181.6 × 158.6 mm) footprint fits within standard raised floor tile bays, though you should verify local clearance against conduit and HVAC routing.

Q: Does the CPB6BL include active electronics or PoE capability?

A: No. The CPB6BL is a passive enclosure — it provides physical termination and connection management only. No switching, routing, or PoE is built in. Active network equipment lives at the IDF or telecommunications room, not at the consolidation point.

Q: How many ports does the CPB6BL support?

A: Six ports, via the included pre-installed Mini-Com panel. Each port position accepts one Mini-Com module insert.

Q: Is the CPB6BL part of a larger zone cabling system?

A: Yes. The CPB6BL is part of Panduit's PanZone zone cabling ecosystem, designed to work alongside PanZone cable assemblies, outlet hardware, and zone enclosures within an ANSI/TIA-568-compliant horizontal cabling architecture.
