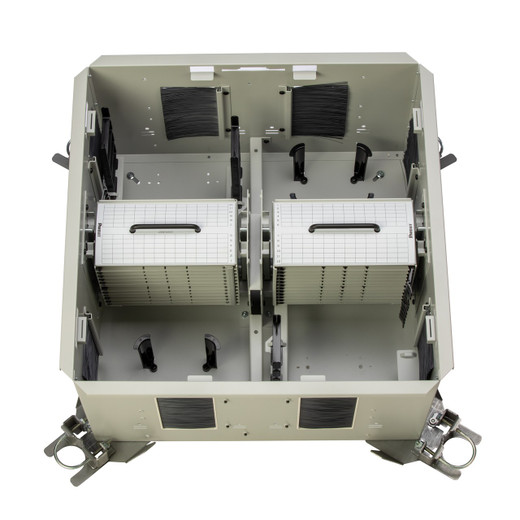

The Panduit FLEX-ZRFEG HD Flex Zone enclosure delivers 288-port fiber capacity in a raised floor form factor designed for datacenter zone distribution. Built on a 22.6" × 22.6" footprint that aligns with standard 24" floor tiles, this enclosure supports high-density MPO trunk-to-LC breakout deployments or direct MPO adapter panel installations. The hybrid aluminum, steel, and plastic construction provides structural rigidity for underfloor cable loading while maintaining thermal dissipation in confined plenum spaces. This enclosure eliminates the overhead-to-floor transition bottleneck common in leaf-spine architectures by placing aggregation points directly at the raised floor plane.
Datacenter underfloor fiber distribution faces competing constraints: floor tile modularity limits enclosure width, plenum depth restricts height, and trunk counts from spine switches demand 100+ fiber pairs per zone. The FLEX-ZRFEG addresses this by stacking 12 or 24 HD Flex cassette slots within a 22.6" square footprint — the dimensional sweet spot for retrofit installations where existing tile cuts and HVAC plenums can't be reconfigured. Unlike overhead ladder-rack enclosures that require vertical drops and transitional panels, this unit mounts directly to the raised floor structure, placing aggregation within 12 inches of server cabinet entries. That proximity reduces patchcord counts, simplifies MAC operations, and confines failure domains to a single floor zone rather than spanning multiple racks.
The enclosure's material composition balances three datacenter realities: aluminum provides frame rigidity without the weight penalty of all-steel designs (critical when mounting to suspended floor stringers), steel reinforces high-stress hinge and latch points, and engineering-grade plastic forms the cassette guide rails and rear cable glands. This hybrid approach prevents the frame flex and door misalignment issues common in all-plastic underfloor boxes, while avoiding the thermal bridging and condensation risk of solid metal enclosures in high-delta-T plenum environments. The 12-inch depth accommodates MPO trunk entry from the rear with 90° service loops, LC patchcord dressing to the front, and mid-enclosure slack storage — all without violating the 30mm minimum bend radius spec for single-mode MPO trunk cables.
Deployment typically follows a trunk-first, breakout-later pattern: initial installation lands MPO trunk cables from the spine aggregation layer, terminates them on rear-mounted MPO adapter panels, and provisions cassette slots as leaf switch port counts grow. A single 12-fiber MPO trunk breaks out to 12 duplex LC connections via one HD Flex cassette, so a fully populated 24-cassette enclosure can serve 288 LC ports from 24 MPO trunks — a 12:1 cable-count reduction compared to individual LC fiber runs from a central MDF. This architecture also isolates moves-adds-changes to the cassette layer; swapping a cassette to re-allocate 12 ports between VLANs or tenants requires no trunk re-termination and no service interruption to adjacent cassettes.
The 22.6" × 22.6" footprint dimension is deliberately slightly undersized relative to the 24" tile grid, providing 0.7" perimeter clearance for tile removal and HVAC grille access without dismounting the enclosure. This clearance also accommodates minor floor-grid misalignment in retrofit scenarios where legacy tile cuts don't perfectly match the modern 24" standard. The enclosure ships with mounting brackets designed for both compression-post and bolt-down stringers, the two most common raised floor support structures in commercial datacenters. Compression-post installations use spring-loaded plates that clamp between the floor surface and the bottom of the tile, distributing enclosure weight across four contact points without penetrating the tile itself. Bolt-down installations fasten directly to the steel stringer grid, suitable for seismic zones or installations where floor loading exceeds the compression rating of the tiles.
Cable entry follows a radial pattern: the rear panel provides two knockouts for MPO trunk ingress from the underfloor void, while each side panel includes a brush-grommet slot for LC patchcord egress toward adjacent server rows. This radial routing prevents the cable-bundle overlap and congestion typical of single-entry designs, particularly in high-density zones where multiple enclosures serve back-to-back server rows. The internal cable management system includes adjustable Velcro straps and D-ring anchors, allowing installers to create service loops for future cassette replacement without tangling active patchcords. Panduit's documentation specifies a 1.5× service loop for MPO trunks and 1.0× for LC patch — enough slack to remove and reinstall any cassette without disturbing adjacent modules.
Thermal performance in underfloor plenums depends on minimizing dead-air pockets and maintaining airflow around passive equipment. The FLEX-ZRFEG's vented top and side panels allow conditioned air rising through the floor tiles to circulate around the cassette stack, preventing the heat buildup that can degrade connector performance and accelerate plastic oxidation. In high-delta-T environments (cold aisle 65°F, plenum 55°F), this passive ventilation keeps internal enclosure temperature within 2°F of ambient plenum conditions, well below the 140°F deration threshold for Panduit's LC and MPO connectors. The gray powder-coat finish provides corrosion resistance in the 40–60% relative humidity range typical of datacenter underfloor spaces, where condensation on bare steel can form during rapid cooling-system startups.
Compatibility with the HD Flex cassette family gives this enclosure a migration path from legacy 10G LC infrastructure to 40G/100G MPO trunking without forklift replacement. Early-phase deployments might populate only 6 cassettes (72 ports) to serve initial leaf switches, then add cassettes incrementally as server count grows. Later-phase upgrades can swap 12-fiber cassettes for 24-fiber models (same physical slot, double the port density) to support 100G QSFP breakout or high-radix spine uplinks. The enclosure's 288-port maximum capacity assumes 12-fiber cassettes; using 24-fiber models theoretically doubles capacity to 576 ports, though real-world installations rarely exceed 300 ports per zone due to patchcord-management and MAC-operation complexity.
Installation and service access follow a front-hinged door design with a keyed cam lock, standard for datacenter environments where physical security and accidental-access prevention matter. The door opens 180° and includes a stay-open detent, so technicians performing adds or swaps don't need a third hand to hold the door while dressing cables. Interior lighting is not integrated — technicians typically use headlamps or stick lights during underfloor work — but the white plastic cassette guide rails provide contrast against the gray enclosure body, improving visibility in low-light conditions. Cassette insertion and removal require no tools; the HD Flex latch mechanism uses a squeeze-to-release lever that's operable with gloved hands.
The FLEX-ZRFEG is spec'd for commercial datacenter applications: colocation provider aggregation zones, enterprise campus network closets with raised floors, and hyperscale leaf-layer distribution. It's not rated for outdoor, industrial, or harsh-environment deployments — the enclosure lacks IP-rated sealing, and the plastic components aren't UV-stabilized. In multi-tenant colocation facilities, one common deployment pattern places one enclosure per customer cabinet row, with MPO trunks home-running to the meet-me room and LC breakouts patching directly into tenant Top-of-Rack switches. This keeps cross-connects within the customer's physical footprint and simplifies decommissioning when tenants churn. Panduit's gray finish is deliberately neutral for multi-tenant spaces; colored enclosures can imply reserved or restricted status, complicating MAC workflows.
This enclosure integrates into Panduit's broader Unified Physical Infrastructure strategy, where physical-layer components (enclosures, cassettes, patch panels, cable) share common mounting dimensions, color coding, and labeling schemes. For installations following TIA-606-C or ISO/IEC 14763 datacenter cabling standards, the FLEX-ZRFEG supports zone-distribution models that minimize horizontal cable lengths, reduce patching errors, and improve documentation accuracy. It's a fit for new datacenter builds with planned raised-floor zones, or retrofit projects replacing legacy underfloor splice boxes with modern MPO-based architectures.
