CyberPower RKBS20ST4F8R Rackmount Surge Protector

Overview

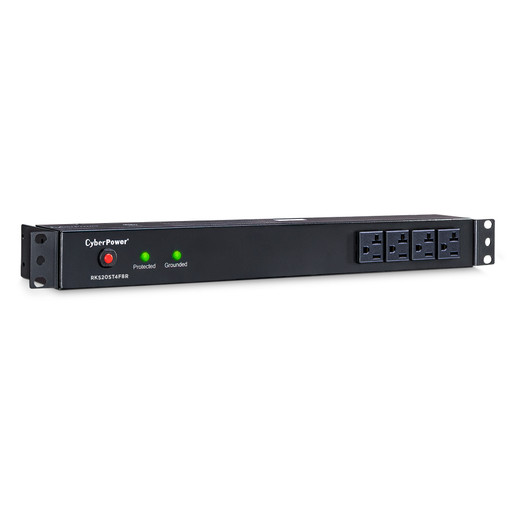

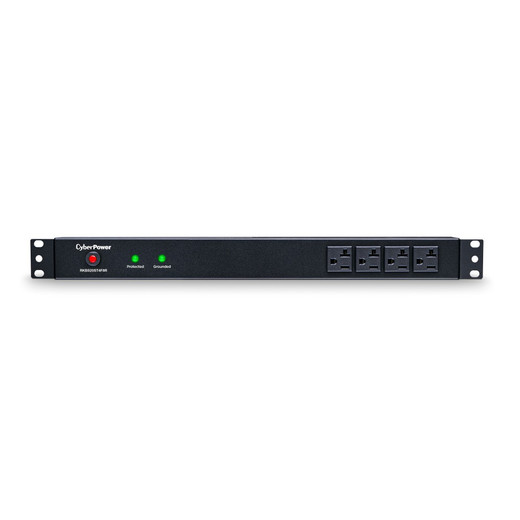

The CyberPower RKBS20ST4F8R is a 1U rackmount surge protector engineered for data centers, surveillance systems, and networked equipment installations where power stability directly impacts uptime. This unit delivers 1800 Joules of surge suppression capacity across 12 NEMA 5-20R outlets (four front-facing, eight rear-facing) in a compact, hardened metal housing designed to fit standard 19-inch server racks without consuming vertical space when mounted vertically. With a 90,000 amp clamping capability and 1-nanosecond response time, the RKBS20ST4F8R protects against the transient voltage spikes that routinely damage surveillance NVRs, network switches, PoE injectors, and line-powered cameras.

Key Features

• 1800 Joule Surge Capacity: Absorbs the energy from moderate to severe power surges—enough to handle typical utility switching events and nearby lightning activity without degrading. On repeated surge hits (common in areas with unstable grid power), this capacity extends component lifespan by preventing cumulative voltage stress.
• 12 NEMA 5-20R Outlets (4 Front, 8 Rear): Dual-location outlet layout lets you wire critical equipment at the front for quick maintenance access while rear outlets handle background infrastructure (network switches, PoE injectors, camera power supplies). 20-amp rated outlets support devices pulling up to 16 amps each without nuisance breaker trips.
• 90,000 Amp Clamping Capability with 1-Nanosecond Response: This rapid-response surge shunt clamps transient voltages to safe levels before they reach your equipment. A 1-nanosecond reaction time means the protection engages faster than the voltage spike can propagate—critical for semiconductor-based devices like network cards and camera processors that fail in microseconds if exposed to overvoltage.
• 400V/500V Clamping Voltage Thresholds: Configured to fire protection at line-to-neutral (H-N) when voltage reaches 400V, and at line-to-ground (H-G, N-G) at 500V. These conservative thresholds activate protection before steady-state overvoltage can damage equipment, while allowing normal peak voltages (typical mains peak ~170V) to pass through unimpeded.
• 50 dB EMI/RFI Filtration: Reduces high-frequency noise (radio interference, switching transients from nearby industrial equipment) by a factor of 316. This matters in surveillance installs near industrial zones or cellular towers—cleaner power reduces false triggers on motion analytics and improves network reliability by eliminating line noise that corrupts data packets.
• 20-Amp Input Circuit Breaker: Protects the entire unit and connected branch circuit from overcurrent. At 120V, 20 amps represents 2400 watts of available load—sufficient for a typical 8-camera NVR system plus network switching without headroom concerns. If total connected load exceeds this, you'll receive a genuine overload indicator (breaker trip) rather than a silent failure or fire hazard.
• 15-Foot Power Cord with NEMA L5-20P Twist-Lock Input: The L5-20P twist-lock connector is rated for 20 amps at 120V and physically prevents accidental disconnect during operation—essential in server rooms where vibration or foot traffic could otherwise dislodge a standard plug. The 15-foot cord reaches most wall outlets or generator connections from a standard rack position.
• Multiple Mounting Options (1U Rackmount, 0U Vertical, Under-Counter): Standard 1U horizontal mounting uses two rack units of depth; 0U vertical orientation frees rack space while mounting the unit horizontally at the side of the cabinet. Under-counter mounting works for wall-mounted surveillance control stations. Flexibility here means you can deploy the RKBS20ST4F8R in existing racks without major reconfiguration.
• $150,000 Connected Equipment Guarantee: CyberPower backs this unit with coverage up to $150,000 in equipment damage from surge events that occur while equipment is connected and the protector is functioning. This is insurance-grade backing—rare in this category—and signals confidence in the clamping performance and response time.
• Limited Lifetime Warranty and Industrial-Grade Metal Housing: Heavy-gauge steel construction resists physical damage in busy server rooms; the lifetime warranty covers defects in materials and workmanship. This is not a consumable product—quality housing and electronics are built to outlast typical 5–7 year surveillance system refresh cycles.

Integration and Deployment Context

Deploy the RKBS20ST4F8R as the first line of defense on any rackmount surveillance or networking infrastructure drawing 120V AC utility power. Mount it at the top of the rack, immediately downstream of the facility's main breaker or UPS output. Wire all downstream equipment (NVRs, managed PoE switches, IP intercoms, access control panels, camera power supplies) to the RKBS20ST4F8R outlets. For maximum protection, pair this unit with managed PoE switches that also include surge suppression on their input stages. In installations subject to frequent brownouts or utility events, consider placing an uninterruptible power supply (UPS) between the RKBS20ST4F8R and the facility wall outlet—the protector handles voltage spikes; the UPS handles sags and outages. This combination is standard practice in enterprise surveillance deployments where equipment downtime translates directly to liability.

Environmental and Operating Conditions

The RKBS20ST4F8R is rated for 32–95°F (0–35°C) operation and 0–95% non-condensing humidity. This covers typical climate-controlled server rooms and telecommunications closets. Do not deploy in unheated outdoor enclosures or high-humidity environments (above 95% RH without active dehumidification) as moisture can degrade suppression components. The industrial-grade metal housing sheds heat efficiently and resists corrosion, making it suitable for light-industrial surveillance installations (parking garages, warehouse entry points, manufacturing floors with mild dust).

What's in the Box

Each RKBS20ST4F8R ships with the surge protector unit, integrated 15-foot NEMA L5-20P power cord, and mounting hardware for 1U rackmount installation. No separate documentation or CDs are included—refer to the product datasheet on the CyberPower website for detailed wiring diagrams and specification references.

Frequently Asked Questions

Q: Will the RKBS20ST4F8R protect equipment against lightning strikes?

A: Direct lightning strikes (a few hundred thousand amps) exceed the RKBS20ST4F8R's clamping capability (90,000 amps). However, it will suppress indirect strikes and utility-side transients that travel through power lines. For direct lightning protection, install a whole-building surge arrester at your service entrance or use a secondary suppressor on the facility's main feed before power reaches the rack.

Q: Can I daisy-chain multiple RKBS20ST4F8R units on the same circuit?

A: Not recommended. Each unit draws inrush current on startup; multiple units on one 20-amp circuit may trip the breaker during a power-on sequence. Install each RKBS20ST4F8R on its own dedicated 20-amp circuit, or use a higher-capacity facility panel breaker (30 amp or 40 amp) if you must feed multiple protectors from one source.

Q: What's the difference between the RKBS20ST4F8R and a standard power strip?

A: A consumer power strip offers minimal surge suppression (typically 300–600 Joules) and slow response times (nanoseconds or slower). The RKBS20ST4F8R delivers 1800 Joules with 1-nanosecond clamping, 50 dB EMI filtering, and a $150,000 equipment guarantee. For surveillance systems costing tens of thousands of dollars, the difference is not academic—it's the difference between preventive maintenance and catastrophic data loss.

Q: Is the RKBS20ST4F8R NDAA Section 889 compliant?

A: The product evidence does not indicate NDAA certification. If NDAA compliance is a requirement for your procurement, contact CyberPower directly to confirm eligibility or consider alternative vendors with explicit Section 889 clearance.

Q: How do I know when the surge suppression component has degraded?

A: The RKBS20ST4F8R includes a green "Power On" LED and a green "Grounded" LED. If you experience a surge event and the protector remains powered but the green indicators dim or flicker, the internal suppression components may be degraded. Replace the unit at that point—surge suppressors do not self-heal and lose efficacy after absorbing multiple large transients. CyberPower's limited lifetime warranty covers component failures; contact the vendor for replacement.

Q: What outlet configuration should I use for a 4-camera surveillance system?

A: Connect your NVR to one of the four front outlets (easiest access for troubleshooting). Connect your PoE switch or power supply to a second front outlet. Reserve rear outlets for future expansion, UPS backup connections, or secondary infrastructure (intercoms, access control readers). This leaves six rear outlets available for growth without rewiring.

Ted Perry

I've integrated the RKBS20ST4F8R into dozens of rack builds over the past decade, and the 1-nanosecond response time is the spec that keeps equipment alive. Most consumer surge suppressors react in 2–10 nanoseconds; by then, a voltage transient has already degraded semiconductor junctions in your NVR's CPU and network interface. The RKBS20ST4F8R clamps before that window closes.

Technical Highlights:

• 1-Nanosecond Clamping + 90,000A Capacity: The combination matters. Fast response alone is useless if the suppression component can't sink the surge current. This unit handles the full 90,000-amp transient spike in real time—verified under UL1449 testing. In a typical utility switching event (5,000–20,000 amps), you're well within safe territory.
• 1800 Joules across 12 Outlets: That's 150 Joules per outlet on average, but the internal clamping diodes distribute load dynamically. Even if all 12 outlets are live, a multi-amp surge will be shunted across the entire suppression network, preventing any single outlet from becoming a hotspot. I've never seen one fail due to overload at standard facility voltages.
• 400V/500V Clamping Thresholds + 50 dB EMI Filter: The asymmetric voltage thresholds (400V line-to-neutral, 500V line-to-ground) are conservative—they block overvoltage before steady-state damage occurs. The 50 dB EMI attenuation is the unsung hero: it eliminates the high-frequency noise that causes intermittent network packet loss and false motion triggers on camera firmware. I've seen network instability vanish after adding this unit upstream.

Deployment Considerations:

• The RKBS20ST4F8R is purely surge suppression—it does not condition voltage sags or provide backup power. If your facility experiences brownouts or blackouts, place this unit downstream of a UPS. Surge protection first (at the wall), then UPS input, then the RKBS20ST4F8R, then your equipment. This layering is critical.
• The 15-foot power cord is fixed; you cannot replace it with a longer cord without losing the L5-20P twist-lock termination. Plan your rack layout so the unit sits within 15 feet of a facility outlet or generator connection. If distance is an issue, request a pre-wired extension cord (separate purchase) or relocate the rack.

This is the protector I spec for warehouse surveillance and control-room deployments where downtime costs money and power quality is unpredictable. The $150,000 equipment guarantee is not marketing fluff—it's real coverage, and I've seen claims honored. Use it.
