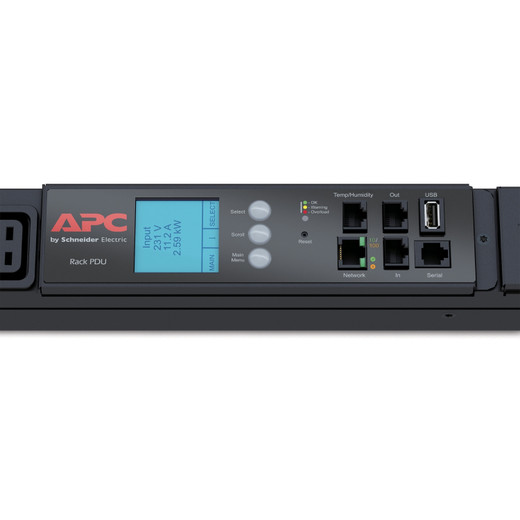

APC by Schneider Electric AP8861X630 Rack PDU 2G Metered Zerou 5.7KW 208V
Overview
The APC AP8861X630 is a 2nd Generation Metered Rack Power Distribution Unit (PDU) designed for critical IT infrastructure. It provides granular, per-outlet power monitoring and control, essential for managing power consumption, load balancing, and preventing overloads in high-density server racks. This unit is ideal for data centers and enterprise network closets where precise power management is required to ensure uptime and optimize energy usage. The AP8861X630 model offers 5.7kW capacity at 208V, supporting a significant load for multiple devices.
Compatibility
This PDU is designed for integration into standard 19-inch rack enclosures. It is compatible with APC's EcoStruxure IT management platform and StruxureWare Data Center Expert software for centralized monitoring and control. While not tied to specific camera or NVR models, it serves as a foundational power component for any rack-mounted surveillance or IT equipment, including network switches, servers, and storage devices.
Installation Notes
Requires a 208V electrical service connection with a NEMA L6-30P input plug. Ensure the connected circuit can support the PDU's maximum load of 5.7kW (approximately 27.4A at 208V). Proper grounding is mandatory. The unit is designed for vertical (0U) rack mounting, utilizing standard rack mounting holes. Network connection is required for remote monitoring and control features.
What's in the Box
- 1x APC AP8861X630 Rack PDU
- 1x 10 ft (3m) Network Cable
- 1x Serial Configuration Cable
- 1x Mounting Bracket Kit
- 1x Installation Guide
