StarTech PEX10GSFP4I Quad-Port 10GbE SFP+ PCIe Network Adapter

Overview

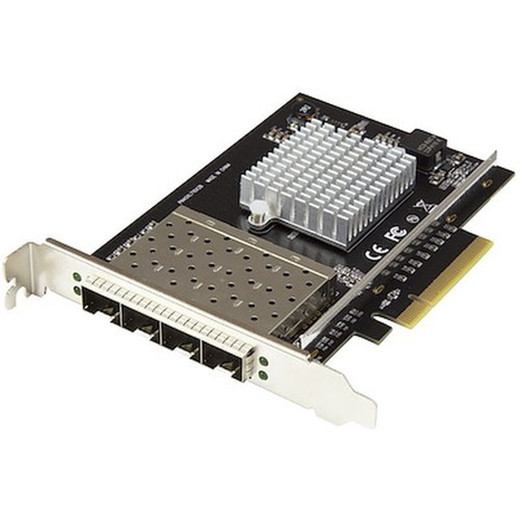

The StarTech PEX10GSFP4I is a quad-port 10 Gigabit Ethernet network adapter built on the Intel XL710 chipset and seated in a PCIe 3.0 x8 slot. It delivers four independent SFP+ ports on a single standard-profile card — a practical option for servers, NVR appliances, or workstations where you need to consolidate high-bandwidth video ingest, network aggregation, or storage traffic without burning multiple PCIe slots. With a 20 Gbps maximum data transfer rate shared across the four ports and support for MSA-compliant SFP+ transceivers and Direct Attach Copper (DAC) cables, this card fits neatly into environments already running 10G fiber or DAC infrastructure.

The Intel XL710 is a well-documented enterprise NIC chipset with broad driver support across Windows and Linux distributions, which reduces integration friction in mixed OS environments and simplifies deployment in virtualization hosts or dedicated network adapter deployments where driver stability matters.

Key Features

• Intel XL710 Chipset: The XL710 is a production-grade enterprise NIC silicon with mature, stable drivers for both Windows and Linux. In surveillance or server deployments, chipset maturity means fewer driver-related headaches during OS upgrades or kernel updates — not a trivial concern on long-lifecycle NVR builds.
• Four SFP+ Ports on One Card: Adding four independent 10GbE uplinks via a single PCIe slot preserves remaining slots for storage controllers or additional adapters. Each port handles up to 10 Gbps, and the card's 20 Gbps aggregate bus bandwidth means two ports running near line rate won't saturate the PCIe lane — though all four ports pushing simultaneous full 10G loads will share that 20 Gbps ceiling, so plan traffic patterns accordingly.
• PCIe 3.0 Interface: PCIe Rev 3.0 compliance ensures the card seats correctly in both Gen 3 and backward-compatible Gen 2 slots. The x8 electrical interface provides enough lane bandwidth for high-throughput multi-stream workloads without requiring a full x16 slot.
• MSA-Compliant SFP+ and DAC Support: The card accepts any MSA-standard SFP+ transceiver — SR (short-range multimode fiber), LR (single-mode long-range), or DAC cables — giving you flexibility to match the physical layer to your rack topology. If you're connecting across a data center row on existing OM3/OM4 fiber, SR modules drop right in. Short in-rack connections are cheaper with DAC.
• 9K Jumbo Frame Support: Jumbo frames reduce CPU overhead on large data transfers by allowing bigger payloads per packet. For NVR-to-storage or camera-to-server video streams pushing continuous high-bitrate feeds, enabling 9K MTU on both ends of the link measurably reduces CPU interrupt load — provided your switch infrastructure also supports jumbo frames end-to-end.
• IEEE 802.3ad Link Aggregation: If your switch supports LACP, you can bond two or more ports for redundancy or additional throughput. In a video surveillance backplane scenario, this means you can maintain recording continuity through a single link failure without complex failover scripting.
• IEEE 802.1Q VLAN Tagging: Hardware-level VLAN support means the card can segment traffic — isolating camera VLAN traffic from management or storage networks — without requiring a separate NIC per network segment. Relevant in environments where PCI-DSS or network segmentation policy drives the architecture.
• Standard Profile Form Factor: At 5.5 in x 3.9 in, the card fits standard ATX and similar full-height server chassis. The 0.6 in width means it occupies a single slot with no adjacent slot interference. Low-profile bracket compatibility is not confirmed in evidence — verify before installing in 1U short-depth servers.
• Operating Temperature 5°C to 50°C: Designed for conditioned server room or IT closet environments. This is not a ruggedized card — deployments in unconditioned spaces (non-climate-controlled wiring closets, warehouse edge servers) need to confirm ambient temperatures stay within range, particularly in summer months.
• Windows and Linux OS Support: Intel XL710 drivers are included in modern Linux kernels (i40e module) and available via Windows Update or Intel's download center. This matters for NVR appliances running custom Linux builds — driver availability in the target kernel version should be confirmed before purchase.

Integration & Compatibility

The PEX10GSFP4I connects via PCIe 3.0 and accepts MSA-compliant SFP+ modules and DAC cables — it does not ship with transceivers, so factor that into your BOM. For surveillance network backbones, pair with a 10 Gigabit managed switch that supports 802.3ad LACP and jumbo frames to get full value from the card's feature set. Jumbo frame benefits are only realized when the entire path — NIC, switch, and receiving endpoint — is configured for matching MTU. The card supports IEEE 802.3ae (10GbE), 802.3ad (LACP), 802.3x (flow control), and 802.1Q (VLANs), covering the standard feature checklist for enterprise LAN integration. Review your network infrastructure planning guide for switch pairing recommendations when building high-density camera backplanes. For NVR and video server builds, the card integrates with any platform that supports standard PCIe 3.0 slots and runs compatible Windows or Linux OS versions — consult Intel's i40e driver compatibility matrix for specific kernel version support on Linux deployments.

Frequently Asked Questions

Q: What transceivers or cables does the PEX10GSFP4I support?

A: The card supports MSA-compliant SFP+ transceivers and Direct Attach Copper (DAC) cables. Transceivers are not included — you will need to source MSA-standard SR, LR, or DAC modules separately to match your physical layer infrastructure.

Q: Does the PEX10GSFP4I work in a low-profile server chassis?

A: The card ships in standard profile form factor (5.5 in x 3.9 in). Low-profile bracket compatibility is not confirmed in the available evidence. Verify with StarTech directly before installing in 1U short-depth or low-profile chassis.

Q: What is the maximum aggregate bandwidth across all four ports?

A: The card has a 20 Gbps maximum data transfer rate across the PCIe interface. Each port supports 10 Gbps individually, but all four ports running simultaneously at full line rate will share that 20 Gbps PCIe ceiling. Plan traffic accordingly for high-concurrency workloads.

Q: What operating systems are supported?

A: The PEX10GSFP4I supports Windows and Linux. The Intel XL710 chipset uses the i40e driver module, which is included in modern Linux kernels. Confirm driver availability for your specific kernel version before deploying on custom or older Linux builds.

Q: What is the warranty on this card?

A: StarTech provides a 2-year warranty on the PEX10GSFP4I.

Q: Does the card support jumbo frames?

A: Yes. The PEX10GSFP4I supports jumbo frames up to 9K MTU, which reduces CPU interrupt overhead on large continuous data transfers. Both ends of the link — including your switch — must be configured for matching MTU to realize the benefit.

James Everett

When I look at the PEX10GSFP4I for a surveillance or enterprise network build, the detail that shapes my recommendation most is the 20 Gbps PCIe 3.0 bus ceiling shared across four 10GbE ports. That arithmetic matters — if you're planning to run all four ports near line rate simultaneously, you're oversubscribing the PCIe interface at roughly 2:1. For most video backplane applications, where ports carry bursty rather than sustained full-rate traffic, that's not a problem. For storage replication or iSCSI workloads that genuinely push each port to capacity, it's worth modeling your peak traffic before committing to this card as a primary data mover.

Technical Highlights:

• Intel XL710 Chipset: Mature silicon with production-grade i40e driver support in the Linux kernel — meaningful for NVR appliances on long-lifecycle OS builds where driver instability would interrupt recording.
• 9K Jumbo Frame Support: When the full path supports matching MTU, 9K jumbo frames reduce per-packet CPU overhead on continuous high-bitrate streams — directly relevant to multi-channel IP camera recording servers.
• 802.3ad LACP: Port bonding across two or more of the four SFP+ ports provides link redundancy without software failover scripting — a straightforward way to protect recording continuity against a single uplink failure.

Deployment Considerations:

• The card does not ship with SFP+ transceivers — budget for MSA-compliant SR modules or DAC cables separately, and confirm transceiver compatibility with your switch vendor before ordering, particularly if the switch enforces vendor-locked module lists.
• Operating temperature ceiling is 50°C — this is a conditioned-environment card. Unconditioned IDF closets or warehouse edge server locations that see high ambient temperatures in summer need thermal validation before deploying this hardware.

The PEX10GSFP4I is a well-suited pick for multi-camera NVR server builds or video surveillance server aggregation points where you need four 10GbE uplinks on a single PCIe slot in a climate-controlled data room — specifically where Intel chipset driver stability across Linux kernel updates is a non-negotiable operational requirement.
