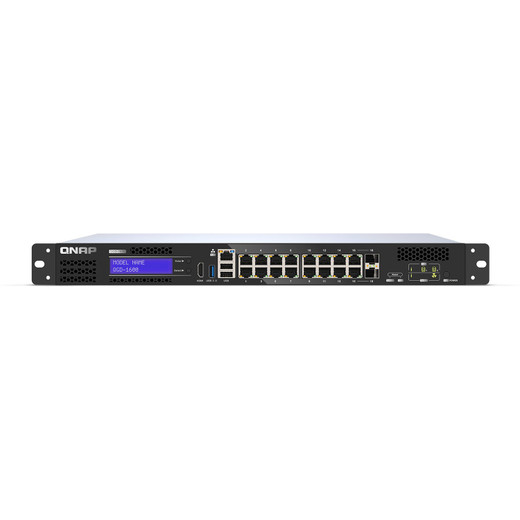

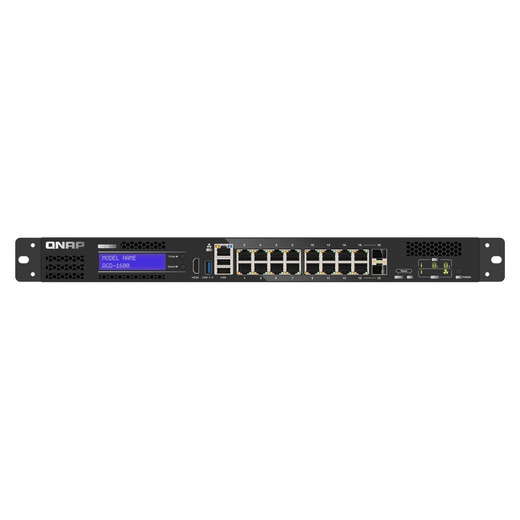

QNAP QGD-1600-8G-US 16-Port Smart Edge PoE Switch with Onboard VM Engine
Overview
The QNAP QGD-1600-8G-US is a web-managed Gigabit PoE switch with a built-in Intel Celeron J4115 quad-core processor — making it the only switch in its class capable of running virtual machines directly on the device. For network switches in surveillance and edge deployments, this changes the architecture equation: instead of a dedicated NVR or edge server sitting next to your switch, the QGD-1600-8G-US can host both roles in a single 1U chassis. If your site already runs IP cameras and you are looking to consolidate infrastructure, this is the product to evaluate.
Key Features
- 16 PoE ports across all ports: All 16 ports deliver PoE power, including 14 standard 1GbE RJ45 ports and 2 combo SFP/RJ45 ports. Every camera or access point on the network gets power from the switch — no separate PoE injectors needed, which simplifies cable runs and reduces failure points.
- Intel Celeron J4115 quad-core at 1.8 GHz (burst to 2.5 GHz): This is not a purpose-built ASIC — it is a general-purpose 64-bit x86 processor running at datacenter-grade efficiency for edge compute. That burst headroom to 2.5 GHz matters when analytics or VM workloads spike during motion events. See the full QNAP catalog for NAS and NVR options that pair with this switch.
- VM support on a switch: The onboard x86 architecture enables QNAP's QVS virtualization environment. You can run a lightweight NVR application, a VPN gateway, or an access control server on the switch itself — reducing the total device count in a small branch or remote site.
- 2 x 1GbE internal network bandwidth: Uplink capacity is 2 Gbps, which supports aggregated camera streams from all 16 ports without congestion. Plan accordingly: 16 cameras at 8 Mbps each = 128 Mbps aggregate, well within the uplink envelope.
- Web-managed interface: No CLI required for initial setup. Port-level PoE control, VLAN segmentation, and QoS configuration are all available through the browser-based management console — practical for integrators who need to commission a site quickly without scripting.
- 25W per-port PoE output: At 25W per port, the switch handles standard IP cameras and mid-range PTZ units without upsize. Check your highest-draw device first — if any camera exceeds 25W (e.g., high-speed PTZ with integrated heater), plan a supplemental injector for that port.
Integration and Compatibility
The QGD-1600-8G-US (often searched as QGD 1600 8G US) is designed to integrate with QNAP's QVR Pro NVR software, which can be deployed as a VM on the switch itself or on a separate network video recorder. The 64-bit x86 architecture means it can run standard Linux-based applications in QNAP's container and virtualization environment. For PoE planning guidance across a multi-switch deployment, see the PoE switch category. Pair with a QNAP NVR if you need dedicated storage and recording capacity beyond what the onboard environment handles.
Frequently Asked Questions
Q: Can the QGD-1600-8G-US run an NVR application natively without a separate server?
A: Yes. The onboard Intel Celeron J4115 processor supports QNAP's virtualization environment, allowing QVR Pro or other QNAP applications to run directly on the switch. This eliminates the need for a standalone NVR in small to mid-size deployments.
Q: How many cameras can I connect to the QGD-1600-8G-US?
A: Up to 16 cameras via the 14 RJ45 PoE ports and 2 SFP/RJ45 combo ports. All 16 ports deliver PoE power, so no external injectors are required.
Q: What is the PoE wattage per port on the QGD-1600-8G-US?
A: The switch delivers 25W per PoE port. This covers most standard IP cameras and access points. Devices requiring more than 25W will need a separate PoE injector.
Q: Does the QGD-1600-8G-US require a separate management server?
A: No. Management is handled through a web browser interface — no dedicated management server or CLI setup is required for standard commissioning tasks including VLANs, QoS, and per-port PoE control.
Q: What CPU does the QGD-1600-8G-US use, and why does it matter for a switch?
A: It uses an Intel Celeron J4115 quad-core processor running at 1.8 GHz with burst to 2.5 GHz. Unlike a standard switch ASIC, this is a full x86 processor that enables virtual machine execution directly on the device — the key differentiator of the QGD-1600 platform.
The QGD-1600-8G-US is genuinely different from anything else in the managed switch segment — the Intel Celeron J4115 running at 1.8 GHz (burst 2.5 GHz) means you are deploying x86 compute at the edge, not just a forwarding ASIC. I have used this platform in small retail branch deployments where the customer needed both PoE switching and local NVR recording but had no rack space or budget for two separate devices.
Technical Highlights:
- All-port PoE (16/16): Every port, including both SFP/RJ45 combo uplinks, delivers PoE — a layout advantage over switches that leave combo ports unpowered. You get full flexibility on port assignment without having to track which ports are PoE-capable.
- 2 x 1GbE internal bandwidth: With 16 cameras aggregate, even at 8 Mbps per camera that is 128 Mbps — well within the 2 Gbps uplink envelope. The internal bandwidth is not the bottleneck; your NVR write speed will be.
- 64-bit x86 architecture: This is the spec that separates the QGD-1600 from every commodity PoE switch. Running Linux VMs, container workloads, or QNAP QVR Pro directly on the switch removes a full device from the BOM for sites under 16 cameras.
Deployment Considerations:
- Plan VM resource allocation before commissioning: the J4115 handles light NVR workloads well, but if you stack QVR Pro plus analytics containers plus VLAN management simultaneously, test under load before handing off to the customer.
- At 25W per port, the switch is not rated for high-draw PTZ cameras with integrated deicers or high-speed motors that can pull 30W or more — confirm your camera PoE class before deployment or provision an injector for those ports.
Best fit: small-to-mid surveillance deployments — retail branches, school wings, warehouse entry points — where collapsing the NVR and switch into a single chassis saves rack space and simplifies the support model. Not the right call if your camera count will grow past 16 or if your analytics workloads demand dedicated server-grade compute.
