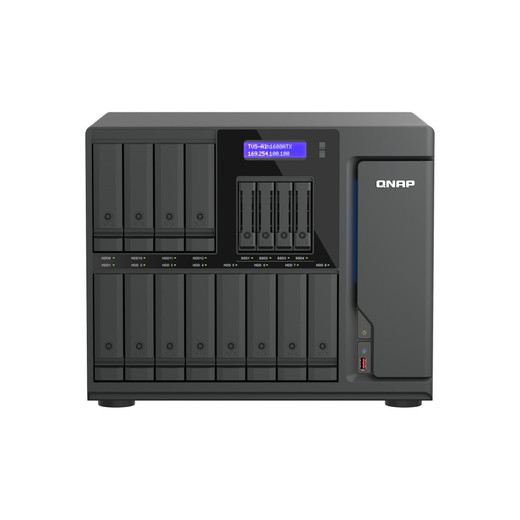

QNAP 16-Bay Quts Hero Nas (12 X 3.5 - TVS-AIH1688ATX-U7-32G-US

QNAP TVS-AIH1688ATX-U7-32G-US 16-Bay AI-Ready Hybrid NAS

Overview

The QNAP TVS-AIH1688ATX-U7-32G-US is a 16-bay hybrid NAS built around Intel's Core Ultra 7 processor — a platform that brings on-chip AI acceleration directly into your storage and surveillance infrastructure. With 12x 3.5" SATA bays plus 4x U.2 NVMe slots, it handles both high-capacity spinning storage and fast NVMe tiering in a single chassis. If you're running a multi-camera surveillance deployment, AI-driven video analytics, or a combined NVR/NAS workload, this unit is designed to carry that weight without offloading compute to a separate server. Browse the full QNAP NAS and storage catalog to compare models across the lineup.

Key Features

• Intel Core Ultra 7 — 20 cores, 5.3GHz: The 20-core (8P+12E) architecture handles simultaneous transcoding, indexing, and AI inference without contention. At 5.3GHz peak clock, latency-sensitive workloads like live analytics don't wait on background I/O tasks.
• 36 TOPS Neural Processing Unit: The integrated NPU delivers 36 trillion operations per second for on-device AI tasks — object detection, facial recognition, and motion classification run locally without a GPU add-in card or cloud dependency. This matters in air-gapped or bandwidth-constrained deployments.
• 12x 3.5" SATA + 4x U.2 NVMe Hybrid Storage: The hybrid bay layout lets you pair high-density spinning drives for long-term video retention with U.2 NVMe for hot metadata, caching, or active-recording tiers. You get the economics of HDD at scale with NVMe speed where it counts. Pair with a network video recorder or deploy this unit as the recording target itself.
• 32GB ECC UDIMM DDR5, expandable to 192GB: ECC memory catches single-bit errors silently — critical when this box is the primary storage target for 24/7 camera feeds. The 192GB ceiling gives you room to scale as channel counts grow or AI workloads expand.
• 2x 2.5GbE + 2x 10GBASE-T: Four network ports with two 10GbE uplinks means you can aggregate camera ingress and admin/backup traffic on separate interfaces without a dedicated switch upgrade for most deployments. The 10GbE ports handle high-throughput multi-stream recording without frame drops. Review your PoE switch capacity when planning camera-side bandwidth.
• 3x PCIe Gen 4 Expansion Slots: Three open PCIe Gen 4 slots let you add additional NVMe, 25GbE/100GbE networking, or GPU cards as requirements shift — the hardware doesn't lock you into today's spec. For large-scale builds, this is the difference between a NAS and a compute node.
• 64-bit x86 Architecture: Full x86 means you can run containerized applications, VMs, or surveillance VMS software directly on the unit using QNAP's QTS Hero or virtualization stack — reducing the total hardware footprint for mid-scale deployments.

Integration and Compatibility

The TVS-AIH1688ATX-U7-32G-US runs QTS Hero, QNAP's ZFS-based operating system, which supports block-level snapshots, inline deduplication, and native iSCSI/NFS/SMB targets. This makes it a viable backend for NVR appliances using iSCSI, or a standalone recording target for ONVIF-compatible cameras through QNAP's Surveillance Station application. The PCIe Gen 4 slots accept QNAP-validated expansion cards for 25GbE networking or additional U.2/M.2 NVMe — confirm compatibility against QNAP's QVL before purchasing expansion hardware. See the NAS storage category for compatible drive and expansion options.

Frequently Asked Questions

Q: What is the maximum storage capacity of the TVS-AIH1688ATX-U7-32G-US?

A: The unit supports 12x 3.5" SATA drives plus 4x U.2 NVMe SSDs. Maximum raw capacity depends on the drives you install — with 20TB SATA HDDs across all 12 bays that's 240TB raw before RAID overhead, plus additional NVMe in the U.2 slots.

Q: Can the TVS-AIH1688ATX-U7-32G-US run AI video analytics locally without a separate GPU?

A: Yes. The Intel Core Ultra 7 includes an integrated NPU rated at 36 TOPS, which is sufficient for on-device AI inference tasks like object detection and motion classification through QNAP's AI-capable applications — no discrete GPU required for those workloads.

Q: How much memory does the TVS-AIH1688ATX-U7-32G-US ship with, and can it be upgraded?

A: It ships with 32GB ECC UDIMM DDR5. The maximum supported memory is 192GB (4x 48GB), giving substantial headroom for expanding VM workloads or AI application memory requirements.

Q: What network connectivity does this NAS provide?

A: The unit includes 2x 2.5GbE and 2x 10GBASE-T Ethernet ports built-in. Three PCIe Gen 4 slots are available for adding higher-speed networking cards (25GbE or 100GbE) as your infrastructure grows.

Q: Is the TVS-AIH1688ATX-U7-32G-US suitable as a primary NVR for a large camera deployment?

A: Yes, when paired with QNAP Surveillance Station it functions as a standalone NVR. The 36 TOPS NPU, 16-bay storage capacity, and 10GbE networking make it practical for high-channel-count deployments — exact camera channel limits depend on stream resolution, retention policy, and any AI analytics enabled per channel.

Jerry Tildsen

The TVS-AIH1688ATX-U7-32G-US sits in an interesting position: it's not just a NAS that happens to have a fast CPU — the Intel Core Ultra 7's 36 TOPS NPU changes the deployment calculus meaningfully. For integrators running QNAP Surveillance Station at scale, that on-chip inference means AI analytics don't compete with disk I/O for CPU cycles the way they do on older Celeron or Ryzen-based QNAP units.

Technical Highlights:

• 36 TOPS NPU: Handles object detection and AI classification locally — no cloud round-trip, no discrete GPU cost. Relevant for deployments where latency or data sovereignty rules out cloud AI services.
• ECC DDR5 with 192GB ceiling: The 32GB shipped config is conservative; ECC matters here because silent memory corruption on a 24/7 recording target can corrupt video evidence. The 192GB max gives runway for dense VM or container workloads co-located on the same chassis.
• Hybrid 12x SATA + 4x U.2 layout: U.2 NVMe for write-ahead cache or active-recording tier, SATA for bulk retention — this architecture avoids the bottleneck you hit when high-FPS streams and random metadata reads compete on a single HDD pool.

Deployment Considerations:

• The three PCIe Gen 4 slots are a genuine differentiator for future-proofing: plan your slot allocation early — 25GbE NIC, additional U.2 expansion, and any capture/encode cards will compete for the same three slots.
• At 5.3GHz peak with a 20-core load, thermal management in a rack enclosure matters — verify your rack airflow before deploying in a dense cabinet; this is not a low-TDP unit.

Best fit for enterprise physical security deployments — 50+ camera sites, mixed AI analytics and bulk retention, where the alternative would be a separate NVR appliance plus a compute server. The TVS-AIH1688ATX-U7-32G-US consolidates both roles into one chassis at a price point that makes the consolidation case straightforward.
