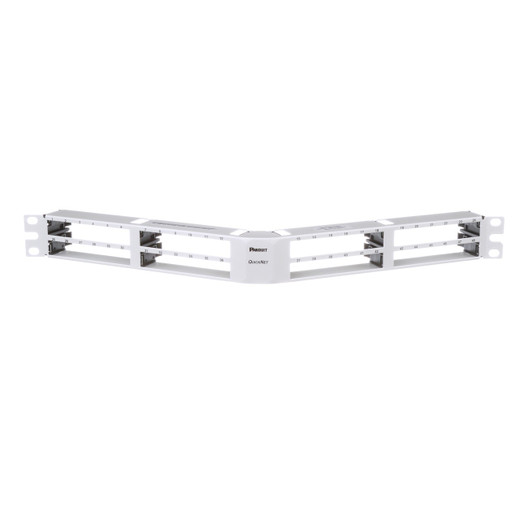

Panduit QAPP48HDWH QuickNet 48-Port Angled Patch Panel 1U White
Overview
The Panduit QAPP48HDWH is a 48-port angled Panduit QuickNet patch panel designed for structured copper cabling deployments where cable management and port density matter. Fitting in a single 1U rack space at 19 inches wide and 1.73 inches tall (43.9 mm), it terminates 48 copper connections without consuming excess rack real estate — a genuine consideration in dense IDF closets and security head-end racks where every U counts. The angled port orientation reduces strain on patch cords and keeps cable runs cleaner than straight-face panels, particularly in high-density rows where cord bundling becomes a maintenance headache.
Key Features
- 48 Ports in 1U (19" x 1.73"): Terminates a full 48-channel copper home-run in a single rack unit. For a 48-camera IP security deployment, that means one panel handles every structured cable drop — no spillover to a second unit, no wasted U-space above or below your NVR or network switch.
- Angled Port Design: The forward-angled port face directs patch cords downward and away from adjacent gear, reducing bend-radius violations and making individual port moves easier without disturbing neighboring connections. Standard in high-churn environments like security operations centers or IT closets serving multiple tenants.
- QuickNet™ Sub-Brand: Part of Panduit's QuickNet patch panel line, which is engineered for tool-assisted or tool-less keystone module installation depending on configuration. Consistent with the broader Panduit copper infrastructure ecosystem — compatible jack modules source directly from the same product family.
- White Finish: The white color coding is useful in multi-vendor or color-managed rack environments where panel color indicates network segment, floor, or building — a practical convention in enterprise and campus deployments with strict cable plant documentation standards.
- Standard 19" EIA Rack Width: Mounts in any EIA-310 compliant two-post or four-post rack or open-frame wall-mount enclosure. No proprietary mounting hardware required — installs with standard rack screws.
- Sold Individually, Carton of 10 Available: Package quantity of 1 means you can order exactly what a single rack requires. For larger rollouts, carton quantity of 10 supports multi-rack or multi-site procurement without overstocking.
Integration and Compatibility
The QAPP48HDWH is designed for use with Panduit QuickNet keystone jack modules (sold separately) — the panel accepts standard modular jack inserts consistent with the QuickNet copper-systems family. It integrates with PoE network switches and structured cabling runs serving IP cameras, access control readers, intercoms, and other network-attached security devices. At 19 inches wide and 1U tall, it fits standard EIA two-post telecom racks, four-post server racks, and wall-mount patch enclosures without modification.
Frequently Asked Questions
Q: How many rack units does the QAPP48HDWH occupy?
A: It occupies 1U (1.73 inches / 43.9 mm tall) in a standard 19-inch EIA rack.
Q: Does the QAPP48HDWH include keystone jack modules?
A: No. The panel is sold without jacks. QuickNet keystone modules are purchased separately and installed into the panel's 48 port positions.
Q: What rack width does the QAPP48HDWH require?
A: Standard 19-inch EIA-310 rack width — compatible with two-post, four-post, and wall-mount enclosures.
Q: Can the QAPP48HDWH be used in a color-coded cable plant?
A: Yes. The white finish supports color-managed rack environments where panel color denotes network segment or location. Panduit offers similar panels in other colors within the QuickNet family for mixed deployments.
Q: What cable category does the QAPP48HDWH support?
A: It is classified under Panduit's copper-systems category. The supported cable category depends on the keystone jack modules installed — match your jack module spec to your cable plant rating (Cat5e, Cat6, Cat6A, etc.).
The QAPP48HDWH is the panel I reach for when a security or IT closet needs to terminate 48 copper home-runs cleanly in a single U — the 19-inch by 1.73-inch footprint is tight enough that you can stack two in a half-height wall enclosure and still leave room for your switch and cable manager. The angled port face is the detail that matters most in dense installs: it keeps patch cord slack organized and reduces the chance of an accidental unplug when you're working adjacent ports.
Technical Highlights:
- 1U / 43.9 mm height: Full 48-port capacity without consuming the second rack unit — critical when your IDF cabinet is a 6U or 9U wall-mount with no room to spare.
- 19" / 482.6 mm EIA width: Drop-in fit for any standard rack without adapters. No compatibility guesswork on the mechanical side.
- Angled port orientation: Reduces patch cord bend stress at the port exit, which matters for Cat6A installations where minimum bend radius is tighter and cord diameter is larger.
Deployment Considerations:
- The panel ships without jack modules — budget and order QuickNet keystones separately before installation. A 48-port panel with no jacks on hand means a wasted site visit.
- White finish is an advantage in color-coded plants but a potential mismatch in all-black rack environments. Verify your site's color convention before ordering at scale — carton quantity is 10 units.
Best fit for enterprise security head-ends, multi-floor IDF closets, and campus copper infrastructure rollouts where the QAPP48HDWH anchors a clean, high-density patch field in a documented, color-managed cable plant.
