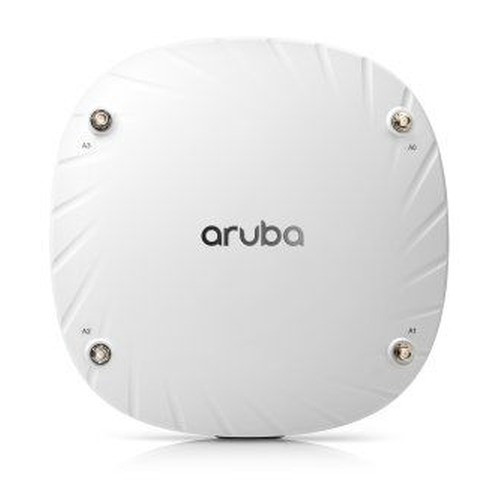

HPE Q9H58A Aruba AP-514 Wi-Fi 6 Unified Access Point

Overview

The HPE Aruba AP-514 (Q9H58A) is a dual-band Wi-Fi 6 (802.11ax) access point built for high-density enterprise environments — open-plan offices, university classrooms, conference centers, and healthcare floors where dozens of concurrent clients compete for airtime. Operating across both the 2.4GHz and 5GHz bands with aggregate throughput up to 1Gbps, it replaces aging 802.11ac deployments without requiring new cabling: a single PoE feed handles both data and power. For a full look at the HPE Aruba networking catalog, including complementary switching and controller platforms, browse the brand page.

Key Features

• Wi-Fi 6 (802.11ax) Dual-Band: 802.11ax raises spectral efficiency over 802.11ac by using OFDMA — the same channel slice is subdivided so multiple clients transmit simultaneously rather than waiting in queue. In dense rooms, this reduces the latency spikes that 802.11ac users experience when 30+ devices connect at once. Backward compatibility with 802.11a/b/g/n/ac means legacy devices join without reconfiguration.
• MU-MIMO with Beamforming: Multi-user MIMO lets the AP address multiple clients in the same time slot rather than round-robining transmissions. Beamforming steers the signal toward each client, improving effective signal-to-noise ratio at the edge of the 2,500 sq ft coverage footprint — particularly useful in spaces with cubicle partitions or concrete columns that scatter omnidirectional signal.
• Up to 150 Concurrent Clients: The AP-514 is rated for 150 associated devices — appropriate for a large conference room, a full classroom lab, or a warehouse floor with RF scanners, tablets, and handhelds all running simultaneously. Exceeding this count on a single AP is the fastest path to airtime starvation; plan one AP per 100–120 active clients for headroom.
• Single Gigabit Ethernet Uplink (RJ-45): One 1GbE port handles both data and PoE power. At 1Gbps aggregate Wi-Fi throughput, the uplink is the ceiling — this is an appropriate match for most office deployments, but if you're backhauling 802.11ax at full capacity with video-heavy traffic, a multi-gig uplink switch port would eliminate the bottleneck. Plan your PoE switch selection accordingly.
• PoE-Powered (802.3af/at compatible): Drawing power over the Ethernet run eliminates the need for a local outlet at every ceiling mount — a practical consideration in retrofit deployments where conduit runs to a ceiling tile are already in place but AC outlets are not. Confirm your switch or injector can supply adequate wattage before deployment.
• Omnidirectional Antenna, 5dBi Gain: The integrated antenna radiates in all directions from a ceiling-mounted position, covering approximately 2,500 sq ft in open-plan layouts. 5dBi is a conservative, reliable gain figure — expect real-world coverage to vary with ceiling height, wall materials, and client density. For narrow corridors or directional coverage zones, an external antenna model would be more appropriate.
• WPA3 and 802.1X Security: WPA3 is the current Wi-Fi security standard, offering stronger handshake protection (SAE) compared to WPA2-PSK. 802.1X integration means the AP can authenticate users against a RADIUS server — essential for enterprise deployments where every device needs identity-based network access control rather than a shared passphrase.
• Cloud Management and SNMP: Cloud management enables zero-touch provisioning for branch deployments — ship the AP to a remote site, plug it in, and it phones home to pull its configuration. SNMP support preserves compatibility with legacy NMS platforms like SolarWinds or PRTG that your NOC may already use for switch and router monitoring.
• 1.2GHz Quad-Core Processor, 512MB RAM: The on-board compute handles local packet forwarding, security processing (WPA3 handshakes, 802.1X supplicant interactions), and management plane operations without offloading to a controller. 512MB is adequate for the AP's firmware and client table at rated capacity — it's not a platform you'd push beyond its 150-client ceiling expecting headroom.

Integration and Compatibility

The Q9H58A integrates with network switching infrastructure via its standard RJ-45 Gigabit port and is managed through Aruba's cloud management platform or via SNMP for on-premises NMS integration. Security integration connects to RADIUS infrastructure for 802.1X — compatible with Microsoft NPS, Cisco ISE, and most enterprise AAA stacks. Compliance with FCC, CE, and RoHS means deployment is clear for US and EU environments without additional certification review. This AP is rated for indoor use only; for outdoor coverage zones, a different platform is required. Pair with network management tools that support SNMP traps for proactive alerting on client association thresholds or uplink degradation. See our wireless access point category for alternative density and coverage options across the Aruba portfolio.

Frequently Asked Questions

Q: Does the Q9H58A support Wi-Fi 6E (6GHz band)?

A: No. The AP-514 (Q9H58A) is a dual-band Wi-Fi 6 device operating on 2.4GHz and 5GHz only. Wi-Fi 6E adds the 6GHz band and is available on other models in the Aruba AP-5xx family. If 6GHz support is a requirement, evaluate the 6E variants in the same series.

Q: How many clients can the Q9H58A support simultaneously?

A: The AP-514 is rated for up to 150 associated devices. For best performance in dense environments, plan for one AP per 100–120 actively transmitting clients to maintain airtime headroom.

Q: What PoE standard does the Q9H58A require?

A: The AP-514 is powered via PoE over its RJ-45 Ethernet port. Verify your switch or midspan injector meets the AP's power draw requirements before deployment — consult the HPE Aruba datasheet for exact wattage draw to match against your switch's per-port PoE budget.

Q: Can the Q9H58A be managed without a hardware controller?

A: Yes. The AP-514 supports cloud management, allowing centralized configuration, monitoring, and firmware updates through Aruba's cloud platform without an on-premises controller. SNMP is also available for integration with existing NMS platforms.

Q: Is the Q9H58A suitable for outdoor installation?

A: No. The AP-514 is rated for indoor use only. For outdoor coverage requirements, a different Aruba AP model with an appropriate environmental rating is needed.

Q: Does the Q9H58A support mesh networking?

A: No. Mesh networking is not supported on the AP-514 (Q9H58A). It requires a wired Ethernet uplink for each unit.

Karl Wilson

The Q9H58A is the AP I reach for when a customer needs Wi-Fi 6 density without overbuilding the infrastructure budget. The 150-client ceiling and 2,500 sq ft coverage footprint are honest numbers for a ceiling-mounted indoor unit — they tell you exactly where this AP fits and where it doesn't. What I find most useful in practice is the combination of MU-MIMO, beamforming, and OFDMA working together: in a 60-person open office with BYOD laptops, tablets, and phones, that stack meaningfully reduces the airtime congestion that Wi-Fi 5 deployments struggle with.

Technical Highlights:

• OFDMA via 802.11ax: Unlike 802.11ac which allocates full channels to single clients, Wi-Fi 6's OFDMA subdivides channels for simultaneous multi-client transmissions — directly reducing queuing latency in high-client-count environments where every millisecond matters for voice and video applications.
• WPA3 + 802.1X: WPA3's SAE (Simultaneous Authentication of Equals) replaces the PSK handshake that was vulnerable to offline dictionary attacks. Combined with 802.1X RADIUS authentication, you get per-user identity enforcement at the wireless layer — a meaningful security upgrade over WPA2-Personal deployments.
• Quad-Core 1.2GHz SoC with 512MB RAM: Adequate for the AP's rated 150-client load and local forwarding mode without controller dependency — but this is not a platform with spare headroom. Don't plan to push it beyond rated capacity expecting graceful degradation; you'll see client association failures first.

Deployment Considerations:

• The single 1GbE uplink is the aggregate throughput ceiling for the entire AP — at full 1Gbps Wi-Fi 6 load with video-heavy clients, the uplink becomes the bottleneck. Pair with a switch port capable of multi-gig if your use case is bandwidth-intensive, or confirm that 1GbE is sufficient for your expected per-client traffic profile.
• No mesh support means every unit needs a home-run Ethernet cable. In retrofit deployments without existing ceiling cabling, budget for cable runs before spec'ing AP count — this is purely an infrastructure-constrained deployment.

This AP is the right call for a ground-up office build or university classroom refresh where structured cabling is already in place, client density runs 50–130 users per zone, and the team wants cloud-managed zero-touch provisioning without standing up a hardware controller on day one.
