Panduit N100X075C1M 1" Polyamide Label Cassette

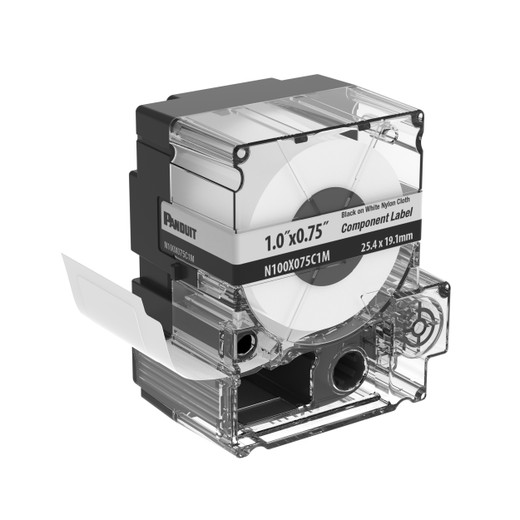

Panduit N100X075C1M PXE Polyamide Component Label Cassette

The Panduit N100X075C1M is a pre-loaded polyamide fabric label cassette engineered for permanent component identification in structured cabling, electrical panels, and equipment labeling. Designed exclusively for the Panduit MP300 portable thermal transfer printer, this cassette delivers black-on-white 1" × 0.75" (25.4mm × 19.05mm) labels with heat- and chemical-resistant polyamide substrate. Each cassette integrates both label material and matched ribbon in a single drop-in unit, eliminating ribbon threading and reducing printer jams during high-volume wire-marking jobs. Ships as a single cassette; carton quantity is 80 units for project staging.

Key Features

• Polyamide fabric substrate conforms to small-diameter conductors and irregular surfaces without cracking or peeling
• Aggressive adhesive system bonds to low-energy cable jackets (PVC, PE, nylon) and resists plasticizer migration
• Black pigmented resin ribbon fuses to fabric for permanent, smudge-proof legends rated to UL 969 label durability standards
• Pre-loaded cassette design pairs label stock with matching ribbon—no manual ribbon loading or waste from mismatched supplies
• 1" × 0.75" print area supports two-line legends for circuit ID + termination endpoint or asset tag + install date
• MP300 printer compatibility ensures correct tension, heat, and speed parameters for consistent print density across the roll

Polyamide label material is the default choice for electrical and low-voltage installations where labels must survive temperature cycling, UV exposure, and contact with cable-pulling lubricants or cleaning solvents. Unlike vinyl or paper, woven polyamide stretches slightly under tension, then locks in place without flagging or lifting at wire bundle tie points. The N100X075C1M's composite adhesive cures over 24 hours to develop full bond strength, meeting ANSI/TIA-606-C administration standard requirements for permanence. Installers working in mechanical rooms, telecom closets, or outdoor junction boxes rely on fabric labels to remain legible through commissioning, MEP punchlist walks, and annual inspections. The black-on-white color scheme provides maximum contrast under low-light conditions and photocopies cleanly for as-built documentation.

The cassette format streamlines printer setup on job sites where multiple technicians rotate through a shared MP300 unit. Instead of tracking separate ribbon spools and label rolls, the N100X075C1M arrives as a single assembly that snaps into the printer carriage, auto-aligning the print head and supply path. This eliminates the most common cause of field printer failures—ribbon installed backwards or label stock loaded with the adhesive side facing out. Each cassette yields approximately 2.5 meters of continuous label material, supporting roughly 100 individual 1" labels before reload. For projects requiring thousands of wire IDs (data center builds, industrial controls retrofits, access control risers), the 80-cassette carton quantity allows bulk purchasing at distributor pricing while keeping per-job inventory costs predictable. The cassette body is keyed to prevent installation of incompatible media in the MP300, protecting the thermal print head from damage caused by wrong material thickness or ribbon melt temperature.

Panduit's PXE cassette family uses serialized manufacturing to ensure every cassette in a production lot delivers identical print density and cure time. This consistency matters when labels printed six months apart must match for aesthetic uniformity in finished electrical rooms or when integrators need to prove compliance with contract specs that call out specific label materials by part number. The N100X075C1M's polyamide substrate is UL Recognized as a component under UL 969, meaning it meets flammability, adhesion, and print permanence criteria for use on UL-listed wire and cable assemblies. Integrators bidding T&M service contracts or design-build projects can reference this cassette by MPN in submittals, avoiding the ambiguity of generic "fabric label tape" line items that leave material selection to the installing contractor's discretion.
